Fire Fighting Foam Water Monitors

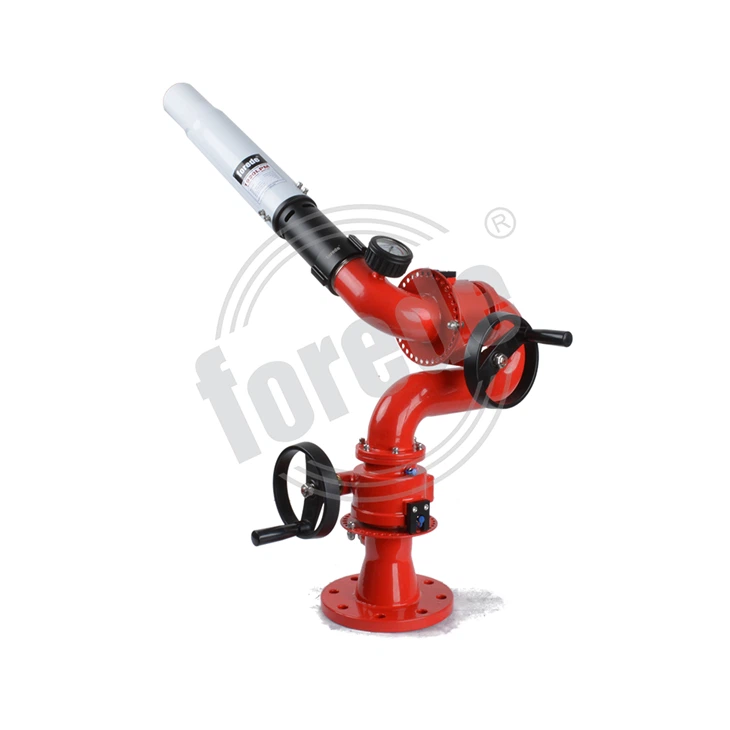

Fire fighting foam water monitors are manual control with two handwheels to change the vertical swing and horizontal rotation. Fire fighting foam water monitors are stainless steel construction with aluminium alloy nozzle,Handwheels are short and takes up little space, this can save little space for installing the water monitor for fire fighting system.
The max.foam jetting range is 60 meters, and the max. water jetting range is 65 meters.
Model | PL8/24-AH | PL8/32-AH | PL8/40-AH | PL10/48-AH | PL10/64-AH |
Flow Rate | 1440 LPM | 1920 LPM | 2400 LPM | 2880 LPM | 3840 LPM |
Working pressure | 8 bar | 8 bar | 8 bar | 10 bar | 10bar |
Foam Jetting Range | 40 m | 45 m | 50 m | 55 m | 60 m |
Water Jetting Range | 45 m | 50 m | 55 m | 60 m | 65 m |
Foam Expansion | ≧ 6 times | ≧ 6 times | ≧ 6 times | ≧ 6 times | ≧ 6 times |
Rotation Horizontally | 360° | 360° | 360° | 360° | 360° |
Elevate Vertically | -45° to +90° | -45° to +90° | -45° to +90° | -45° to +90° | -45° to +90° |
Inlet | DN100 (4") | DN100 (4") | DN100 (4") | DN100 (4") | DN100 (4") |
Outlet | 2.5" NH | 2.5" NH | 2.5" NH | 2.5" NH | 2.5" NH |
Main Product:
FAQ:
Q: How to mail the samples?
Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.
Q: What is a manual fire water monitor?
Manual fire water monitor is light weight to move and easy to operate. It can achieve reliable positioning locking. Manual fire water montior can spray water to extinguish the fire through straight stream or fog. It's the best fire extingushing equipment wit high performance and high quality. Manual operation means fire water monitor can vertically swing and horizontally rotate by handwheels and handles.
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Hot Tags: fire fighting foam water monitors, China, manufacturers, suppliers, wholesale, price, Water Monitor Fire Fighting, Open Spray Nozzle, Fire Water Monitor Fire Fighting, Foam Water Cannon, Foam Monitor Fire, Fire Truck Fire Monitor
1) 304 Stainless Steel construction;
2) Double Hand wheel Control;
3) Flow Rate: 24/32/40/48/64 LPS (optional);
4) Available for water and foam both;
5) 360° rotation horizontally;
6) -45° to +90° elevate vertically;
7) Flange standard: BS4504,ANSI150,GB,etc.
