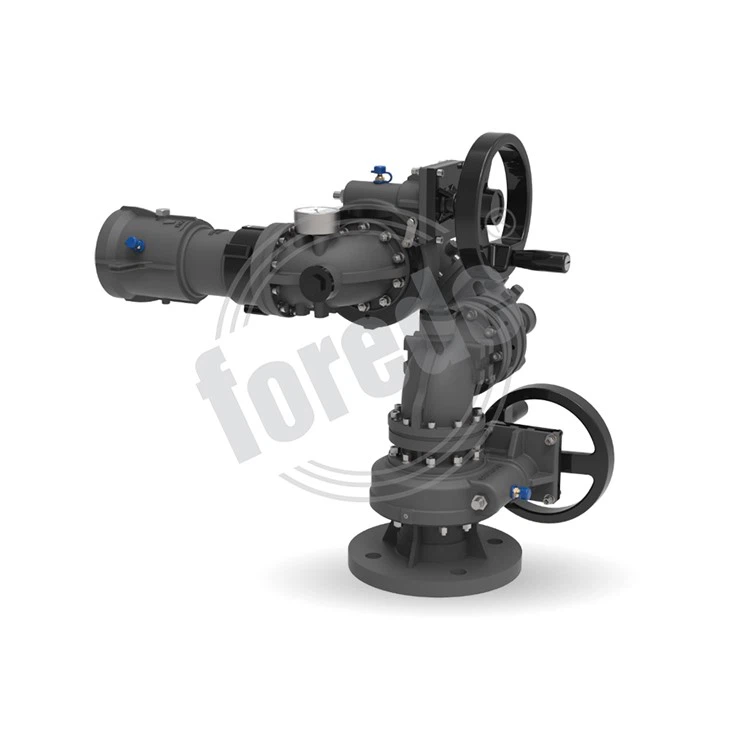

Constant Flow Fire Water Monitor
Constant flow fire water monitor is made of hard coated anodized aluminum alloy, with a constant fire monitor nozzle, the flow can jet accurately, and the flow rate max. can reach 2400LPM. Of course, the fire monitor nozzle can change into selectable type, and the flow rate are 1200LPM-1800LPM-2400LPM. Constant flow fire water monitor is operated by two handwheels, one handwheel is for horizontal rotation, another is for vertical swing, the move range is from -90°to +90°. The flange standard is varies and also can be customized.
Model Number | PS20A | PS30A | PS40A | PS20-40A |
Flow Rate | 1200 LPM | 1800 LPM | 2400 LPM | 1200-1800-2400 LPM Selectable |
Working Pressure | 8 Bar | 8 Bar | 8 Bar | 8 Bar |
Max. Reach @ 8 bar | 45 meters | 55 meters | 60 meters | 60 meters |
Max. Fog Angle | 120° | |||
Max Range Of Motion | -90° to +90° Vertically, 360° Rotation | |||
Waterway Size | 2.5"(65mm) | |||
Monitor Outlet | 2.5" (65mm) NH male thread | |||
Monitor Inlet | Flange 3" BS4504 is standard (thread inlet and other size is available) | |||
Material | Monitor & Nozzle - Hard coated anodized aluminium alloy Handwheel - Hard coated anodized aluminium alloy | |||
FAQ:
Q: How to mail the samples?
Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other
Q: Where is your company?
NO. 1,Building 29#,B Zone,Chenghui International Trading Market,Xiamei Town,Nan'an City,Fujian Province,China.
Q:What about the lead time?
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q:Do you have any MOQ limit?
A:For conventional products, Low MOQ, OEM products request 30-40days.
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Hot Tags: constant flow fire water monitor, China, manufacturers, suppliers, wholesale, price, Foam Monitor Fire, Elevated Fire Water Monitor, Manual Water Cannon, Manual Fire Water Monitor, Fire Sprinkler Nozzle, Water Monitor Fire Fighting
1) Aluminium alloy construction,hard coated anodized;
2) Flow Rate:Constant or Selectable 20 - 30 - 40 LPS;
3) Jetting Pattern: Straight stream,Fog;
4) 360° rotation horizontally;
5) -90° to +90° elevate vertically;
6) Flange standard: BS4504,ANSI150,GB,etc.
