Products Description

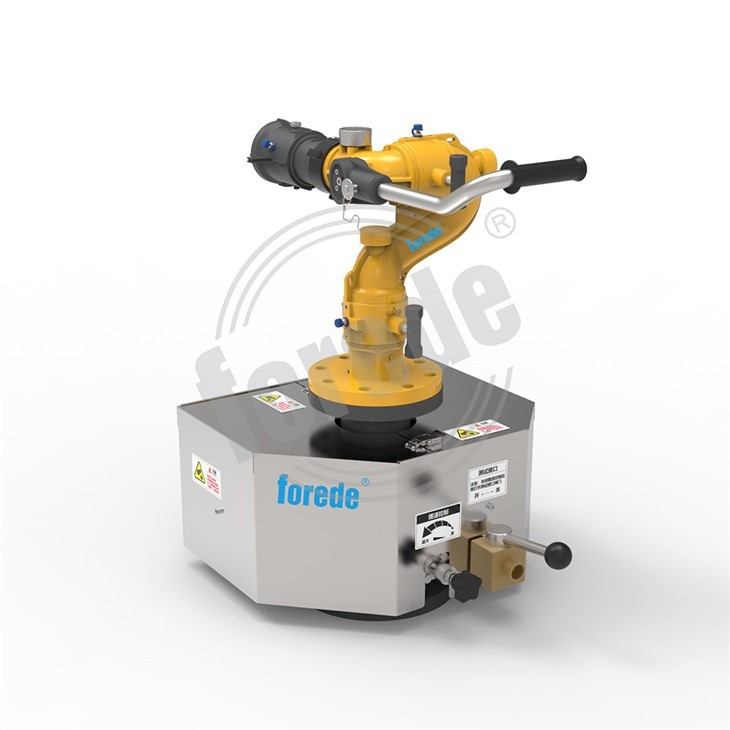

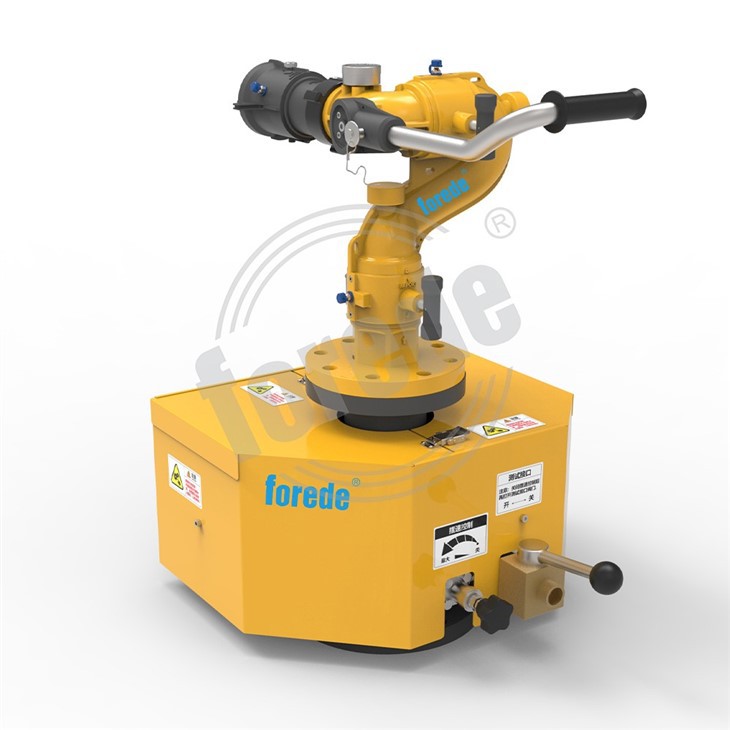

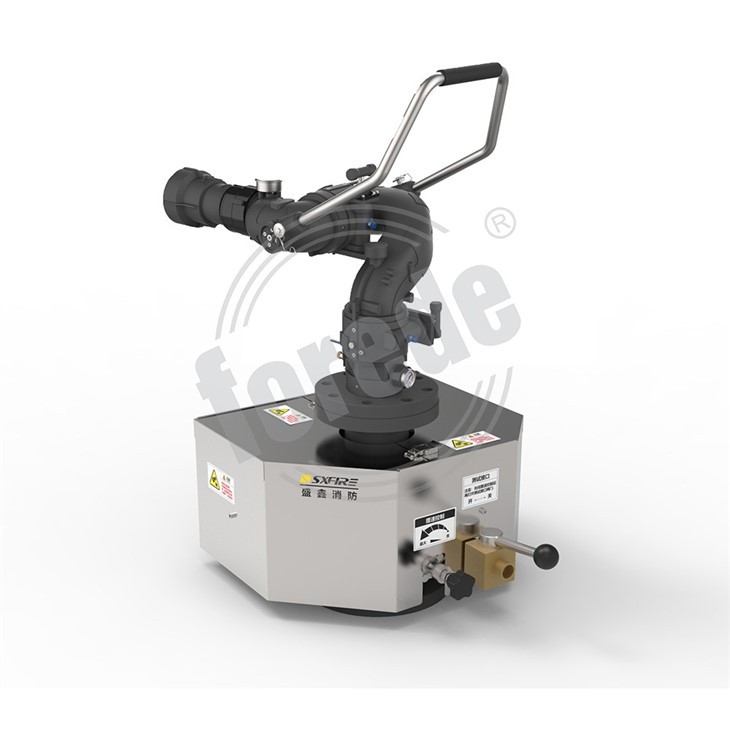

Fixed Oscillating Fire Monitors
The Fixed Oscillating Fire Monitor Flange Device is a state-of-the-art piece of equipment that is designed to help control fires in the most efficient and effective way possible. The OSC100-SX module is capable of delivering a flow rate of between 600 LPM and 4800 LPM, which makes it ideal for tackling fires of various sizes.
Products Detailed
Technical Parameter

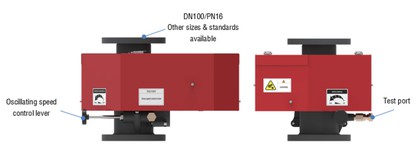

How to Use the Fixed Oscillating Flange Device?
To begin, the device should be set up properly and securely. This means ensuring that it is mounted in a stable location, and that it is tightened firmly to prevent any movement during operation. Once the device is mounted in place, the flange can be attached to the rotor and the tool can be powered on.
When using the fixed oscillating flange device, it is important to follow the recommended operating procedures. This means using the appropriate torque setting on the flange, based on the requirements of the job being performed. Be sure to also use the correct attachment size to match the size of the flange.
It is important to use protective equipment when operating the fixed oscillating flange device. This includes gloves to protect the hands, safety glasses to protect the eyes, and ear muffs to protect the ears from loud noises. Operators should keep a safe distance from the device while it is in operation, to avoid injury.
|
Model Number |
OSC100-SX |
|
Minimum W.Pressure |
2.8 bar |
|
Maximum W.Pressure |
14 bar |
|
Minimum Flow Rate |
600 LPM |
|
Maximum Flow Rate |
4800 LPM |
|
Oscillating Angle |
30° /60° /90° /120° /140° /165° Adjustable |
|
Oscillating Speed |
3 round per minute |
|
Inlet & Outlet |
4" DN100 BS4504 is standard,3" DN80 and other standard available |
|
Weight |
Approx. 25 KGS |
|
Material |
Body - Hard coated anodized aluminium alloy Cover - SS304 Stainless steel |
|
Color |
Red/Yellow/Natural stainless steel |
Application Area
Rescue Services
Residential Buildings
Industrial Settings
Public Space
Frequently Asked Questions
Q: Can I choose the specifications of the fire monitor?
Q: How to Use Fire Monitor?
Q: Can the Monitor Head of the Fire Monitor Be Replaced?
Q: What Are the Flange Standards for Fire Monitors?
