Products Description

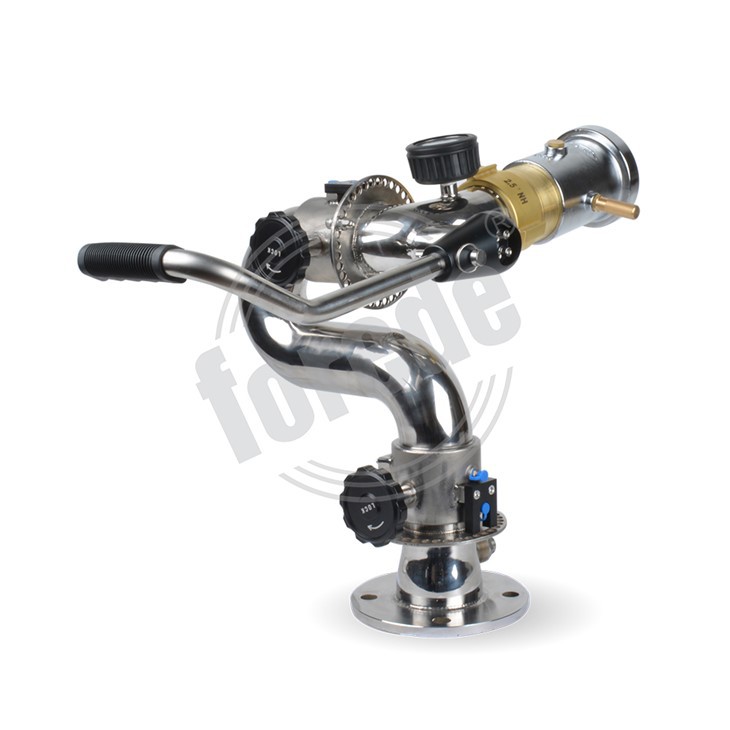

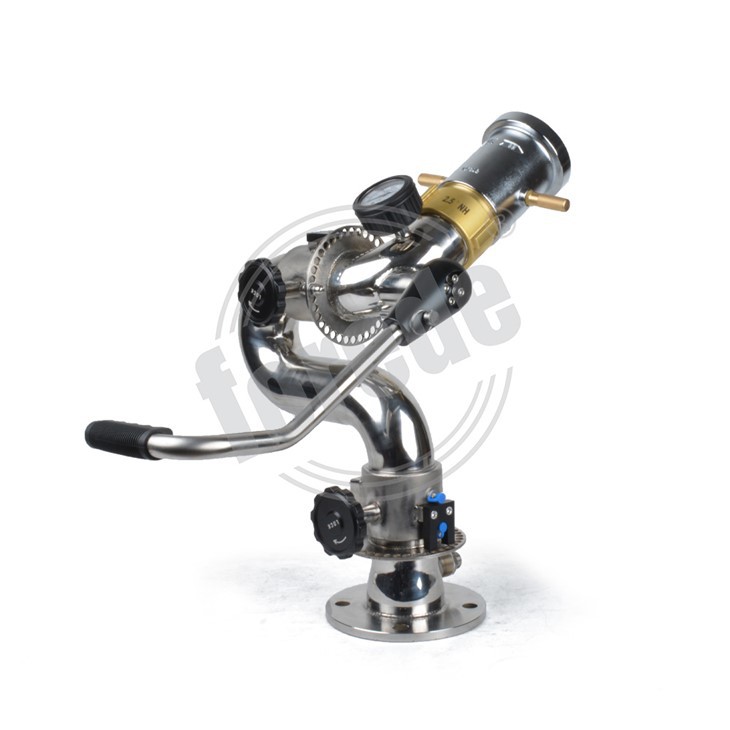

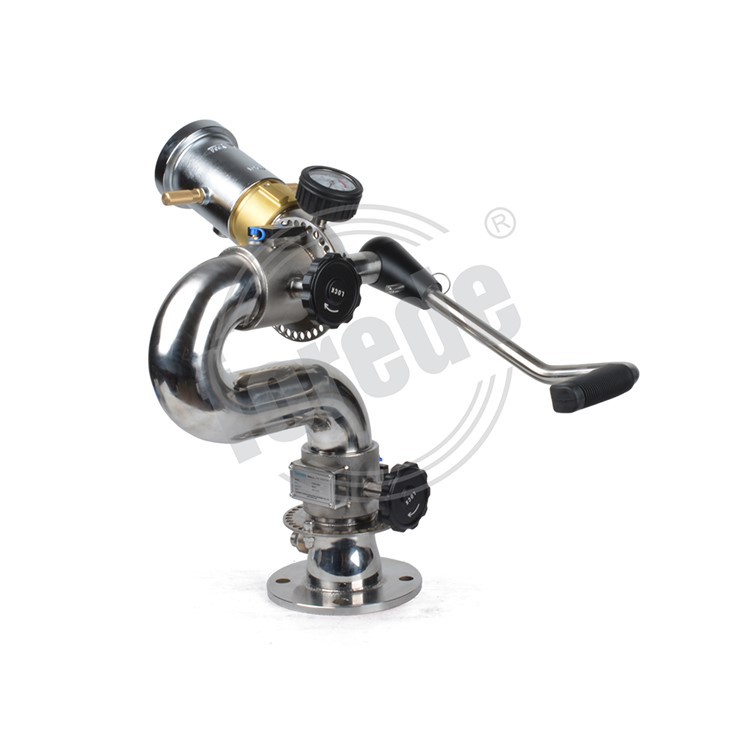

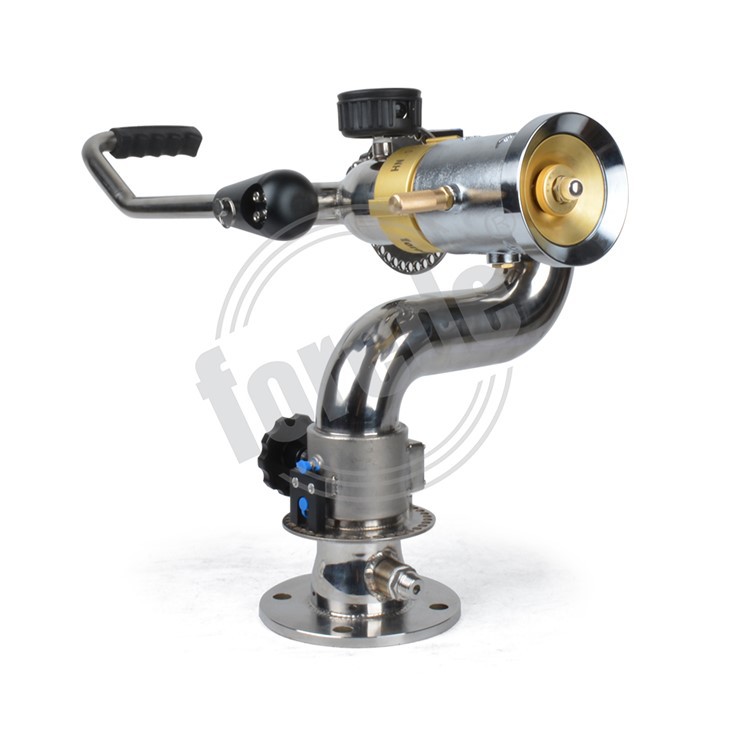

Fixed Manual Fire Monitors-Fixed Water Cannon
With a flow rate of 20-30-40, you can select the constant flow rate that you require for your particular firefighting situation. These monitors are also equipped with a jetting pattern for a straight stream and fog, making it easier to target specific areas where the fire is most intense.
Furthermore, the Fixed Manual Fire Monitors-Fixed Water Cannon Model PS10/W_T series is designed with different flange standards like BS4504, ANSI150, GB, etc. These standards ensure that the monitors can be easily installed on different structures, including buildings, ships, and industrial sites.
Technical Parameter
The main material of Fixed Manual Fire Monitors-Fixed Water Cannon: Auminium alloy construction, hard coated anodized What is it?
Fixed Manual Fire Monitors-Fixed Water Cannon is a type of equipment that is designed to extinguish fires in different environments. The main material used in its construction is aluminum alloy that is durable and can withstand extreme conditions. The aluminum alloy is also hard coated anodized to provide an additional layer of protection and longer lifespan.
The fixed water cannon is a popular type of fixed manual fire monitor that is designed to shoot large volumes of water at a high pressure to extinguish fires. The water cannon is commonly used in industries such as oil and gas, chemical manufacturing, and firefighting departments to control fires.
The aluminum alloy construction of Fixed Manual Fire Monitors-Fixed Water Cannon ensures that it is resistant to corrosion and other forms of degradation. This means that the equipment can be used in harsh environments without developing faults or becoming inefficient. The hard coated anodized material also helps to protect the equipment against damages from exposure to sunlight, rain, and other harsh weather elements.
|
Model |
TFS1.SF020 |
TFS1.SF030 |
TFS1.SF040 |
TFS1.SS040 |
|
Flow Rate |
1200LPM |
1800LPM |
2400LPM |
1200-1800-2400LPM |
|
Working Pressure |
0.8 MPa |
0.8 MPa |
0.8 MPa |
0.8 MPa |
|
Max Working Pressure |
1.6 MPa |
1.6 MPa |
1.6 MPa |
1.6 MPa |
|
Throw Range(water) |
≥ 50 m |
≥ 60 m |
≥ 65 m |
≥ 50-65 m |
|
Throw Range(foam) |
≥ 45 m |
≥ 55 m |
≥ 60 m |
≥ 45-60 m |
|
Horizontal Angle |
0°~330° (angle customized) |
|||
|
Elevation Angle |
-45°~+75° (angle customized) |
|||
|
Waterway Size |
2.5'' (DN65mm) |
|||
|
Outlet |
2.5'' NH |
|||
|
Inlet |
3''/4'' BS4504 PN16 Flange, others customized |
|||
Application Area
Rescue Services
Residential Buildings
Industrial Settings
Public Space
Frequently Asked Questions
Q: Can I choose the specifications of the fire monitor?
Q: How to Use Fire Monitor?
Q: Can the Monitor Head of the Fire Monitor Be Replaced?
Q: What Are the Flange Standards for Fire Monitors?
