Products Description

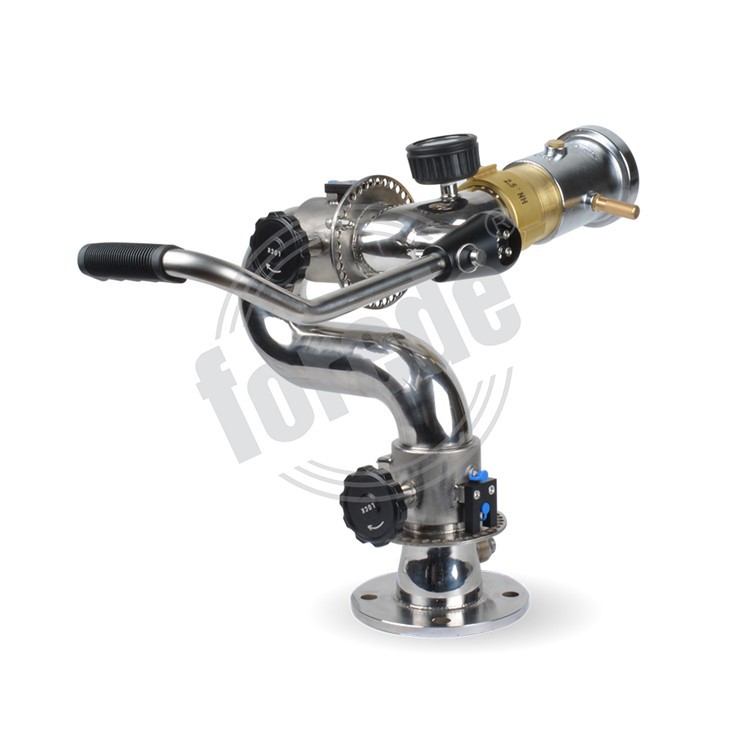

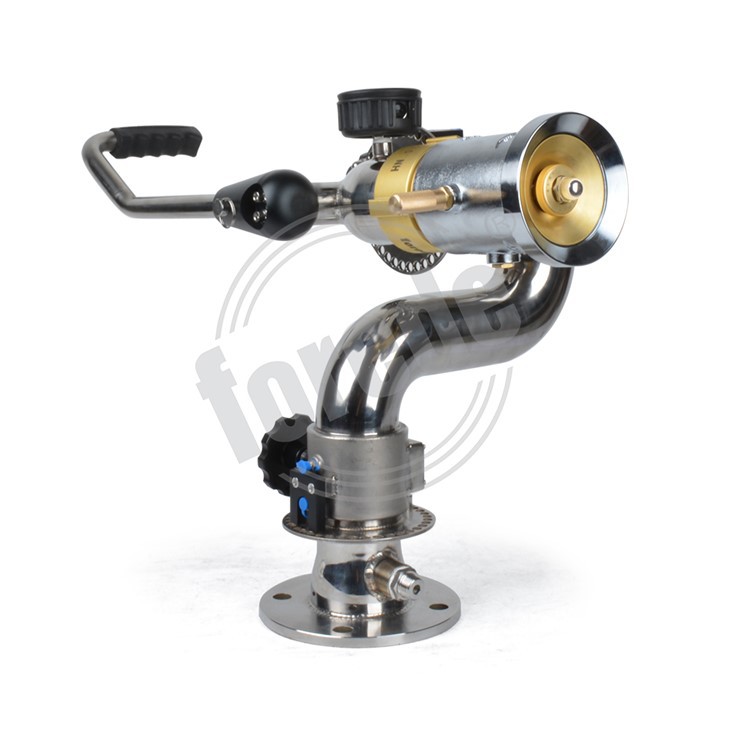

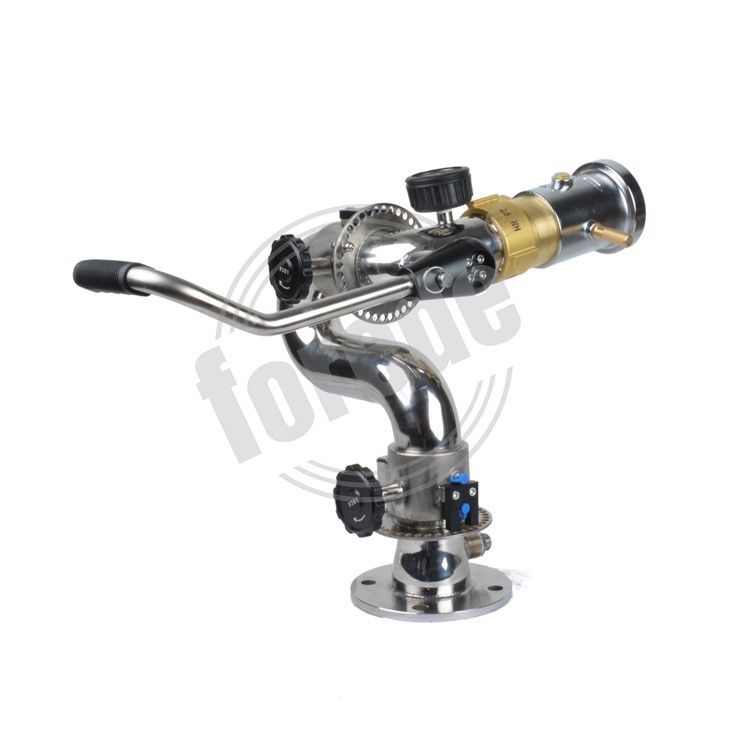

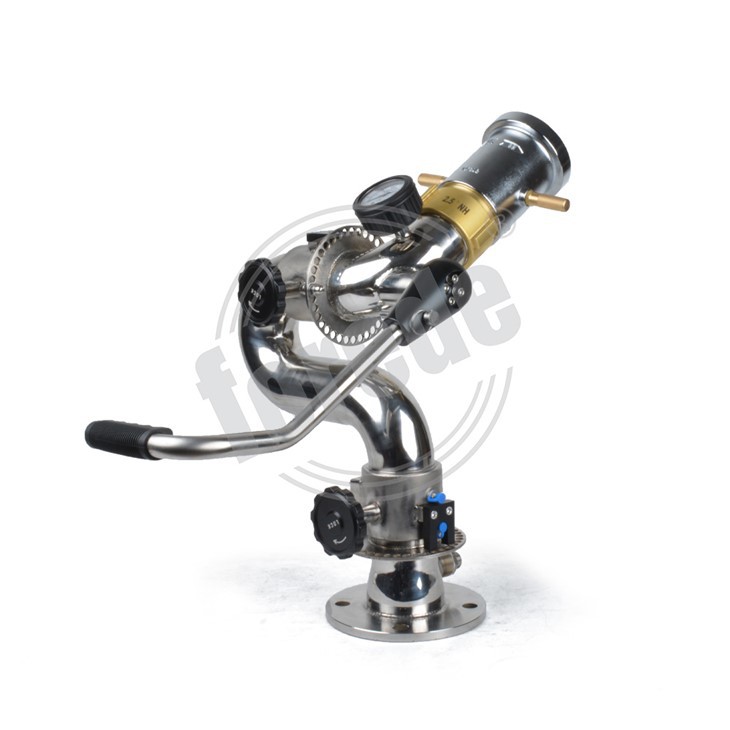

Fixed Manual Fire Monitors---Water Cannon On Fire Truck
This water cannon has a flow rate of 1800-2400-3000 LPM (Liters per Minute) and is equipped with an adjustable nozzle. It operates at a working pressure of 10 bar and has a maximum reach of 70 meters at 3000 LPM. The maximum fog angle of this water cannon is 120°.
This PS10/30-50W-T model has the ability to rotate 360°, and it can be adjusted vertically from -45° to +70°. The waterway size of this monitor is 2.5" (65mm) and the monitor outlet is 2.5" (65mm) NH male thread. The monitor inlet is flange 4" BS4504 as standard, but other sizes and standards are also available.
The material used to manufacture this water cannon is of high quality. Both the monitor and nozzle are made of aluminum alloy, which is not only lightweight but also durable. The tiller, that is the handle used to control the water cannon, is made of SS304 stainless steel, which is sturdy and resistant to wear and tear.
Products Detailed
factroy photos
Technical Parameter
What Is Fixed Manual Fire Monitors-Water Cannon On Fire Truck?
Fixed manual fire monitors, also known as water cannons, are an essential component of a fire truck. These devices are specifically designed to help firefighters tackle large fires quickly and efficiently. Water cannons are typically mounted onto the roof or front bumper of a fire truck and are operated using a manual control system.
One of the biggest advantages of fixed manual fire monitors is their ability to deliver a high volume of water to the fire. This makes them ideal for combating large fires where a huge amount of water is needed to extinguish the flames. They can also be used to create a water curtain to protect firefighters working on the front lines.
In addition to being effective at tackling large fires, fixed manual fire monitors are also incredibly versatile. They can be angled and adjusted to cover specific areas and can be used to reach otherwise inaccessible parts of a building or structure.
Another advantage of fixed manual fire monitors is their ease of use. They require minimal training and can be operated by a single firefighter, making them an essential tool in emergency situations.
|
Model Number |
PS10/30-50W-T |
|
Flow Rate |
1800-2400-3000 LPM Adjustable Nozzle |
|
Working Pressure |
10 Bar |
|
Max. Reach @ 10 bar |
70 meters @ 3000 LPM |
|
Max. Fog Angle |
120° |
|
Max Range Of Monitor |
-45° to +70° Vertically, 360° Rotation |
|
Waterway Size |
2.5"(65mm) |
|
Monitor Outlet |
2.5"(65mm) NH male thread |
|
Monitor Inlet |
Flange 4" BS4504 is standard ( other sizes & standards are available ) |
|
Material |
Monitor & Nozzle - aluminium alloy Tiller - SS304 Stainless steel |
Application Area
Rescue Services
Residential Buildings
Industrial Settings
Public Space
Frequently Asked Questions
Q: Can I choose the specifications of the fire monitor?
Q: How to Use Fire Monitor?
Q: Can the Monitor Head of the Fire Monitor Be Replaced?
Q: What Are the Flange Standards for Fire Monitors?
