Products Description

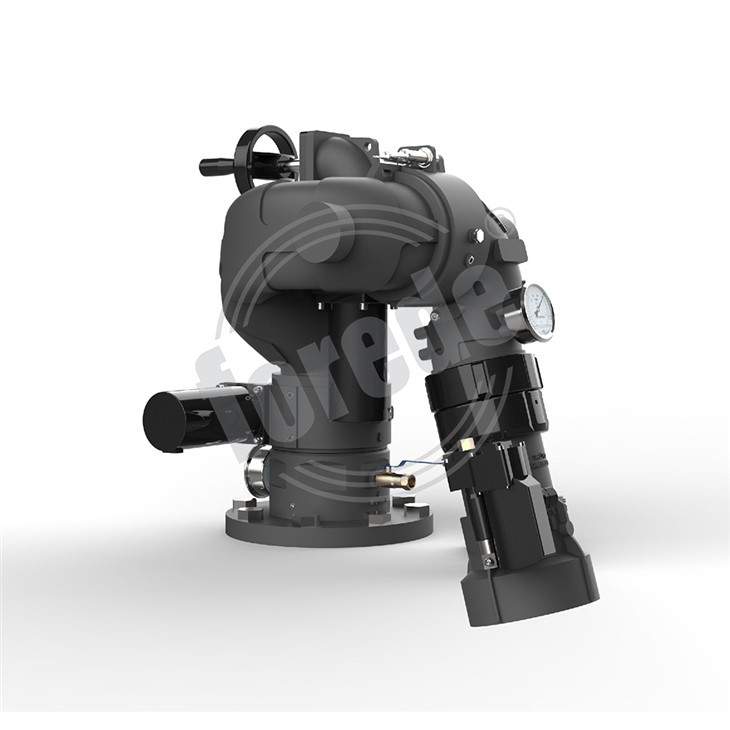

Aluminium Alloy Electric Fire Monitor PSKD-B Series
FOREDE ® PSKD10/W-B Series cannon/monitor is electric wired (or wireless remote control) DC drive, which fully realizes the advantages of remote separation between the operator and the fire scene, and can well protect the personal safety of the fire extinguishers.
PSKD10/W-B has the characteristics of stable and reliable performance, flexible operation, convenient maintenance, long range, light weight and small size. When spraying water jets, it can extinguish solid fires; when spraying blooming water mist, it can be used for cooling and fire fighting.
This product is suitable for being equipped with light fire trucks and fire boats. It can also be used as the front monitor of fire fighting vehicles to remove fire sources near the fire truck and effectively protect the safety of the fire truck. At the same time, the monitor can also be used as an industrial and mining enterprise and warehouse. Stationary fire extinguishing equipment in places such as, museums, exhibition halls, oil fields, storage tanks, etc.
Products Specification
|
Model Number
|
PSKD10/50W-B | PSKD10/60W-B | PSKD10/80W-B | PSKD10/100W-B |
|
Flow Rate
|
3000LPM | 3600LPM | 4800LPM | 6000LPM |
|
Working Pressure
|
10 Bar
|
10 Bar
|
10 Bar
|
12 Bar
|
|
Max. Reach @ 8 bar
|
70 meters
|
75 meters
|
85 meters
|
90 meters
|
|
Max. Fog Angle
|
120°
|
|||
|
Max Range Of Motion
|
-75° to +90° Vertically, 340° Rotation,other degree available
|
|||
|
Power Supply
|
DC 24V is standard
|
|||
|
Power Consumption
|
24V @ 7.5A
|
|||
|
Waterway Size
|
4" (100mm)
|
|||
|
Monitor Outlet
|
3.5" NH male thread
|
|||
|
Monitor Inlet
|
Flange 4" ANSI 150# is standard,other size and standard available
|
|||
|
Material
|
Monitor & Nozzle- Hard coated anodized aluminium alloy
|
|||
|
Control System
|
ICS-01 or VMCS-01
|
|||
FAQ
Q:Can you accept OEM?
A:Yes, we do customized design for our clients.
Q: What's the MOQ of your products?
A:Our MOQ is one (1) piece/set.
Q:What about the lead time?
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q:How long does it take to produce the product?
A: Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
