Products Description

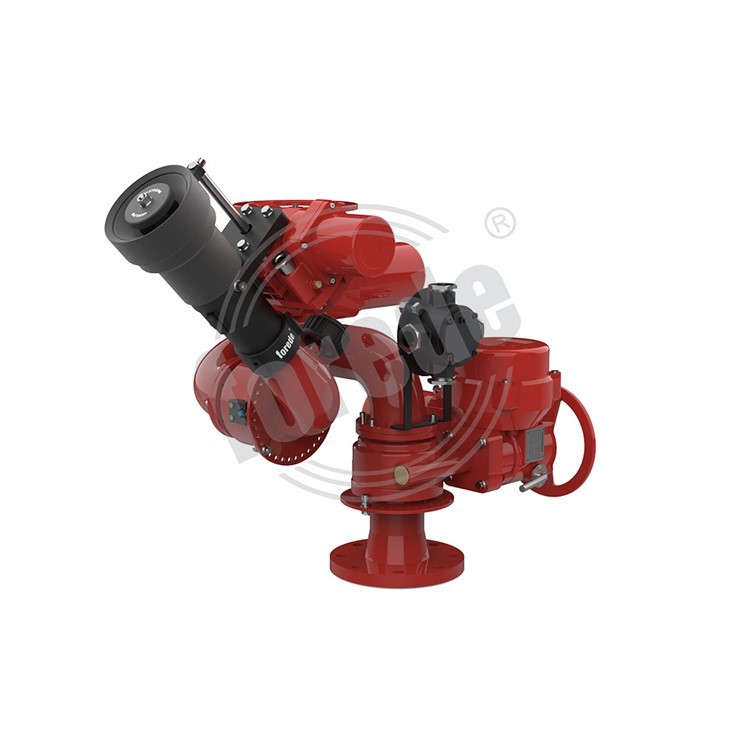

Explosion Proof Fixed Fire Water Monitor
Explosion-proof electronically controlled fire water monitors do not have the functions of automatic detection, tracking and positioning, and automatic fire extinguishing of automatic fire water monitors. In case of a fire on site, if the staff confirms that the fire is not serious, they can directly operate the wireless remote control to control the spray angle of the fire monitor, start the electric valve and fire pump, and implement fire extinguishing. Of course, if the remote control cannot be obtained in a faster time, there is another situation where the staff can directly manually operate the on-site control box on site to control the spraying angle of the fire monitor, start the electric valve and fire pump, and implement fire extinguishing;
Technical Parameter
|
Model Number
|
PSKD10/50WG-A | PSKD10/60WG-A | PSKD10/80WG-A |
|
Flow Rate
|
3000 LPM
|
3600 LPM
|
4500 LPM
|
|
Working Pressure
|
10 Bar
|
10 Bar
|
10 Bar
|
|
Max. Reach
|
70 meters
|
75 meters
|
80 meters
|
|
Max. Fog Angle
|
120°
|
||
|
Max Range Of Motion
|
-45° to +90° Vertically, 340° Rotation,other degree available
|
||
|
Power Supply
|
DC 24V is standard
|
||
|
Power Consumption
|
Max. 195W
|
||
|
Waterway Size
|
2.5"(65mm)
|
3"(80mm)
|
3"(80mm)
|
|
Monitor Outlet
|
2.5" (65mm) NH
|
||
|
Monitor Inlet
|
Flange 4" ANSI 150# is standard,other size and standard available
|
||
|
Material
|
Monitor - SS304 stainless steel is standard,SS316 is available
Nozzle - Hard coated anodized aluminium alloy
|
||
|
Control System
|
ICS-EX-01 or VMCS-01
|
||
FAQ
Common Problem
Q: What is an explosion-proof fire control cannon?
The explosion-proof fire-fighting electronically controlled cannon is a fire-fighting equipment that uses electronic control technology and has explosion-proof performance. It can perform fire-extinguishing operations such as water curtain and water mist.
Q: What are the characteristics of explosion-proof fire-fighting electronically controlled cannon?
The explosion-proof fire-fighting electronically controlled cannon has the characteristics of rapid fire extinguishing, simple operation, good explosion-proof performance, safety and reliability.
Q: What are the applicable places for explosion-proof fire-fighting electronically controlled monitors?
Explosion-proof fire-fighting electronically controlled cannons are suitable for fire-prone places such as chemical industry, oil depots, aerospace, and machinery.
Q: Do you have any MOQ limit?
For conventional products, Low MOQ, OEM products request 30-40days.
Factory View
Our factory & Warehouse
Recommend Product
Forede Main Product
Main Products
Nozzles
Monitors
Foam System
Fire Sprinkler
General Valves
Fire Hydrant
Contact Us
Hot Tags: explosion proof fixed fire water monitor, China, manufacturers, suppliers, wholesale, price, Early Suppression Fast Response Sprinklers, Explosion Fire Monitor, Foam Monitor Blabbermouth, Remote Operated Fire Water Monitors, Stainless Steel Water Cannon, Wireless Fire Water Monitor

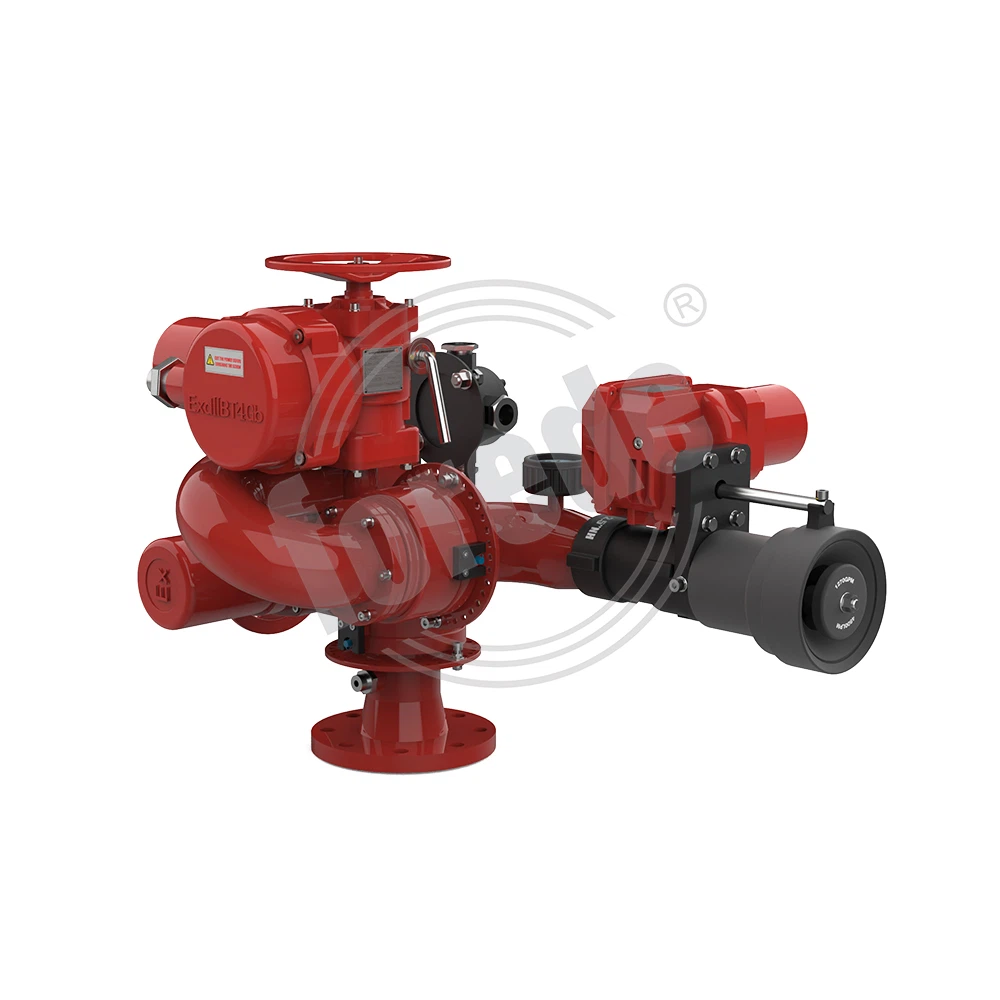

Forede Explosion Proof Electric Fire Monitor
Features:
* 304L stainless steel construction;
* Constant flow rate;
* Vertical travel of 135°,from -45°to +90°;
* 340°rotation horizontally;
* Electric control jetting Pattern: Straight stream,Fog;
* Explosion proof class IICT4;
* Power supply 220 V AC;
