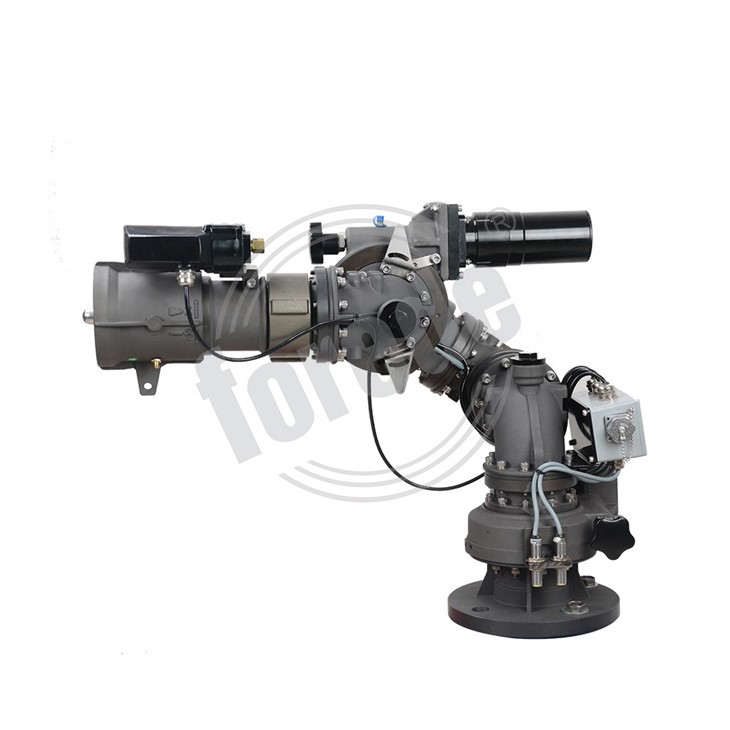

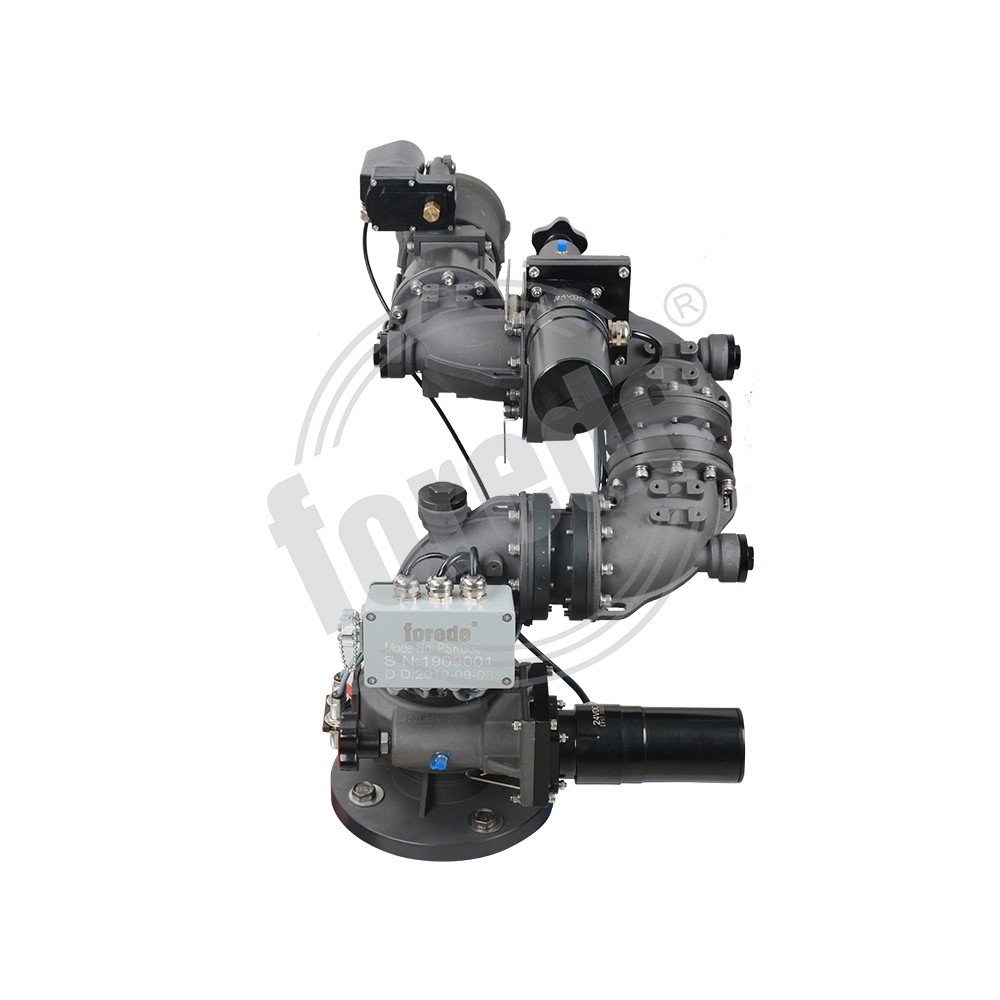

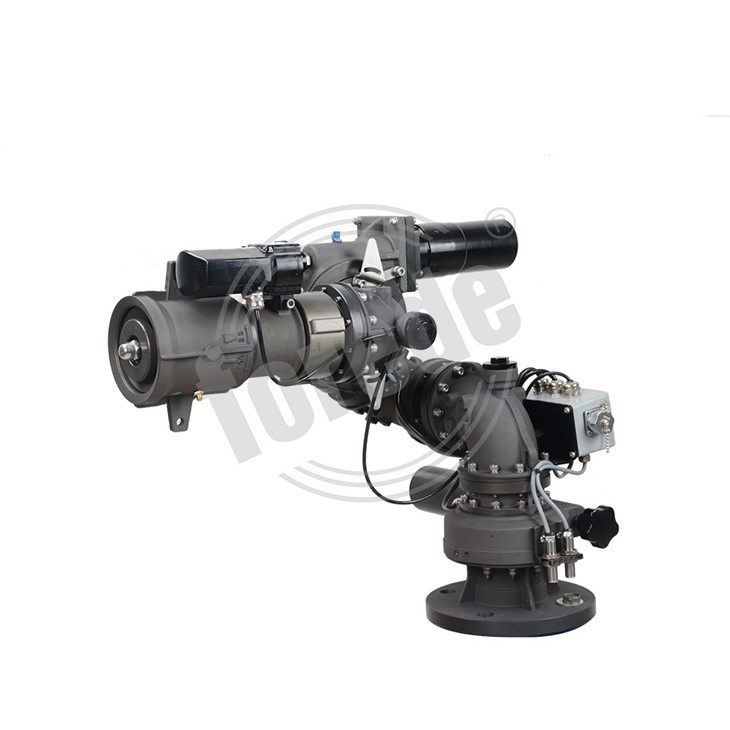

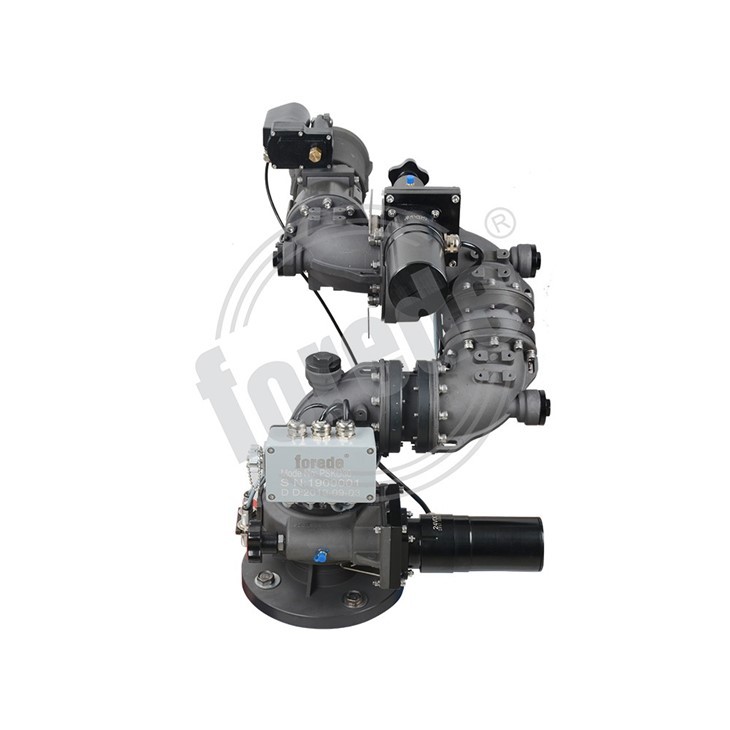

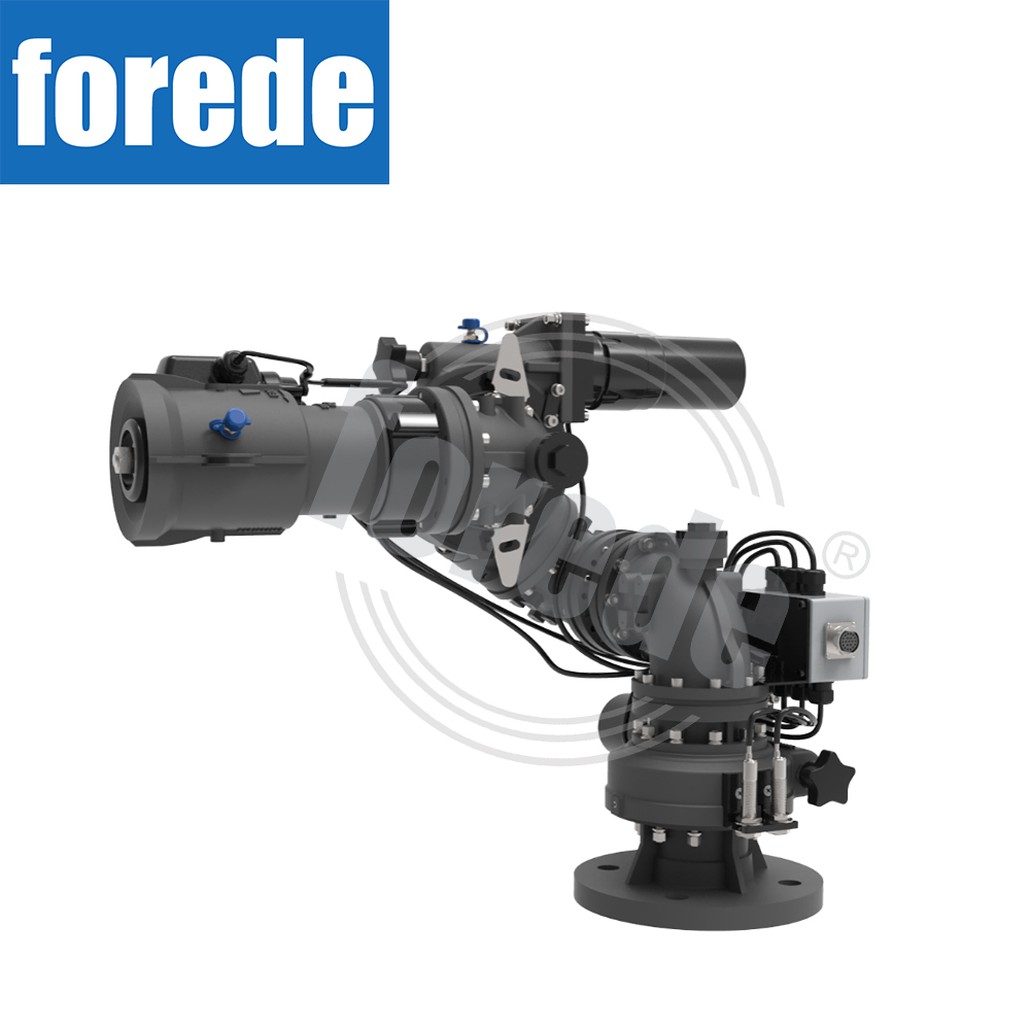

Products Description
- Aluminium alloy construction,hard anodized;
- Constant or Selectable flow rate;
- Vertical travel of 180°,from -90° to +90°;
- 340° rotation horizontally;
- Electric control jetting Pattern: Straight stream,Fog;
- Electric.driver and control unit box are waterproof;
- Optional power supply 12V/24V DC(optional),or 100-230AC.
.
| Model |
PSKD8/20W-B |
PSKD8/30W-B |
PSKD8/40W-B |
PSKD8/20-40W-B |
| Flow Rate |
1200 LPM Constant Flow |
1800 LPM Constant Flow |
2400 LPM Constant Flow |
1200-1800-2400 LPM Selectable Flow |
|
Working Pressure |
8 bar |
|||
|
Max. Reach |
50 m |
60 m | 65 m | 50-65 m |
|
Max. Fog Angle |
120° |
|||
|
Max Range Of Motion |
-90° to +90° Vertically, 340° Rotation,other degree available |
|||
|
Power Supply |
DC 24V is standard |
|||
|
Power Consumption |
≤200W |
|||
|
Waterway Size |
2 1/2" (65mm) |
|||
|
Monitor Outlet |
2 1/2" (65mm) NH male thread |
|||
|
Monitor Inlet |
Flange 2.5" ANSI 150# is standard,other size and standard available |
|||
|
Material |
Monitor - SS304 stainless steel is standard,SS316 is available Nozzle - Hard coated anodized aluminium alloy |
|||
|

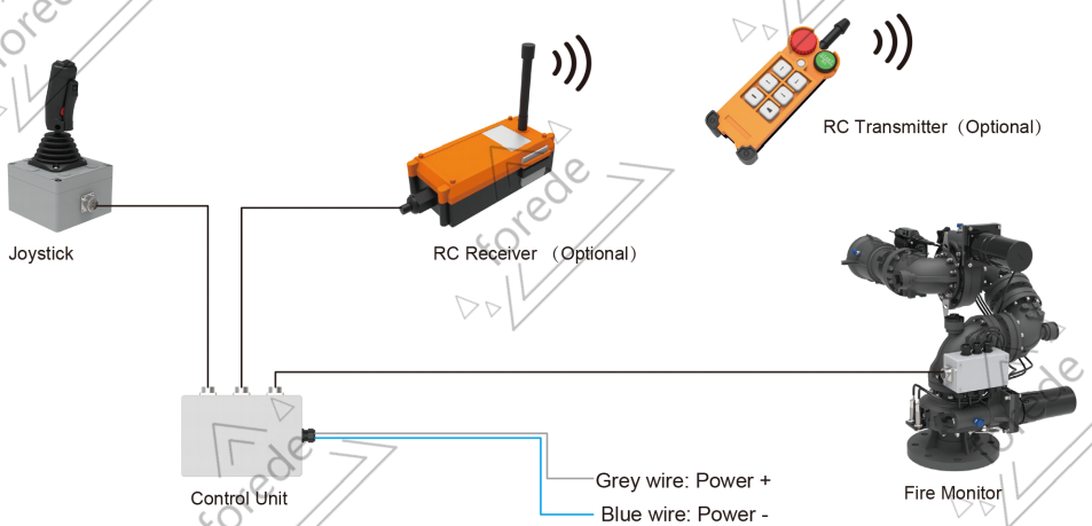

Control System |
ICS-01 or VMCS-01 |
|||
Products Question
Q. Do your offer free sample for your clients?
A: Yes, we offer free sample for many of the products
Q. What's the MOQ of your products?
A: Our MOQ is one (1) piece/set.
Q. What's your payment terms?
A: We accept T/T, L/C, Western Union, Paypal,etc.
Q. How long is the delivery time?
A: Usually around 15 days after payment.
forede® Fire Monitor System Series
forede® Main Products
How to contact us?
Our address
Nan'an City, Quanzhou City Fujian PRC-china
Phone Number
Hot Tags: fire electrical fire monitoring, China, manufacturers, suppliers, wholesale, price, Handline Automatic Fire Nozzle, Flanged Foot Valve With Strainer, Breeching Inlet Valve, Sidewall Glass Bulb Fire Sprinklers, Fire Hydrant Monitor, Alcohol Resistant Aqueous Film Forming
SS304 Stainless Steel construction;
Constant or Selectable flow rate;
Vertical travel of 180°,from -90° to +90°;
340° rotation horizontally;
Electric control jetting Pattern: Straight stream,Fog;
Electric.driver and control unit box are waterproof;
Optional power supply 12V/24V DC(optional),or 100-230 V AC.
