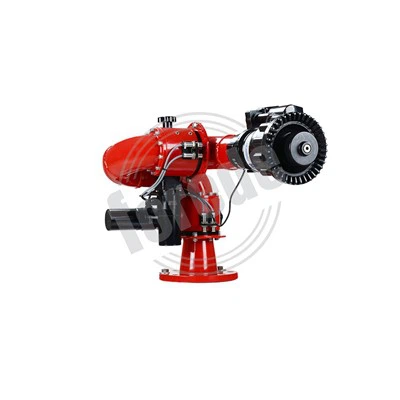

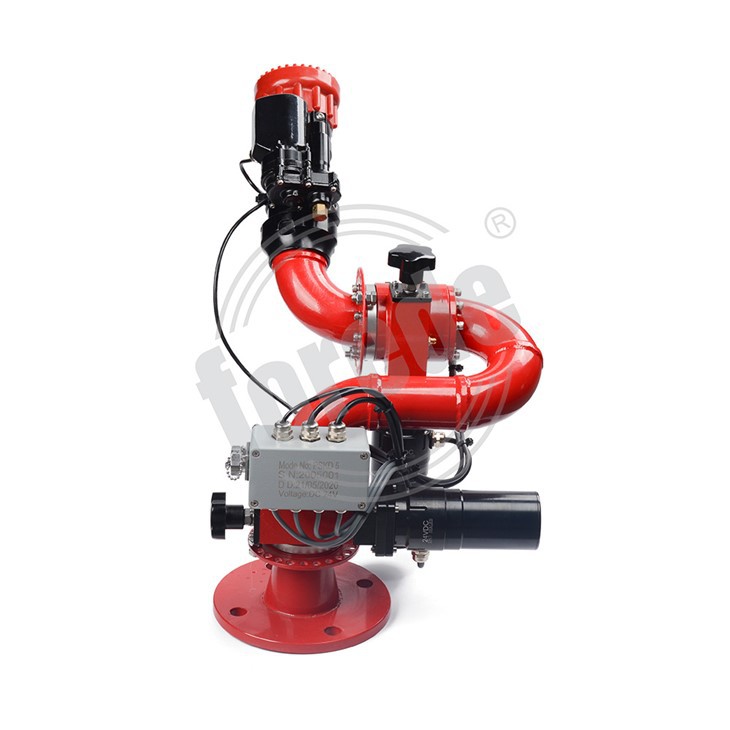

A remote control fire water monitor is a firefighting device that uses a pressurized water supply to deliver a high volume of water at a high velocity to extinguish fires. It is typically mounted on a horizontal or vertical platform and can be controlled remotely using a handheld controller or a joystick. The water flow and direction of the monitor can be adjusted and aimed at the fire as needed. Remote control fire water monitors are commonly used on large industrial sites and ships to protect against fires in hazardous environments

specification

Model Number	PSKD8/10W-A
Flow Rate	300 LPM ~ 600 LPM Automatic Nozzle
Working Pressure	8 bar
Max. Reach @ 8bar	85 meters
Max. Fog Angle	120 °
Max Range Of Motion	-90° to + 90 ° Vertically ,340 ° Rotation
Power Supply	DC 24 V is Standard
Power Consumption	24 V @ 7.5 A
Waterway Size	2" (50mm)
Monitor Outlet	2 " (50mm) NH
Monitor Inlet	Flange 2.5'' ANSI 150# is standard,other size and standard available
Material	Monitor Body - SS304 Stainless Steel is Standard ,SS316 is available
Material	Nozzle - Hard Coated Anodized Aluminum Alloy
Control System	ICS-01 or VMCS-01

FAQ:

Q:Is the sample provided for free?

A:A few small products like sprinklers decorative covers can be provided for free, but buyers pay for freight. Other products need to be confirmed.

Q:What is the production time of the sample?

A:Generally speaking, it isn't a large-scale purchase, and the lead time about 15 working days.Of course, having an urgent order, please reconfirm with us.

Q:How to mail the samples?

A:Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.

Hot Tags: fire water monitor distance, China, manufacturers, suppliers, wholesale, price, Fixed Remote Control Foam Monitor, Wireless Fire Water Monitor Fire Fighting, Remote Foam Monitor, Fixed Water Cannon, Electric Explosion Proof Fire Monitor, Industrial Water Cannons Fire Fighting

1) SS304 Stainless steel;

2) Automatic monitor nozzle;

3) Vertical travel of 180°,from -90°to +90°;

4) 360°rotation horizontally;

5) Electric control jetting Pattern: Straight stream,Fog;

6) Electric.driver and control unit box are waterproof;

7) Optional power supply 12V/24V DC(optional),or 100-230 V AC.
