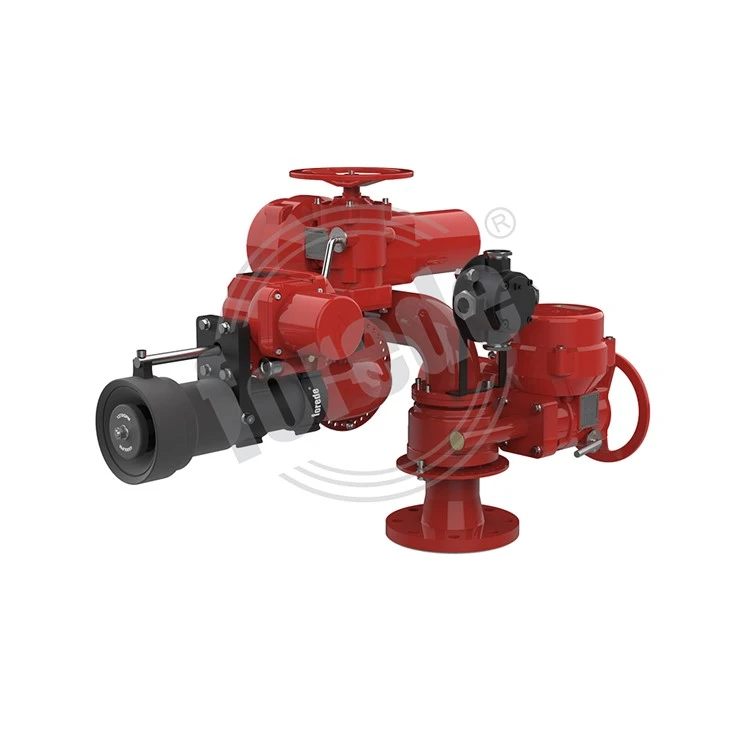

An Explosion Proof Remote Control Fire Monitor is an advanced firefighting tool designed to operate in hazardous environments where explosive substances are present. It is a remote-controlled water cannon that uses high-pressure water to extinguish fires, control flames, and cool down hot surfaces. The explosion-proof feature means that the device can be safely used in explosive environments without the risk of sparking, igniting flammable gases, and causing further damage.
The fire monitor is controlled remotely by operators from a safe distance, allowing them to control the direction and flow of the water jet without exposing themselves to danger. It can be mounted on a tripod, platform, or vehicle, making it ideal for use in industrial plants, chemical facilities, offshore platforms, and oil refineries.
Max.Flow Rate
Flow Style
Max.w. Pressure
Max. Fog Angle
product parameters
|
Flow Rate
|
3000/3600/4800LPM Constant Flow
|
|
Max. Reach @ 8 bar
|
70/75/85 Meters
|
|
Working Pressure
|
8/9.5/10.5 Bar |
|
Max Range Of Motion
|
-45° to +90° Vertically, 360° Rotation,other degree available
|
|
Turing Speed
|
7°/Second rotation,7°/Second vertical
|
|
Power Supply
|
AC 380 V
|
|
Power Consumption
|
Max. 300W
|
|
Waterway Size
|
2.5" (65mm) /3"(80mm)
|
|
Monitor Outlet
|
2.5" (65mm) NH
|
|
Monitor Inlet
|
Flange 4" ANSI 150# is standard,other size and standard available
|
|
Material
|
Monitor - SS304 stainless steel is standard,SS316 is available
Nozzle - Hard coated anodized aluminium alloy
|
|
Control System
|
ICS-EX-01 or VMCS-01
|
