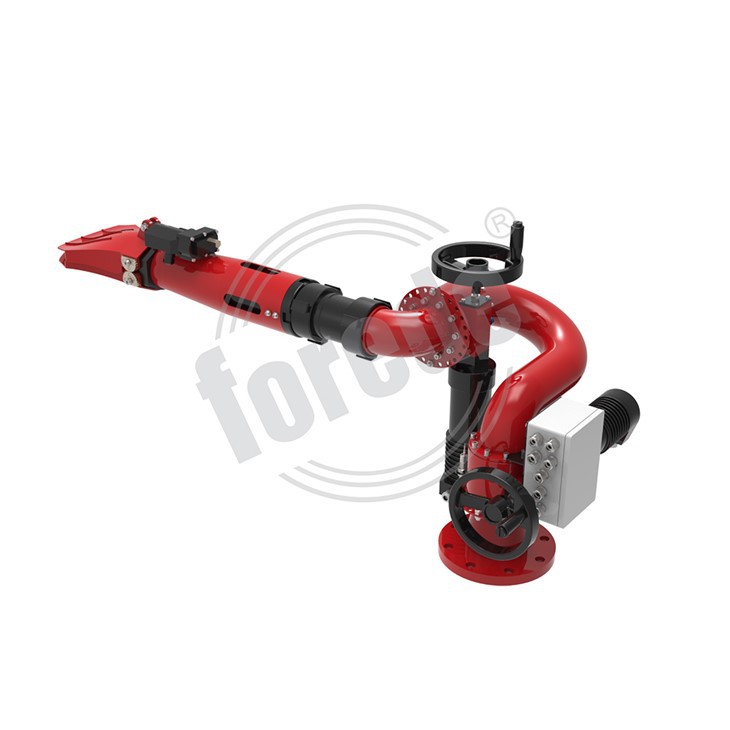

Foam Water Foam Fire Monitor

Foam Water Foam Fire Monitor
Product Introduction:
Remote control fire water foam monitor is an essential firefighting tool for modern-day emergency services, reflecting the continual advancement of technology and the importance of remaining vigilant at all times. Through its reliability and adaptability, it plays a vital role in protecting people and property from the dangers of fires.
Send Inquiry
Description
Technical Parameters



1



What is Remote Control Fire Water Foam Monitor ?

A remote control fire water foam monitor is a specialized piece of firefighting equipment that can be controlled from a distance using a remote control device. This powerful tool shoots streams of water, foam, and other extinguishing agents onto fires, helping firefighters to quickly and safely contain and put out flames.



The monitor is typically mounted on the top of a fire truck, and can be rotated, elevated, and adjusted to direct its output wherever it's needed most. With its advanced technology and precision controls, the remote control fire water foam monitor is an invaluable asset to fire departments and emergency responders around the world.







3840

Max.Flow Rate





Constant

Flow Style





10 Bar

Max.W. Pressure





65 M

Water Max. Reach





 product parameters







Flow Rate
1920/2880/3840 LPM Constant Flow
Water Max. Reach @ 8 bar
55/70/75 Meters
Foam Max. Reach @ 8 bar
48/60/65 Meters
Working Pressure
8/10 Bar
Max Range Of Motion
-90° to +90° Vertically, 360° Rotation,other degree available
Turing Speed
12°/Second rotation,8°/Second vertical
Power Supply
DC 24V is standard
Power Consumption
24V @ 7.5A
Waterway Size
3" (80mm)
Monitor Outlet
2.5" (65mm) NH
Monitor Inlet
Flange 4" ANSI 150# is standard,other size and standard available
Material
Monitor - SS304 Stainless Steel
Nozzle - Hard coated anodized aluminium alloy
Control System
ICS-01 or VMCS-01








do you have any question?

1



Q. Do your offer free sample for your clients?

A: Yes, we offer free sample for many of the products



Q. What's the MOQ of your products?

A: Our MOQ is one (1) piece/set.



Q. What's your payment terms?

A: We accept T/T, L/C, Western Union, Paypal,etc.



Q. How long is the delivery time?

A: Usually around 15 days after payment.


forede® Fire Monitor System Series
图片尺寸 210x210
Title
Title
Title
Title
图片尺寸 210x210
Title
Title
Title
Title







forede® Main Products

How to contact us?
How To Cooperate With Us?

Our address

Nan'an City, Quanzhou City Fujian PRC-china

Phone Number

2





Hot Tags: Foam Water Foam Fire Monitor, China, manufacturers, suppliers, wholesale, price, Remote Control Foam Monitor, Defense Type Fire Hose Nozzle, Model Boat Fire Monitors, Track Mounted Fire Cannon, Wireless Fire Water Monitor, RC Fire Fighting Monitor



Features:
-SS304 Stainless Steel construction;
- Constant flow rate,32/48/64 LPS;
- Vertical travel of 180°,from -90° to +90°;
- 360° rotation horizontally;
- Available for water and foam both;
- Electric driver and control box are waterproof;
- Available for Self-Inducting;
- Optional power supply 12V/24V DC(optional),or 100-230AC.
