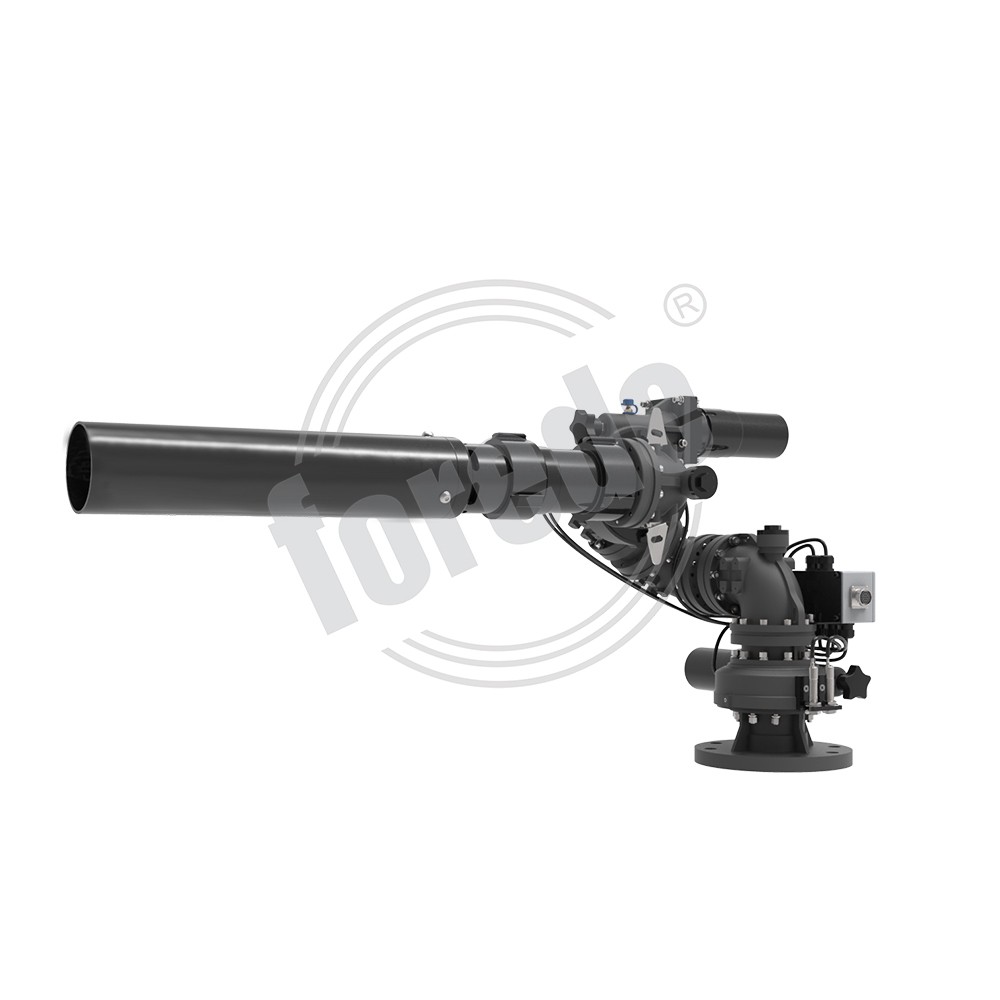

Remote control fire water foam monitor is an advanced firefighting tool that can be operated remotely from a safe distance to control and extinguish fires. It consists of a monitor, which is a high-powered water and foam dispensing device mounted on a platform and can rotate 360 degrees for precise and effective fire control. The remote control allows the operator to adjust the flow and direction of the water and foam, ensuring accurate and efficient fire suppression.
This sophisticated firefighting equipment is widely used in petrochemical plants, airports, and other high-risk facilities where fire incidents are more likely to occur. It provides rapid and effective intervention in controlling fires, reducing the risk to human life and the environment.
Max.Flow Rate
Flow Style
Max.W. Pressure
Water Max. Reach
product parameters
|
Flow Rate
|
1440/1920/24000 LPM Constant Flow
|
|
Water Max. Reach @ 8 bar
|
45/55/60 Meters
|
|
Foam Max. Reach @ 8 bar
|
40/50/55 Meters |
|
Working Pressure
|
8 Bar |
|
Max Range Of Motion
|
-90° to +90° Vertically, 360° Rotation,other degree available
|
|
Turing Speed
|
12°/Second rotation,8°/Second vertical
|
|
Power Supply
|
DC 24V is standard
|
|
Power Consumption
|
24V @ 7.5A
|
|
Waterway Size
|
2.5" (65mm)
|
|
Monitor Outlet
|
2.5" (65mm) NH |
|
Monitor Inlet
|
Flange 2.5" ANSI 150# is standard,other size and standard available
|
|
Material
|
Monitor & Nozzle- Hard coated anodized aluminium alloy
|
|
Control System
|
ICS-01 or VMCS-01
|
