Products Description

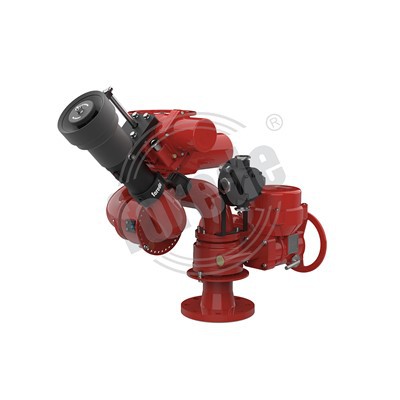

PLKD_CY Series Electric Fire Water Foam Monitor
PLKD type electronically controlled fire-fighting foam-water dual-purpose monitor has the characteristics of large flow rate and long range, and can realize long-distance wired, wireless control and local manual control. The fire monitor can be installed in a Explosive and other dangerous petrochemical, oil tank farms, oil tankers, oil terminals, hangars, ships and other places, the electrical control cabinet can be placed in the control room for remote operation to ensure safe fire fighting.
The monitor has a long range, simple and flexible operation, implements horizontal and vertical rotation, and can realize positioning, so as to facilitate the safe evacuation of the fire scene by firefighters
Technical Parameter
|
Model Number
|
PLKD10/80-CY
|
PLKD12/100-CY
|
|
Flow Rate
|
4800LPM | 6000LPM |
|
Working Pressure
|
10 bar | 10 bar |
|
Water Max. Reach @ 8 bar
|
85 meters
|
90 meters
|
|
Foam Max. Reach @ 8 bar
|
80 meters
|
85 meters
|
|
Max Range Of Motion
|
-90° to +90° Vertically, 340° Rotation,other degree available
|
|
|
Power Supply
|
DC 24V is standard
|
|
|
Power Consumption
|
24V @ 7.5A
|
|
|
Waterway Size
|
3" (80mm)
|
|
|
Monitor Outlet
|
3" (80mm) NH
|
|
|
Monitor Inlet
|
Flange 4" ANSI 150# is standard,other size and standard available
|
|
|
Material
|
Monitor & Nozzle- Hard coated anodized aluminium alloy
|
|
|
Control System
|
ICS-01 or VMCS-01
|
|
FAQ
Q:How long does it take to produce the product?
A: Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Q: What's the MOQ of your products?
A:Our MOQ is one (1) piece/set.
Q:What about the lead time?
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
