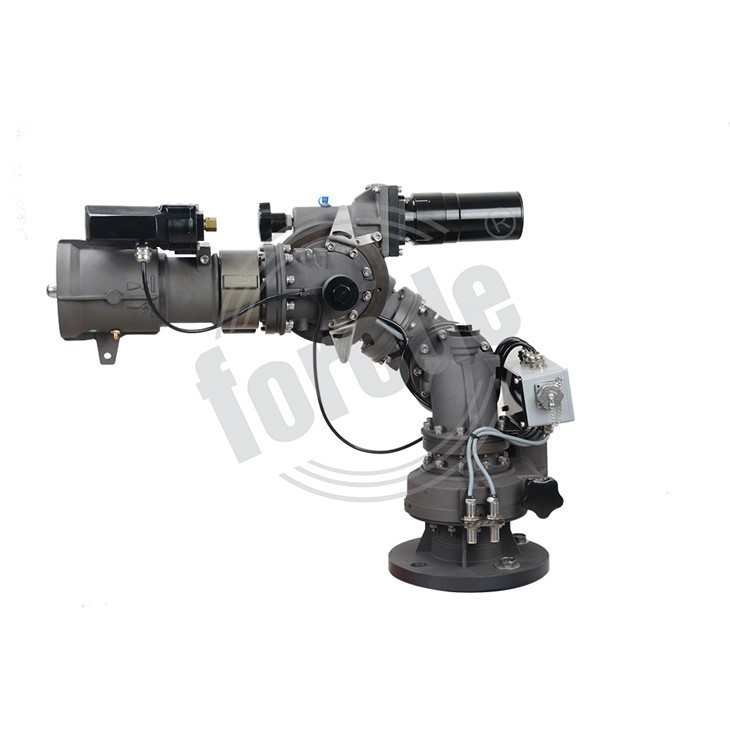

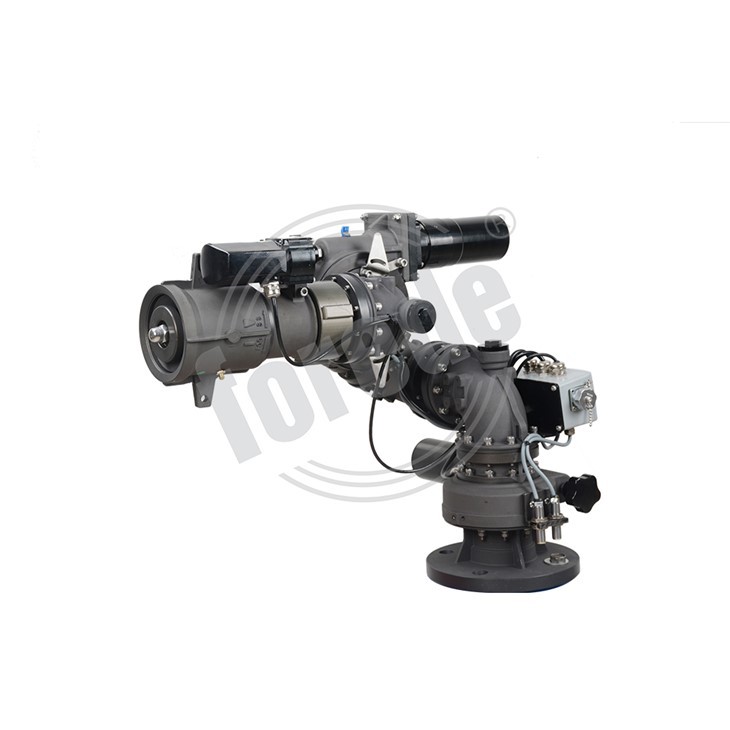

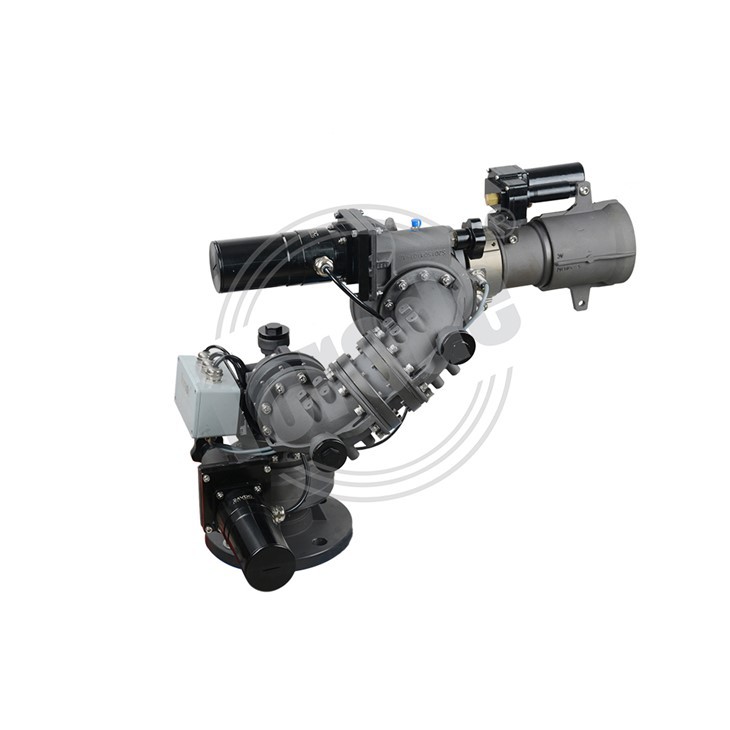

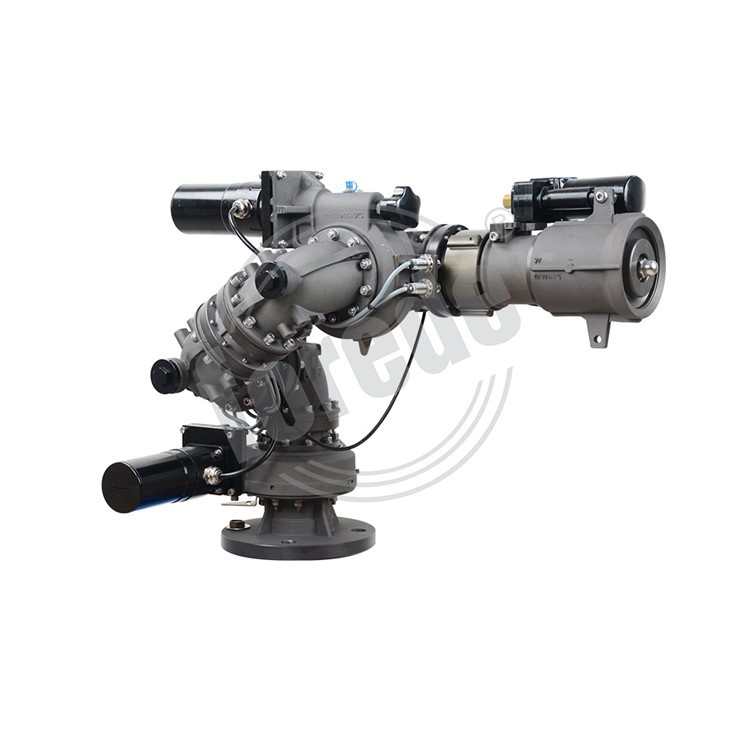

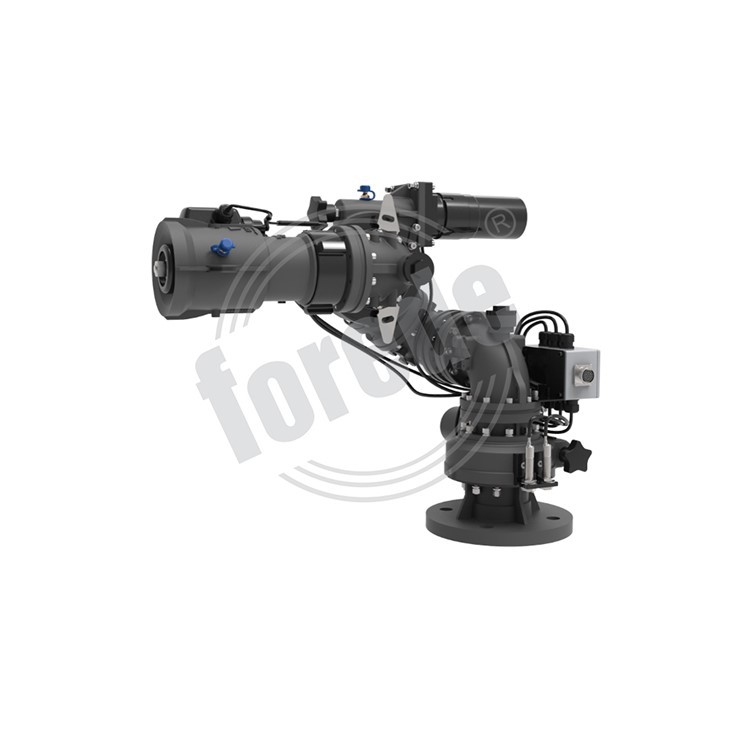

Electronic Control Fire Monitor In Aluminum Alloy, as the title said, it's an aluminium alloy construction, the flow rate can reach 2400LPM with constant nozzle. the max reach @8 bar can reach 65 meters, the details as following table shows:
Model Number | PSKD8/20W-B | PSKD8/30W-B | PSKD8/40W-B | PSKD8/20-30-40W-B |
Flow Rate | 1200 LPM | 1800 LPM | 2400 LPM | 1200-1800-2400 LPM Selectable |
Working Pressure | 8 Bar | 8 Bar | 8 Bar | 8 Bar |
Max. Reach @ 8 bar | 50 meters | 60 meters | 65 meters | 65 meters |
Max. Fog Angle | 120° | |||
Max Range Of Motion | -90° to +90° Vertically, 340° Rotation,other degree available | |||
Turing Speed | 24°/Second rotation,10°/Second vertical | |||
Power Supply | DC 24V is standard | |||
Power Consumption | ≤200W | |||
Waterway Size | 2 1/2" (65mm) | |||
Monitor Outlet | 2 1/2" (65mm) NH male thread | |||
Monitor Inlet | Flange 2.5" ANSI 150# is standard,other size and standard available | |||
Material | Monitor & Nozzle- Hard coated anodized aluminium alloy | |||
FAQ:
Q: What are Remote Control Monitors?
A:Remote Control Monitors (RCM) are standard monitors fitted with arrangements to operate the same from a remote location. RCMs normally employ Electric or hydraulic motors to operate the swivel joints for vertical/ horizontal movement of the monitor, as well as to adjust the discharge pattern of the nozzle.
Q: Q4. How do you deliver the goods and how long does it take to arrive?
A: We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Railway also optional.
Q: Can we make field trips and visit your factory?
Yes, We are pleased you come to visit our factory.Welcome!
Hot Tags: electronic control fire monitor in aluminum alloy, China, manufacturers, suppliers, wholesale, price, Industrial Water Cannons Fire Fighting, Dry Fire Sprinklers, Self Inducting Water Foam Monitor, FM 200 Fire Protection, Self Inducting Foam Monitor, Track Mounted Fire Cannon
1) Hard coated anodised aluminum alloy construction, long expendency;
2) Constant nozzle,while this nozzle can change into different flow rate, like 1800LPM;
3) Power supply type is selectable, either 12V/24V DC or 100-230AC;
4) Electric driver and control unit box are waterproof.
