Products Description

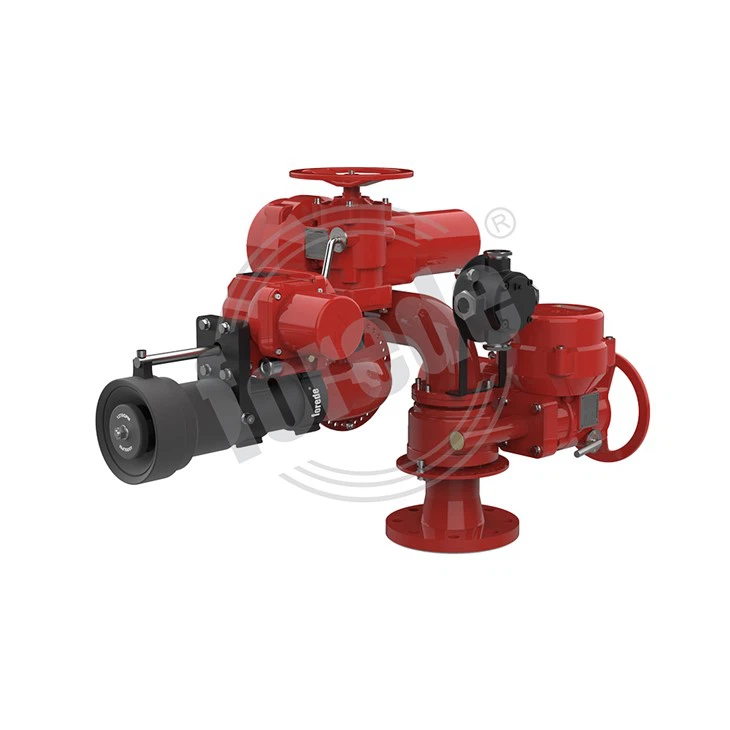

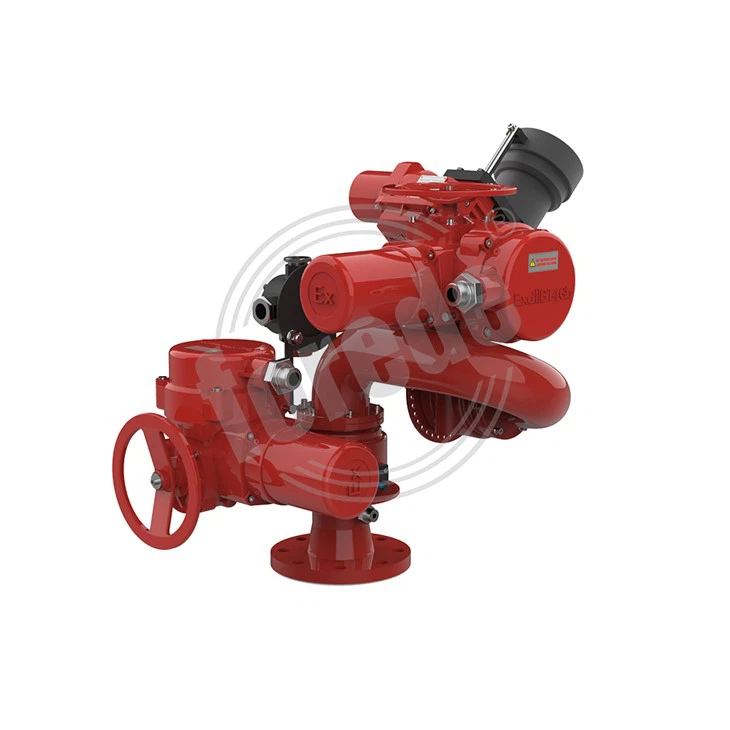

forede Explosion Proof Remote Control Fire Monitor offers a rugged and durable design, suitable across various operations, including wildland fire fighting, deicing, fixed site facility, dust control and front bumper turret. Wireless remote control facilitates effective use of personnel and lowers the potential risk of injury from manual operations. There are no control cables between the joystick/transmitter and the monitor which significantly reduce installation costs.
Technical Parameter
|
Model Number
|
PLKD10/64G-A | PLKD10/80G-A | |
|
Flow Rate
|
3840LPM | 4800LPM | |
|
Working Pressure
|
10 bar | 10 bar | |
|
Water Max. Reach @ 8 bar
|
75 meters | 85 meters | |
|
Foam Max. Reach @ 8 bar
|
70 meters | 80 meters | |
|
Max Range Of Motion
|
-45° to +90° Vertically, 340° Rotation,other degree available
|
||
|
Power Supply
|
DC 24V is standard
|
||
|
Power Consumption
|
24V @ 7.5A
|
||
|
Waterway Size
|
3" (80mm)
|
||
|
Monitor Outlet
|
3" (80mm) NH
|
||
|
Monitor Inlet
|
Flange 4" ANSI 150# is standard,other size and standard available
|
||
|
Material
|
Monitor - SS304 Stainless Steel
Nozzle - Hard coated anodized aluminium alloy
|
||
|
Control System
|
ICS-EX-01 or VMCS-01
|
||
FAQ
Q:Whether the product supports OEM customization
A:Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Q: What is the minimum order quantity of the product?
A:For conventional products, Low MOQ.
Q:Can I have a sample order?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
