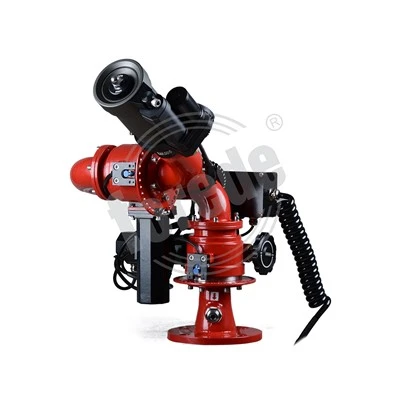

PSKD_BS Constant Flow Electric Control Fire MonitorR
Remote control fire water monitor is a firefighting device that uses a pressurized water supply to deliver a high volume of water at a high velocity to extinguish fires. It is typically mounted on a horizontal or vertical platform and can be controlled remotely using a handheld controller or a joystick..
|
Model Number
|
PSKD20BS
|
PSKD30BS
|
|
Flow Rate
|
1200LPM | 1800LPM |
|
Working Pressure
|
8 bar | 8 bar |
|
Max. Reach @ 8 bar
|
53 meters | 60 meters |
|
Max Range Of Motion
|
-90° to +90° Vertically, 360° Rotation,other degree available
|
|
|
Turing Speed
|
24°/Second rotation,10°/Second vertical
|
|
|
Power Supply
|
DC 24V is standard
|
|
|
Power Consumption
|
24V @ 7.5A
|
|
|
Waterway Size
|
2 1/2" (65mm)
|
|
|
Monitor Outlet
|
2 1/2" (65mm) NH male thread
|
|
|
Monitor Inlet
|
Flange 2.5" ANSI 150# is standard,other size and standard available
|
|
|
Material
|
Monitor & Nozzle- Hard coated anodized aluminium alloy
|
|
|
Control System
|
ICS-01 or VMCS-01
|
|
FAQ:
Q:Can I have a sample order?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: How do you deliver the goods and how long does it take to arrive?
A:We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Railway also optional. In fact, the delivery method depends on the quantity.
