Products Specifictions

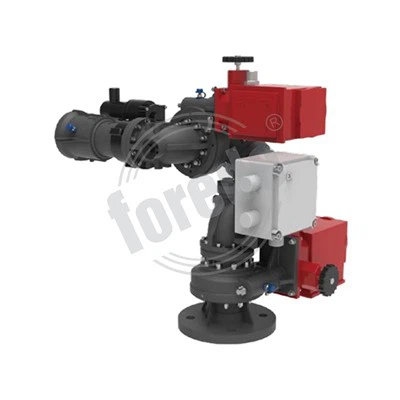

PSKD_C Series electronically is mainly used for fire truck as fixed fire water cannon fire extinguishing equipment and it can also centralized control cabinet installed in petrochemical, industrial and mining enterprises, warehouses, museums, exhibition halls, oil fields, storage tanks and other places with flammable and explosive hazards.
Products Parameters
|
Model Number
|
PSKD10/80-C
|
PSKD20/100-C
|
|
Flow Rate
|
4800LPM | 6000LPM |
|
Working Pressure
|
10 bar | 12 bar |
|
Max. Reach @ 8 bar
|
85 meters | 90 meters |
|
Max Range Of Motion
|
-90° to +90° Vertically, 360° Rotation,other degree available
|
|
|
Turing Speed
|
6°/Second rotation, 6°/Second vertical
|
|
|
Power Supply
|
DC 24V is standard
|
|
|
Power Consumption
|
24V @ 7.5A
|
|
|
Waterway Size
|
4" (100mm)
|
|
|
Monitor Outlet
|
3.5" NH male thread
|
|
|
Monitor Inlet
|
Flange 4" ANSI 150# is standard,other size and standard available
|
|
|
Material
|
Monitor & Nozzle- Hard coated anodized aluminium alloy
|
|
|
Control System
|
ICS-01 or VMCS-01
|
|
FAQ
Q:How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q:How long does it take to produce the product?
Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Q:What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
