Products Description

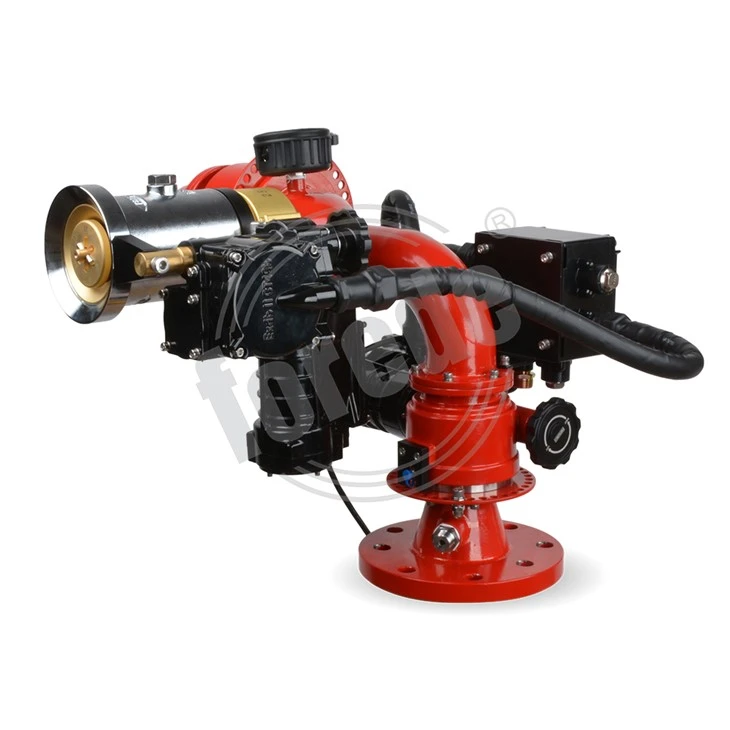

PSKD8/20-40WG-B Explosion Proof Vehicle Mounted Fire Monitor
Forede Explosion Proof Remote Control Fire Monitor offers a rugged and durable design, suitable across various operations, including wildland fire fighting, deicing, fixed site facility, dust control and front bumper turret. Wireless remote control facilitates effective use of personnel and lowers the potential risk of injury from manual operations. There are no control cables between the joystick/transmitter and the monitor which significantly reduce installation costs.
Technical Parameter
|
Model Number
|
PSKD8/20WG-B | PSKD8/30WG-B | PSKD8/40WG-B | PSKD8/20-40WG-B |
|
Flow Rate
|
1200LPM | 1800LPM | 2400LPM |
1200-1800-2400 LPM Selectable
|
|
Working Pressure
|
8 bar | 8 bar | 8 bar | 8 bar |
|
Max. Reach @ 8 bar
|
50 meters
|
60 meters
|
65 meters
|
50-65 meters
|
|
Max. Fog Angle
|
120°
|
|||
|
Max Range Of Motion
|
-90° to +90° Vertically, 340° Rotation,other degree available
|
|||
|
Power Supply
|
DC 24V is standard
|
|||
|
Power Consumption
|
24V @ 7.5A
|
|||
|
Waterway Size
|
2 1/2" (65mm)
|
|||
|
Monitor Outlet
|
2 1/2" (65mm) NH male thread
|
|||
|
Monitor Inlet
|
Flange 2.5" ANSI 150# is standard,other size and standard available
|
|||
|
Material
|
Monitor & Nozzle- Hard coated anodized aluminium alloy
|
|||
|
Control System
|
ICS-EX-01 or VMCS-01
|
|||
FAQ
Q:Is the sample provided for free?
A few small products like sprinkler decorative covers can be provided for free, but the buyer needs to pay for the shipping. Other products need to be confirmed according to the specific situation.
Q:How to mail the samples?
Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.
Q:What is your term and payment?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.

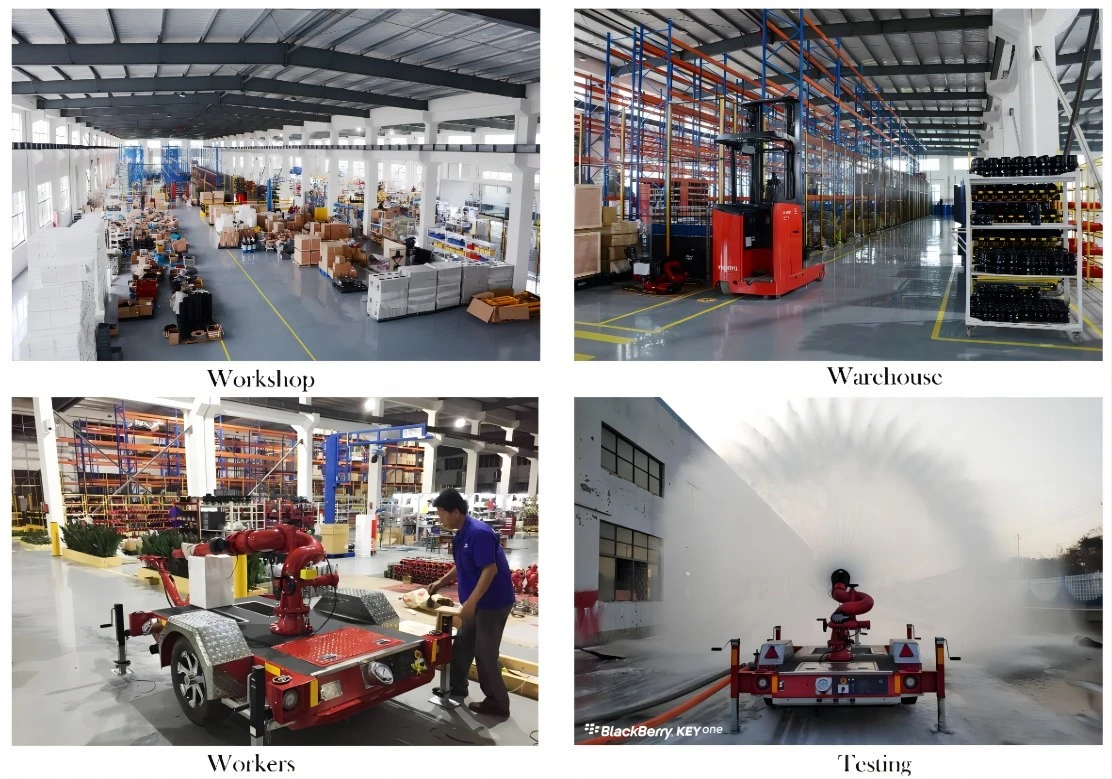

Factory View
