Products Description

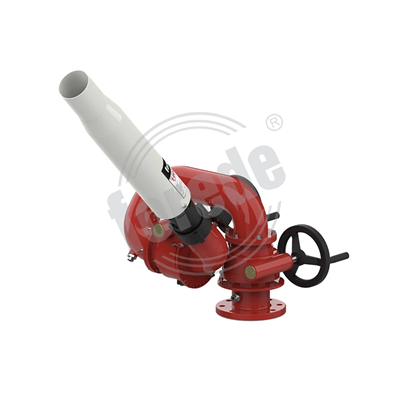

Explosion Proof Remote Electric Fire Water Monitor Cannon
Explosion-proof fire-fighting water cannon: explosion-proof fire-fighting water cannon is a special type of fire-fighting water cannon. It is generally installed in flammable, explosive and other dangerous places, such as coal yards, coal sheds, coal mines, power plants, oil refineries, oil fields , Oil depots, chemical plant warehouses, etc.
Explosion-proof actually refers to the special fire-fighting water cannon that can withstand the possible explosion impact and still work normally in the event of a fire in flammable, explosive and other dangerous places.
Technical Parameter
|
Model Number
|
XFS1.SF020 | XFS1.SF030 | XFS1.SF030 | XFS1.SS040 |
|
Flow Rate
|
1200LPM | 1800LPM | 2400LPM |
1200-1800-2400 LPM Constant Flow |
|
Working Pressure
|
8 bar | |||
|
Max. Reach @ 8 bar
|
50 meters | 60 meters | 65 meters | 50-65 meters |
|
Max Range Of Motion
|
-90° to +90° Vertically, 340° Rotation,other degree available
|
|||
|
Power Supply
|
DC 24V is standard
|
|||
|
Power Consumption
|
24V @ 7.5A
|
|||
|
Waterway Size
|
2 1/2" (65mm)
|
|||
|
Monitor Outlet
|
2 1/2" (65mm) NH male thread
|
|||
|
Monitor Inlet
|
Flange 2.5" ANSI 150# is standard,other size and standard available
|
|||
|
Material
|
Monitor - SS304 Stainlee Steel
Nozzle - SS304 tainlee Steel+ Brass
|
|||
FAQ
Q:How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q:How long does it take to produce the product?
Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Q:What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
