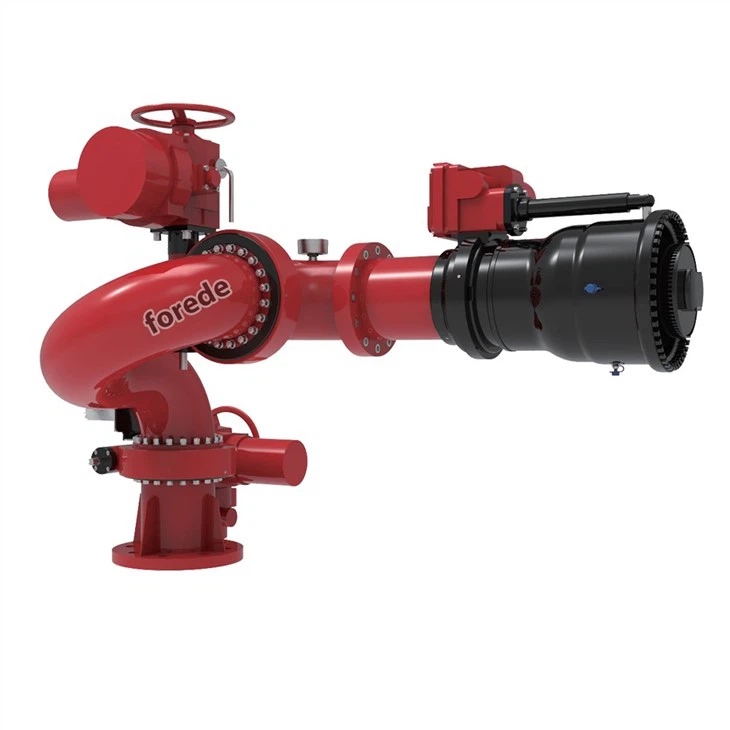

forede Explosion Proof Remote Control Monitor
Explosion-proof electronically controlled fire water monitors do not have the functions of automatic detection, tracking and positioning, and automatic fire extinguishing of automatic fire water monitors. In case of a fire on site, if the staff confirms that the fire is not serious, they can directly operate the wireless remote control to control the spray angle of the fire monitor, start the electric valve and fire pump, and implement fire extinguishing.
|
Model Number
|
PSKD50EX-A
|
PSKD60EX-A
|
PSKD80EX-A
|
|
Flow Rate
|
3000 LPM
|
3600 LPM
|
4800 LPM
|
|
Working Pressure
|
8.5 Bar
|
9.5 Bar
|
10.5 Bar
|
|
Max. Reach
|
75 meters
|
75 meters
|
80 meters
|
|
Max. Fog Angle
|
120°
|
||
|
Max Range Of Motion
|
-45° to +90° Vertically, 360° Rotation,other degree available
|
||
|
Turing Speed
|
7°/Second rotation,7°/Second vertical
|
||
|
Power Supply
|
DC 24V is standard
|
||
|
Power Consumption
|
Max. 195W
|
||
|
Waterway Size
|
2.5"(65mm)
|
3"(80mm)
|
3"(80mm)
|
|
Monitor Outlet
|
2.5" (65mm) NH
|
||
|
Monitor Inlet
|
Flange 4" ANSI 150# is standard,other size and standard available
|
||
|
Material
|
Monitor - SS304 is standard,SS316 is available
Nozzle - Hard coated anodized aluminium alloy
|
||
|
Control System
|
ICS-EX-01 or VMCS-01
|
||
