Products Description
Overview

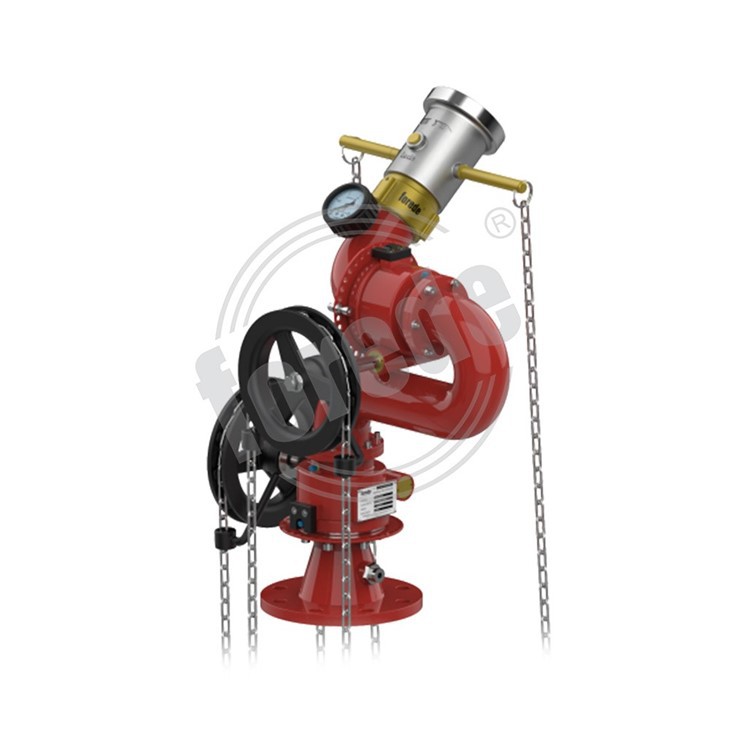

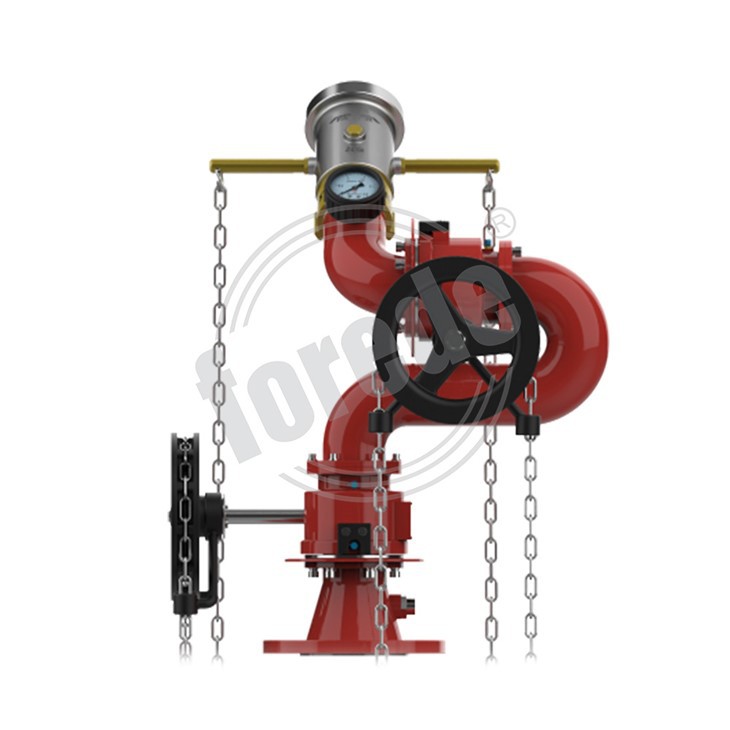

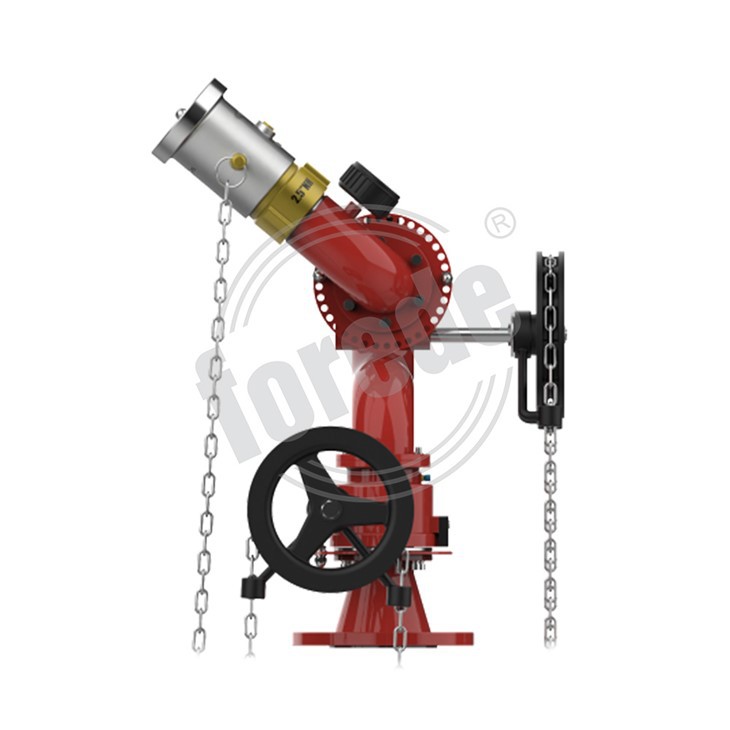

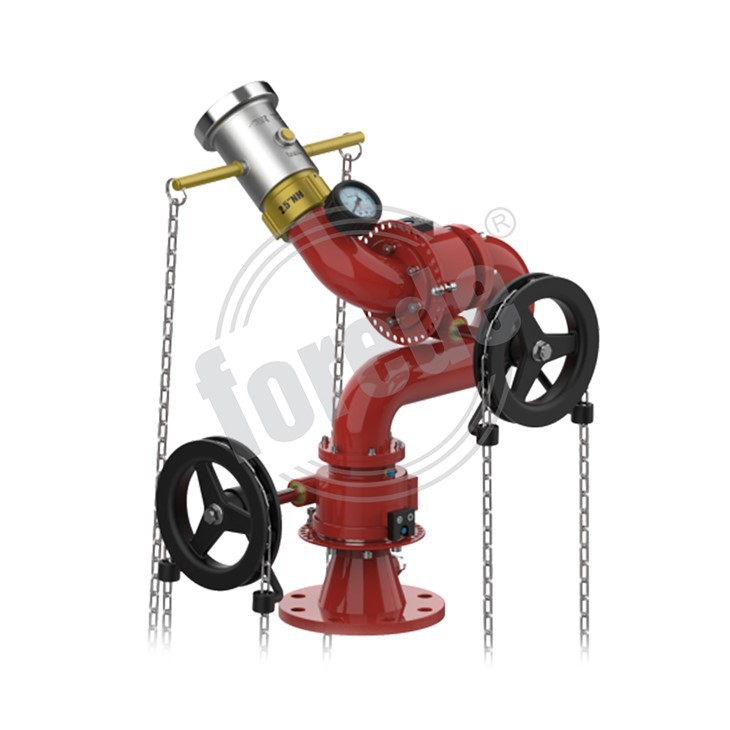

forede® Elevated Fire Water Monitor is a fixed or portable firefighting monitor installed on a raised structure, platform, tower, vehicle, or skid unit to provide extended reach, improved visibility, and enhanced fire suppression coverage. By elevating the monitor above ground level, firefighters can project water or foam over obstacles and protect larger hazard areas more effectively.
Applications
Elevated fire water monitors are commonly used in:
Oil Refineries
Petrochemical Plants
Tank Farms
Marine Terminals
Aircraft Hangars
Warehouses and logistics centers
Power generation facilities
Features
Product name: Elevated fire water monitor
Material: SS304/SS316
Flow rate: 2400LPM
Max.reach: 65m
Products Parameter
forede® elevated fire water monitor with various standards for option:
|
Model |
WFS1.AZ040 |
|
Flow Rate |
2400 LPM |
|
Working pressure |
8 bar |
|
Foam Jetting Range |
65 m |
|
Water Jetting Range |
60 m |
|
Foam Expansion |
≧ 6 times |
|
Outlet |
2.5" NH |
|
Inlet |
Flange 3"/ 4" BS4504 is standard ( other sizes & standards are available ) |
FAQ
Q: Where is the elevated fire water monitor installation?
A: The elevated fire water monitor is mounted above ground level on towers, platforms, tanks, vehicles, or pedestals.
Q: Why use an elevated monitor instead of a ground-mounted monitor?
A: An elevated monitor provides better line-of-sight to the fire, greater reach, and improved protection of large industrial hazards.
Q: What mounting heights are common?
Typical installations range from 2 to 15 meters above ground, depending on the hazard and coverage requirements.
Q: Which material is best for corrosive environments?
A: Stainless Steel 316 is commonly selected for offshore, marine, and chemical plant applications because of its excellent corrosion resistance.
Q: How is routine maintenance performed?
Weekly: Check chain tension, and inspect for any signs of rust or wear.
Monthly: Apply water-resistant grease to the chain, and clean the sprockets.
Quarterly: Perform full-range rotation and elevation tests to ensure smooth movement without any jamming.
