Product Introduction:

forede® EAF010 fire water cannon nozzle (also called a fire monitor nozzle or water monitor nozzle) is a high-capacity firefighting device designed to project a powerful jet or spray of water (or foam) over long distances to control and extinguish large fires. It is commonly used in industrial facilities, oil refineries, petrochemical plants, airports, and fire trucks.

Send Inquiry

Description

Technical Parameters

Products Description

Overview

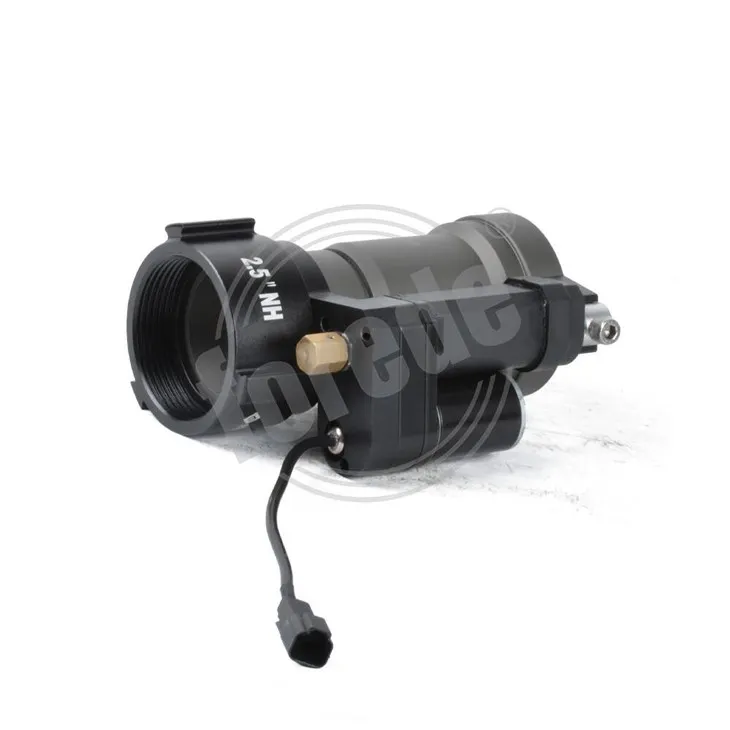

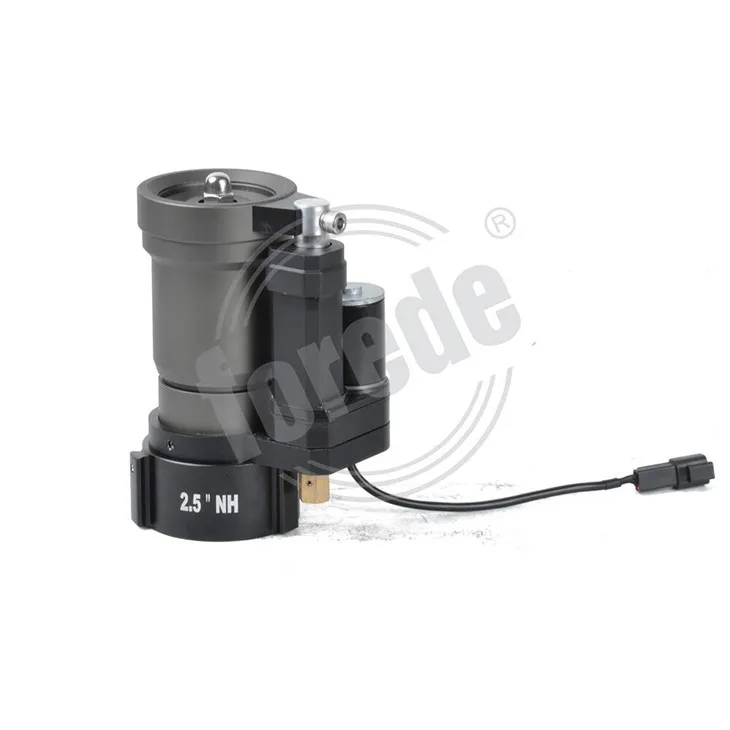

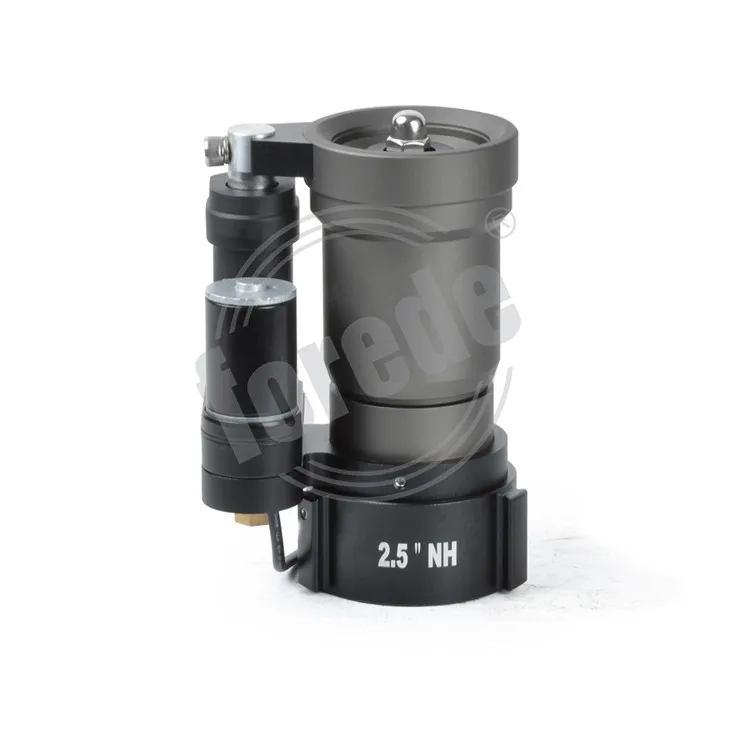

forede® EAF010 electric monitor nozzle (also called a can nozzle) is the discharge component of a water cannon or fire monitor. It controls the shape, range, and flow rate of the water stream expelled under pressure.

Aluminum cannon nozzle is a high-flow, directional nozzle mounted on a swivel/boom that throws a concentrated jet or fan of water for firefighting, dust suppression, washing, or irrigation from a vehicle-mounted pump.

Features

Production Name: Electric monitor nozzle

Flow Rate: 60 LPS

Jetting Pattern: Straight stream, Fog

Max. Reach: 65 meters

Products Description

forede® electric monitor nozzle

Model Number	EAF010
Flow Rate	60 LPS Selectable Flow
Working Pressure	8 Bar
Max. Reach	34 meters @ 2400 LPM
Max. Fog Angle	120°
Material	Hard Anodized Aluminum Alloy
Monitor Inlet	2.5" NH Female
Flow Pattern	Selectable

FAQ

Q: What is the standard working voltage?
A: Most models adopt DC 24V; 12V is available upon request. The motor is fully sealed and waterproof.

Q: What is the operating pressure and flow rate?
A:Working pressure: 0.7–1.6 MPa (7–16 bar). Flow rate: 200–4000 LPM (50–1000 GPM), varies by nozzle model.

Q: What spray patterns does it support?
A: Electric nozzle can switch between straight stream (solid jet) and fog spray (0°–120° wide angle) electrically, no need to shut down water supply during switching.

Q: What material is the nozzle made of?
A: Main body: hard-coat anodized aluminum alloy / stainless steel, corrosion-resistant, suitable for outdoor and industrial sites.

Q: Can it work when power fails?
A: Yes. All electric monitor nozzles are equipped with manual override for angle adjustment and pattern switching during power outage
