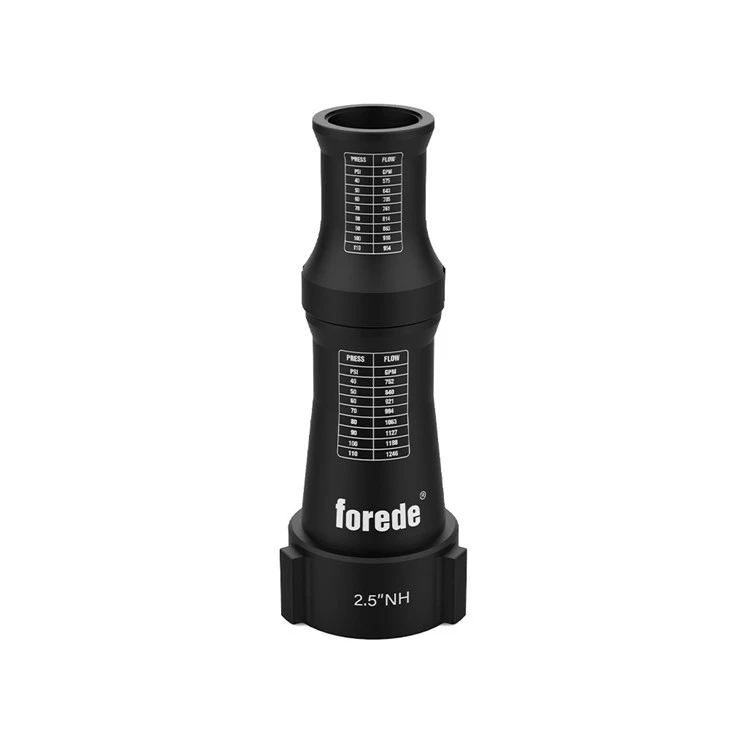

forede ® MAZ-2 Double Stacked Tips

The MAZ-2 Double Stacked Tips is a two-section stacked smooth bore nozzle developed by forede. Its layered tapered water channel stabilizes water flow and produces a tight, concentrated straight jet. Made of anodized aluminum alloy, the nozzle remains lightweight while resisting scratches and chemical corrosion, and it runs reliably under the rated 8 Bar working pressure.

The core advantage of MAZ-2 Double Stacked Tips lies in its dual-tip combination design. Operators can assemble two different orifice components together to adjust total flow without replacing the whole unit. The standard matched openings are 2 inch and 1-3/4 inch, and the maximum water output can reach 4800 LPM to meet large-flow firefighting needs. The 2.5-inch female NH inlet fits most international fire monitor interfaces perfectly.

This stacked tip structure simplifies on-site flow adjustment for emergency crews. With no complicated internal moving parts, the MAZ-2 Double Stacked Tips rarely suffers from blockages or breakdowns. It is specially built for fixed monitor systems on oil depots and bulk storage yards, delivering consistent long-range jet power for large industrial fire suppression.

MAZ-2
MAZ-2
MAZ-2
MAZ-2

Products Feature

Monitor Nozzle Material: Aluminum Alloy ;

Patterm: Staright Stream;

Monitor Nozzle Type: Constant ;

Flow Rate : 4800LPM ;

Control Type: Manual;

Application: For fire monitor,for fire fighting,for fire hydrant;

Media : Water;

Inlet Size: 2.5 '' NH Female .

Technical Parameter

forede ® MAZ-2 Double Stacked Tips

The MAZ-2 Double Stacked Tips is a dual-section smooth bore nozzle made of anodized aluminum alloy. It operates at 8 Bar with a peak flow of 4800 LPM. It adopts two combinable orifice tips, forms stable straight jets, and is equipped with a 2.5" female NH inlet for industrial fire monitors.

Inch	1"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-3/4"	2-1/10"
mm	25.7	28	31.5	36.5	41.5	45	52
LPM	1200	1400	1800	2400	3000	3600	4800
Tips	Tips-1				Tips-2
Standard Orifice Size	2''				1-3/4''

Frequently Ased Questiones

1. What improvement does the double stacked structure bring to water jet stability?

Two-stage tapered channels gradually shrink the water column step by step. The MAZ-2 Double Stacked Tips greatly cuts water turbulence and air mixing, so the jet stays compact over a longer distance and is less affected by crosswinds compared with single-tip nozzles.

2. Can I freely match any two orifice sizes on the MAZ-2 Double Stacked Tips?

You can combine different orifice parts flexibly according to water supply capacity. The factory standard configuration is 2 inch plus 1-3/4 inch. Any two sizes from the orifice list can be assembled, as long as the total flow does not exceed the 4800 LPM upper limit.

3. What maintenance work does the MAZ-2 Double Stacked Tips require after long-term outdoor use?

You only need to take apart the two stacked sections and flush out sediment with clean water every half year. The anodized alloy surface prevents rust, so you do not need to apply anti-rust oil frequently. No precise calibration is required after reassembly.

4. Why is this dual-tip model more flexible than a fixed single-orifice nozzle?

A single fixed nozzle only supports one flow value. The MAZ-2 Double Stacked Tips allows staff to recombine the two tips on the spot. They can switch between medium and high flow quickly to deal with both small localized fires and large-scale blazes without preparing multiple spare nozzles.

5. Will the threaded joint between the two stacked tips cause water leakage under 8 Bar pressure?

The connecting threads come with built-in sealing grooves. When tightened properly, the joint stays fully sealed under rated working pressure. The two sections lock tightly, so separation or seepage will not occur even during continuous high-volume water discharge.
