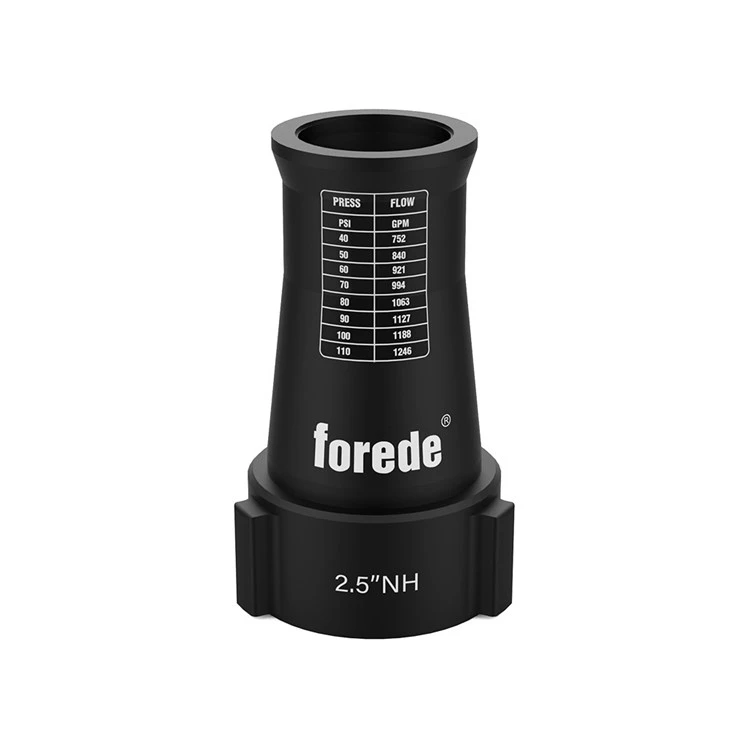

forede ® MAZ-1 Deluge Tip

The MAZ-1 Deluge Tip is a single-tip smooth bore monitor nozzle manufactured by forede. Its tapered inner channel eliminates water turbulence, forming a compact solid straight stream for long-distance penetration. The anodized aluminum alloy body keeps the unit lightweight while resisting outdoor abrasion and corrosion under 8 Bar rated working pressure.

This MAZ-1 Deluge Tip comes with a full range of interchangeable orifice openings covering 1 inch up to 2-1/10 inch. The maximum water throughput can reach 4800 LPM, and users can shift flow capacity simply by swapping different tips. The 2.5-inch female NH inlet allows direct connection to most standard fire monitors without extra conversion fittings.

Built for deluge fire suppression systems, the MAZ-1 Deluge Tip delivers stable concentrated jets for large-scale industrial blazes. It features a simple one-piece structure with zero complex moving parts, which drastically cuts routine inspection and maintenance work. It remains a reliable choice for fixed deluge fire protection on tank farms and industrial sites.

MAZ-1
MAZ-1
MAZ-1
MAZ-1

Products Feature

Monitor Nozzle Material: Aluminum Alloy ;

Patterm: Staright Stream;

Monitor Nozzle Type: Constant ;

Flow Rate : 4800LPM ;

Control Type: Manual;

Application: For fire monitor,for fire fighting,for fire hydrant;

Media : Water;

Inlet Size: 2.5 '' NH Female .

Technical Parameter

forede ® MAZ-1 Deluge Tip

The MAZ-1 Deluge Tip is a forede smooth bore single nozzle made of anodized aluminum alloy. Operating at 8 Bar, it creates solid straight water streams, supports orifice sizes from 1" to 2-1/10" with peak flow up to 4800 LPM, and has a 2.5" female NH inlet for fire monitor installation.

Inch	1"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-3/4"	2-1/10"
mm	25.7	28	31.5	36.5	41.5	45	52
LPM	1200	1400	1800	2400	3000	3600	4800
Tips	Deluge Tips
Standard Orifice Size	2-1/10",1-3/4",1-1/2",1-3/8",1-1/4",1-1/8",1"

Frequently Ased Questiones

1. What core advantage does the smooth tapered bore bring to the MAZ-1 Deluge Tip?

The streamlined inner waterway prevents water churning and air entrainment. The MAZ-1 Deluge Tip maintains a tight, continuous water column, so the jet can travel farther and punch through thick flame plumes far better than conventional multi-pattern nozzles under identical water pressure.

2. How quickly can field crews switch flow output on the MAZ-1 Deluge Tip?

Each orifice tip connects via simple screw threads. Operators can unscrew the old tip and install a new size within 2 minutes. No special hand tools are required, so flow adjustment can be finished rapidly right at the fire scene.

3. Will the anodized aluminum shell stand up to long-term outdoor industrial installation?

The dense anodic oxidation film blocks chemical dust and moisture. The MAZ-1 Deluge Tip avoids rust and surface degradation in factory and open-air tank zones. If deployed in highly corrosive coastal areas, you can upgrade to brass material for extended service life.

4. Which fire system scenarios match the MAZ-1 Deluge Tip best?

This single deluge tip is designed exclusively for fixed deluge fire monitor systems. It works perfectly for oil tank zones, bulk chemical storage yards and open industrial areas that require heavy-volume concentrated water jets to put out large-area fires.

5. What is the upper flow limit when using the largest orifice on the MAZ-1 Deluge Tip?

When fitted with the maximum 2-1/10 inch orifice under 8 Bar working pressure, the MAZ-1 Deluge Tip hits a flow volume of 4800 LPM. This high-volume water output fully meets the demands of large deluge fire suppression operations.
