Products Description

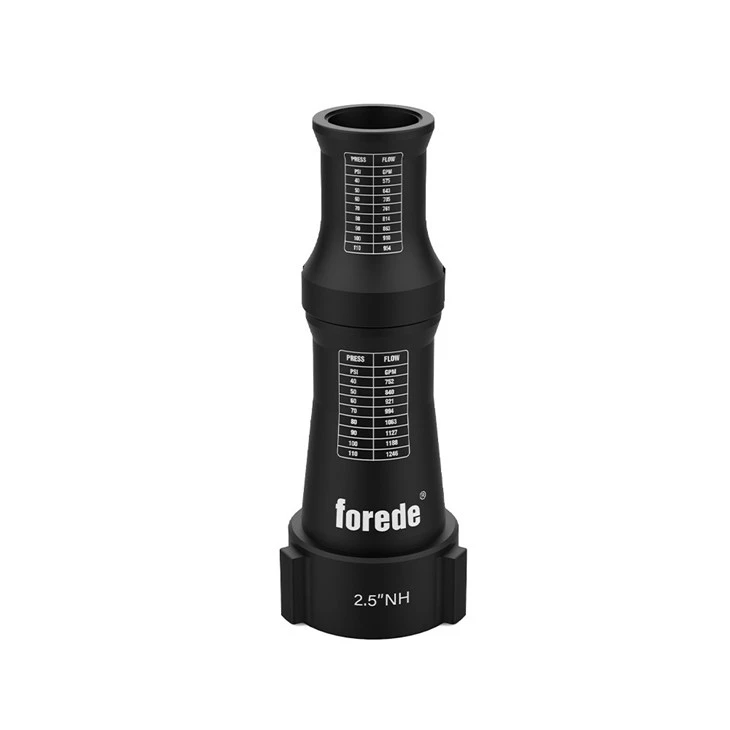

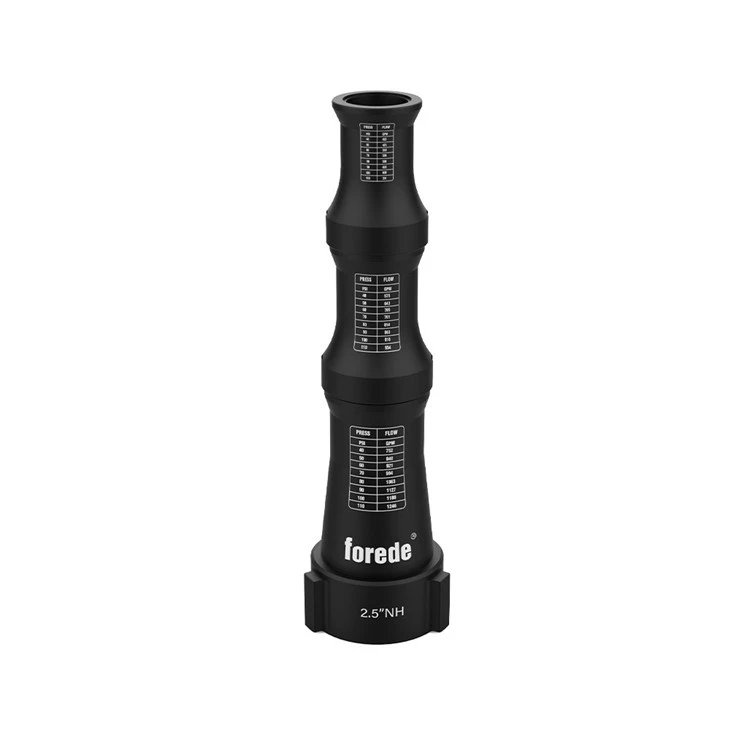

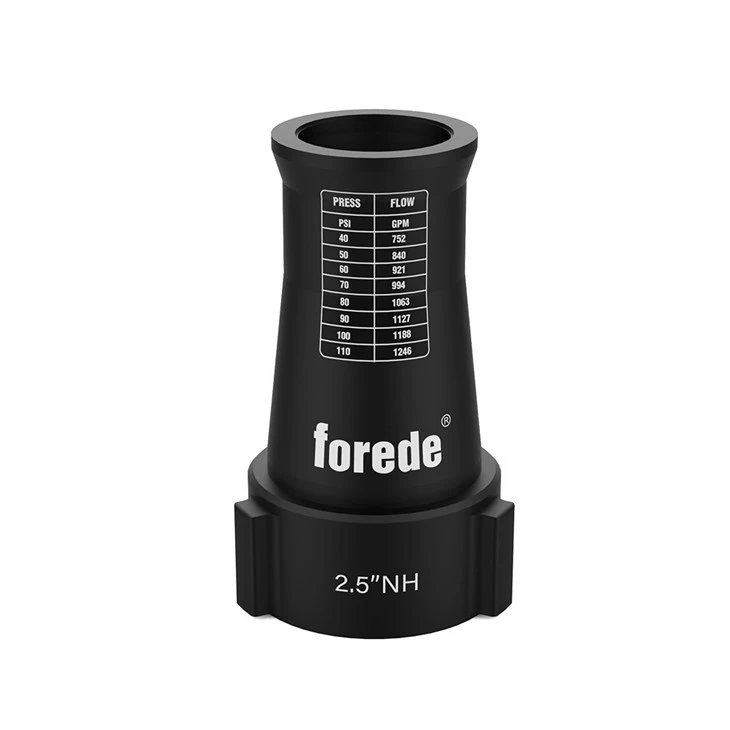

forede ® Smooth Bore Monitor Nozzle
The forede® Smooth Bore Monitor Nozzle adopts a tapered smooth internal channel to generate compact solid water jets for fire attack. It is built from lightweight anodized aluminum alloy, with optional brass and stainless steel materials for harsh working conditions. It works steadily under 8 bar pressure, delivering outstanding jet reach and penetration for large outdoor and industrial fires.
This forede® Smooth Bore Monitor Nozzle provides flexible flow selection with multiple interchangeable orifice sizes ranging from 1 inch to 2-1/10 inch. The maximum water output can hit 4800 LPM. It comes in four structural versions including single, double, triple and quadruple stacked tips to match different fixed fire monitor systems and water supply capacities.
Multiple operation modes make the forede® Smooth Bore Monitor Nozzle highly adaptable. Buyers can choose manual control, electric drive or explosion-proof configurations for chemical plants and oil depots. The whole structure is sturdy with minimal wearing parts, bringing down long-term upkeep work and ensuring stable jet quality during long-duration fire suppression.
MAZ-3
Products Feature
Monitor Nozzle Material: Aluminum Alloy ;
Patterm: Staright Stream;
Monitor Nozzle Type: Constant ;
Flow Rate : 1200/1800/2400/3000/3600/4800LPM ;
Control Type: Manual;
Application: For fire monitor,for fire fighting,for fire hydrant;
Media : Water;
Inlet Size: 2.5 '' NH Female .
Technical Parameter
forede ® Smooth Bore Monitor Nozzle
The forede® Smooth Bore Monitor Nozzle features a smooth tapered waterway to form solid straight streams. Made of anodized aluminum alloy, it runs at 8 bar pressure with a max flow of 4800 LPM. It has single and multi-stacked tip structures with interchangeable orifices, and a 2.5 inch female NH inlet for fire monitors.
|
Model Number |
MAZ-4 | ||
|---|---|---|---|
| Flow Rate | 1200/1800/2400/3000/3600/4800LPM | ||
|
Working Pressure |
8 bar |
||
| Material | Aluminum Alloy | ||
| Inlet | 2.5" NH female | ||
Frequently Ased Questiones
1. What is the flow rate range of the forede® Cannon Nozzle Brass Type?
2. What is the working pressure for the forede® Cannon Nozzle Brass Type?
- The working pressure for the forede® Cannon Nozzle Brass Type is 8 bar.
3. What is the maximum fog angle of the forede® Cannon Nozzle Brass Type?
4. What is the water jetting range of the forede® Cannon Nozzle Brass Type?
5. What materials are used in the construction of the forede® Cannon Nozzle Brass Type?
Application Area
High-rise Buildings
Commercial Structures
Large Industrial Facilities
Factory Space
