Products Description
Turbojet fire nozzle
Selectable turbojet fire nozzle consists of an adjustable head that can be rotated to produce a desired spray pattern, including a solid stream, wide fog or a tapered jet. The flow rate of the nozzle can also be adjusted to regulate water pressure. This allows firefighters to control the amount of water or foam being used so that it can be targeted precisely to the flames.
Features:
Specification
| Model Number | Material | Inlet Size | Working Pressure | Max.Fog Angle |
|
QLD6.0/4III-25
|
Hard Anodized Aluminium Alloy
|
1''/ 25mm
|
6 Bar |
110° |
|
QLD6.0/4III-40
|
Hard Anodized Aluminium Alloy
|
1.5''/ 40mm
|
6 Bar |
110° |
| QLD6.0/4III-50 | Hard Anodized Aluminium Alloy | 2.0''/ 50mm | 6 Bar | 110° |
| QLD6.0/4III-65 | Hard Anodized Aluminium Alloy | 2.5''/ 65mm | 6 Bar | 110° |

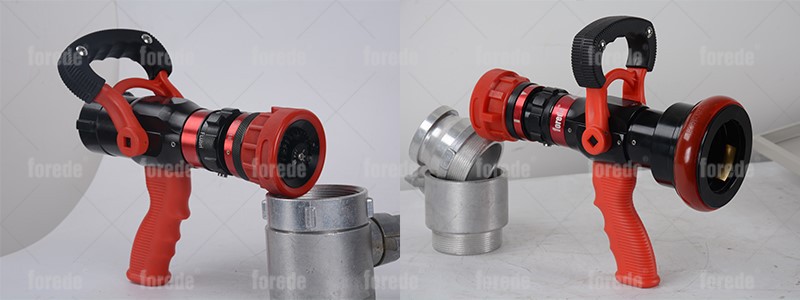

Detail Pictures
Turbojet fire nozzle
forede®QLD6.0/4.0III Variable nozzle firefighting Handline Nozzle With Flow Settings has a selectable flow range at 6 bar of 60,130,235 litres per minute to meet the individual needs of the fire fighter at any given time.
Operation
Frequently Asked Question
FAQ
Q: What is a Forede Turbojet Fire Nozzle?
A: Forede Turbojet Fire Nozzle is an advanced firefighting tool that uses rotary turbine technology to generate ultra-high-velocity water streams. Crafted from hard-anodized aluminum alloy, it features:
Integrated turbine mechanism: Spins water into a concentrated, penetrating jet.
Adjustable flow settings: 60 LPM (precision), 130 LPM (balanced), 235 LPM (high-force).
Dual-mode operation: Turbojet stream for deep penetration or standard fog for coverage.
Designed to combat deep-seated, shielded fires by delivering water with exceptional kinetic energy.
Q: Advantages of Forede Turbojet Nozzles
A: Deep penetration: Turbine-driven jet reaches concealed fuel sources (e.g., voids, piled materials).
Thermal knockdown: High-velocity stream disrupts heat layers faster than conventional nozzles.
Lightweight endurance: Hard-anodized aluminum alloy resists heat warp (500°C+) and reduces fatigue.
Water efficiency: Achieves superior fire control with 20–30% less water volume.
Multi-threat versatility: Effective on Class A (solid fuels), Class B (oils), and electrical hazards.
Q: Why Choose Forede Turbojet Nozzles?
A: Forede prioritizes tactical superiority:
Engineered penetration: Turbojet tech overcomes airflow barriers (e.g., wind, updrafts) in industrial/exterior fires.
Firefighter safety: High-velocity stream maintains distance from extreme radiant heat.
Adaptable flows: Shift from 235 LPM (structural knockdown) to 60 LPM (precision overhaul) instantly.
Durability: Corrosion-resistant anodized coating withstands chemical/abrasive damage.
Q: How to Operate?
A: Firefighter Protocol:
1️⃣ ATTACH: Secure nozzle to charged hose line.
2️⃣ SELECT MODE:
Turbojet: Rotate collar forward for high-velocity spin.
Standard fog: Rotate collar backward for wide coverage.
3️⃣ SET FLOW: Adjust dial (60/130/235 LPM) per scenario:
60 LPM: Precision overhaul/hot spots.
235 LPM: Structural knockdown.
4️⃣ ENGAGE: Squeeze handle; direct turbine jet at fire base.
5️⃣ ADAPT: Switch modes/flows as fire behavior changes.
