Products Description

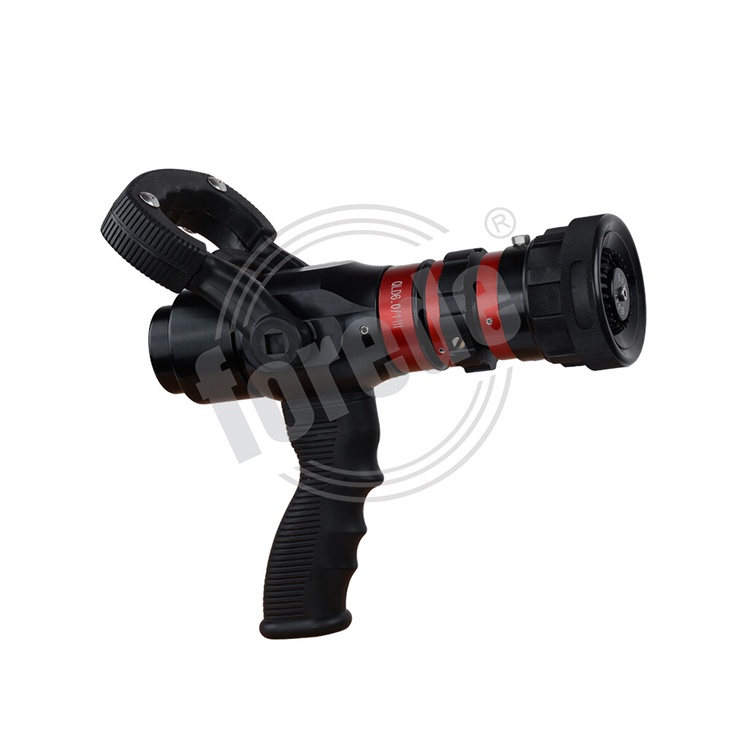

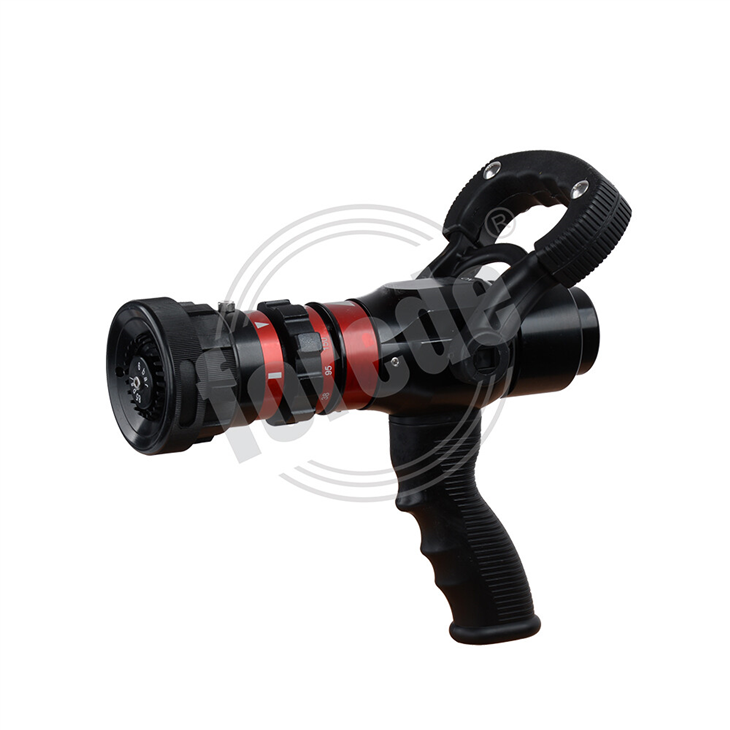

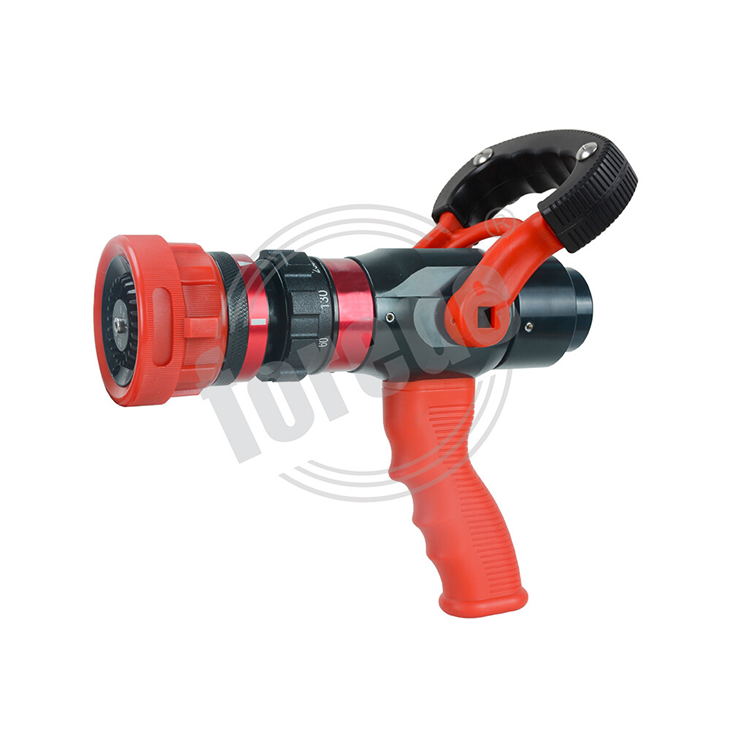

Water Nozzle Fire Fighting
The QLD6.0/1.0III Fire Handline Nozzle With Flow Settings has a selectable flow range at 6 bar of 15,30,45 and 60 litres per minute to meet the individual needs of the fire fighter at any given time but alternative flow rates are available
Features:
- Flow Rate: 60 - 130 - 235 LPM - Flush (Selectable);
Flow Rate
Working Pressure
Max.Reach@6Bar
Warranty
Specification
| Model | QLD6.0/4III | ||
| Flow rate | 60-130-235LPM-FLUSH(selectable) | ||
| Inlet size | 1.5" |
2" |
2.5" |
| Working pressure | 6 Bar | ||
| Jetting pattern | Fog, straight stream | ||
| Max.Fog angle | 110° | ||
| Coupling | Storz; NH; INST;GOST;Machino,etc. | ||
| Material | Hard anodized aluminum alloy | ||
Frequently Asked Questions
Frequently Asked Questions
Q: What is fire nozzle?
-
A:According to the function and parts, fire nozzle can be divided into nine types, they are jet spray fire nozzle, shut-off fire nozzle, multifunctional fire nozzle, selectable flow fire nozzle,automatic fire nozzle, defense fire nozzle, piercing applictor fire nozzle, and waterwall fire nozzle, foam nozzle.
Q:What about the lead time?
-
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q: How To Order ?
-
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a Pl for you to confirm the order details; Step 3, when we confirmedeverything, can arrange the payment; Step 4, finally we deliver the goods within the stipulated time.
Q:How water pressure influent fire nozzle?
-
A:Water pressure controls how far and how fast water moves as well as how deeply water penetrates burning materials. For firefighting, more flow rate of water available means more extinguishing agent to cool the fire's fuel. Each nozzle has an expected, or rated, gallonage at a rated pressure. For example, a nozzle may deliver 60 LPM at 6 Bar, and 475LPM at 7 Bar.
Q. How do you deliver the goods and how long does it take to arrive?
-
A: We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Railway also optional.
Main Product
Main Product:
Order Information
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Hot Tags: water nozzle fire fighting, China, manufacturers, suppliers, wholesale, price, 3 Inch Fire Hose Nozzle, Fire Truck Nozzle, Handline Fire Nozzle, Fire Branches And Nozzles, All Purpose Fire Nozzle, Forestry Fire Nozzle
1).Flow Rate:60-130-235 LPM - Flush (Selectable).
2).Jetting Pattern: Straight stream,Narrow fog,Wide fog.
3).1/4 turn from straight stream to wide fog.
4).Compatible with Quick Attach Foam Tube.
5).Coupling standard: Storz,NH,INST,GOST,Machino,etc.
