Sidewall Fire Sprinkler Head For Fire Fighting

Product Introduction:

K=5.6 FIRE SPRINKLER A fire sprinkler or sprinkler head is the component of a fire sprinkler system that discharges water when the effects of a fire have been detected, such as when a predetermined temperature has been exceeded. Fire sprinklers are extensively used worldwide, with over 40 million sprinkler heads fitted each year. In buildings protected by properly designed and maintained fire sprinklers, over 99% of fires were controlled by fire sprinklers alone.r.

Send Inquiry

Description

Technical Parameters

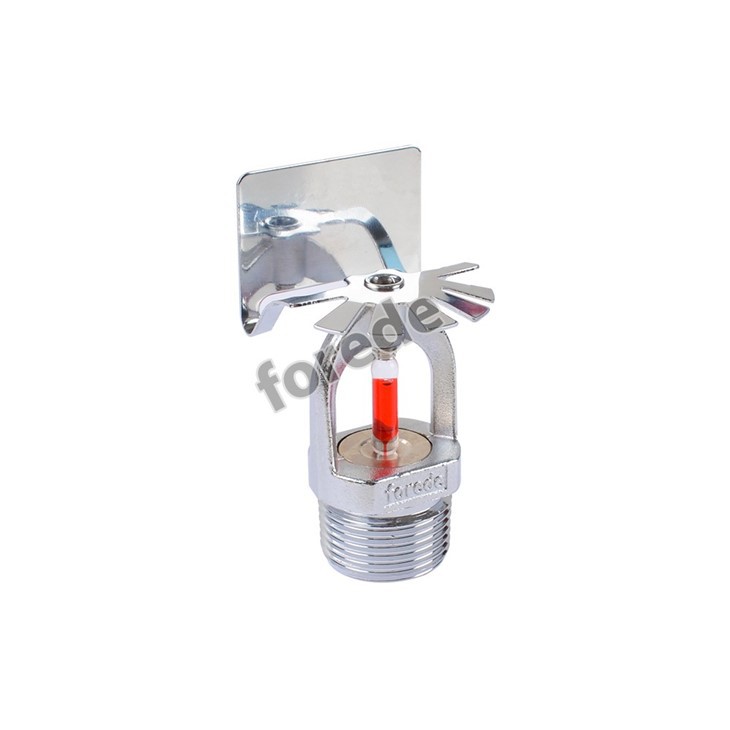

Sidewall Standard Fire Sprinkler

Sidewall fire sprinklers install along walls or beneath beams where ceiling piping is unavailable, or where aesthetic concerns or obstructions weigh against the use of other sprinkler types. Most are designed to protect small rooms, closets, or hallways and have a semicircular deflector that produces a crescent-shaped spray pattern. Horizontal sidewall sprinklers should only be installed below smooth, flat, They are used in hotels, restaurants, churches, and a range of commercial structures, and most sidewall fire sprinklers utilize a 1/2″ (12.7 mm) thread connection and feature a 5.6 K-factor.

Specification

Model Number	Size	K factor	Tempurature	Response Type	Glass Bulb
FRD003-57℃	1/2''(DN15)	5.6	57℃	Standard	5mm,Orange
FRD003-68℃	1/2''(DN15)	5.6	68℃	Standard	5mm,Red
FRD003-79℃	1/2''(DN15)	5.6	79℃	Standard	5mm,Yellow
FRD003-93℃	1/2''(DN15)	5.6	93℃	Standard	5mm,Green
FRD003-141℃	1/2''(DN15)	5.6	141℃	Standard	5mm,Blue
