Name: China Fire Extinguisher Foam Bladder Tank 6800 Leter Manufacturers, Suppliers - Wholesale Price - FOREDE
Brand: Forede
SKU: 243640698

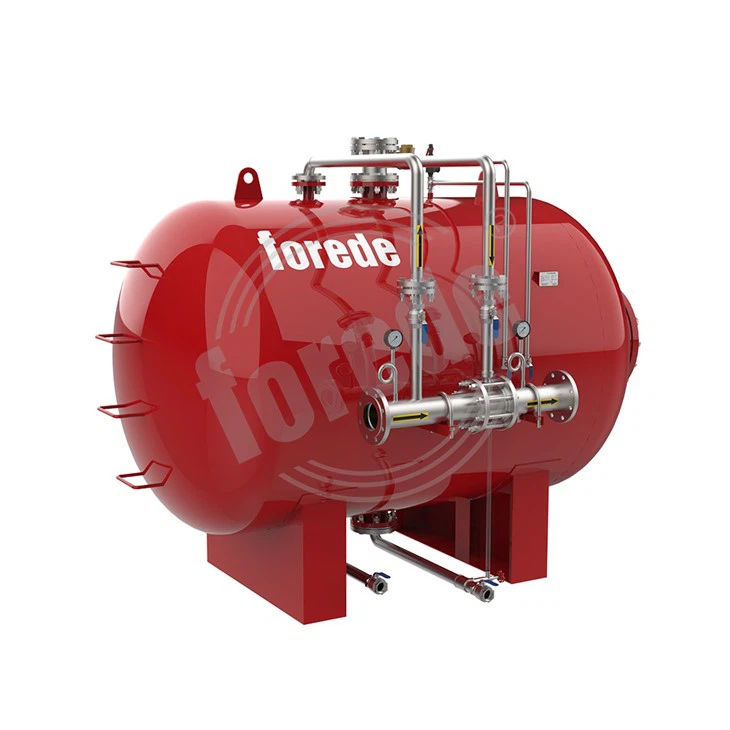

Fire Extinguisher Foam Bladder Tank 6800 Leter

Product Introduction:

Foam bladder tank, together with ratio controllers, form a balanced pressure proportioning system used to mix water and fire fighting foam together to generate an effective extinguishing medium.The bladder tank technology is a mixing method allows the water/foam ratio to remain stable by automatically adjusting to the variable flow rates and pressure conditions that may occur during system operation.This feature makes bladder tanks particularly suitable for multiple hazard systems, sprinkler systems and any other system operating under variable, non predictable, flow and pressure conditions.

Send Inquiry

Description

Technical Parameters

Products Description

Overview

Foam concentrate is often stored in a bladder tank system. FOREDE brand bladder tank containing a rubber bladder is used to store the foam concentrate. System water pressure is used to squeeze the bladder, providing fire-fighting foam concentrate at the same pressure to the foam proportioner. With bladder tank foam systems, no external power is required, and little maintenance is needed.

Products Description


Add the fill funnel to make it easier to pull the liquid;
All the standard pipe assembles are stainless steel 306;
Level scale display to understand liquid capacity more accurately;
Each valve is marked with an indicator label to avoid operating errors.

Products Parameters

Model Number	Capacity	Description	Working Pressure	Ratio	Flow Rate Range
PHYM-200	1000 Liters	Horizontal, Fixed	0.8-1.2MPa	3% or 6%	8-32 LPS
PHYM-5000	5000 Liters	Horizontal, Fixed	0.8-1.2MPa	3% or 6%	12-48 LPS
PHYM-10000	10000 Liters	Horizontal, Fixed	0.8-1.2MPa	3% or 6%	16-64 LPS
