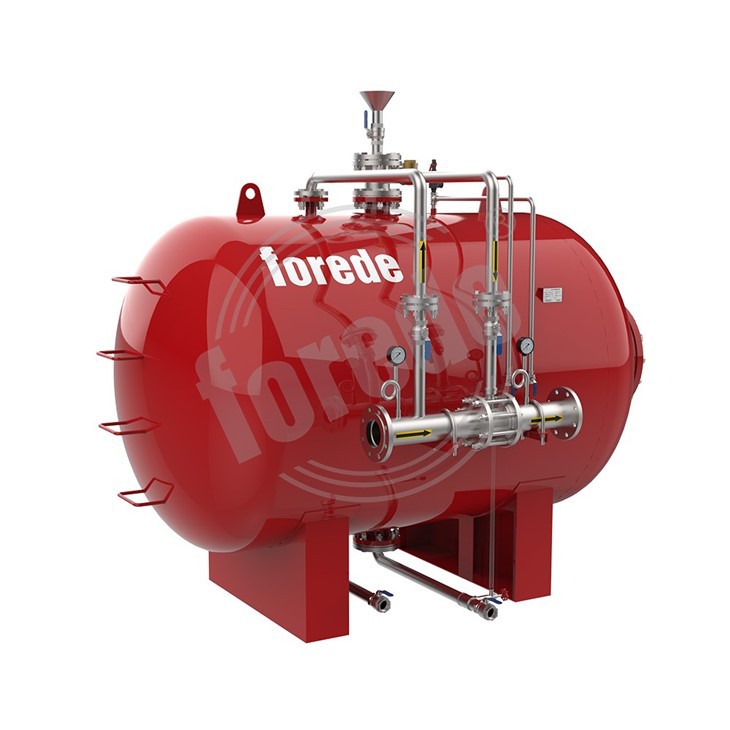

Name: Foam Bladder Tank For Fire Fighting
Brand: Forede
SKU: 240058191

Foam Bladder Tank For Fire Fighting

Product Introduction:

Foam bladder tank, together with ratio controllers, form a balanced pressure proportioning system used to mix water and fire fighting foam together to generate an effective extinguishing medium.The bladder tank technology is a mixing method allows the water/foam ratio to remain stable by automatically adjusting to the variable flow rates and pressure conditions that may occur during system operation.This feature makes bladder tanks particularly suitable for multiple hazard systems, sprinkler systems and any other system operating under variable, non predictable, flow and pressure conditions.

Send Inquiry

Description

Technical Parameters

Products Description

Overview

Horizontal foam bladder tank is a type of fire suppression system that is designed to store foam concentrate and dispense it when needed. These tanks are commonly used in industrial settings, chemical storage facilities, and buildings with high fire risk.

The tank consists of a horizontal cylindrical vessel, which is divided into two parts by a synthetic rubber bladder. One side of the bladder is filled with foam concentrate, while the other side is filled with water. When the system is activated, the water side of the bladder is pressurized and the foam concentrate is forced out through a discharge pipe.

Horizontal foam bladder tanks are very effective at extinguishing large fires in a quick and efficient manner. They are also very reliable, as the foam concentrate is stored inside the bladder and is not affected by external factors such as temperature or humidity.

Key Features

Add the fill funnel to make it easier to pull the liquid;
All the standard pipe assembles are stainless steel 306;
Level scale display to understand liquid capacity more accurately;
Each valve is marked with an indicator label to avoid operating errors.

Products Parameters

Model Number	Capacity	Description	Working Pressure	Ratio	Flow Rate Range
PHYM-200	1000 Liters	Horizontal, Fixed	0.8-1.2MPa	3% or 6%	8-32 LPS
PHYM-5000	5000 Liters	Horizontal, Fixed	0.8-1.2MPa	3% or 6%	12-48 LPS
PHYM-10000	10000 Liters	Horizontal, Fixed	0.8-1.2MPa	3% or 6%	16-64 LPS
