Products Description

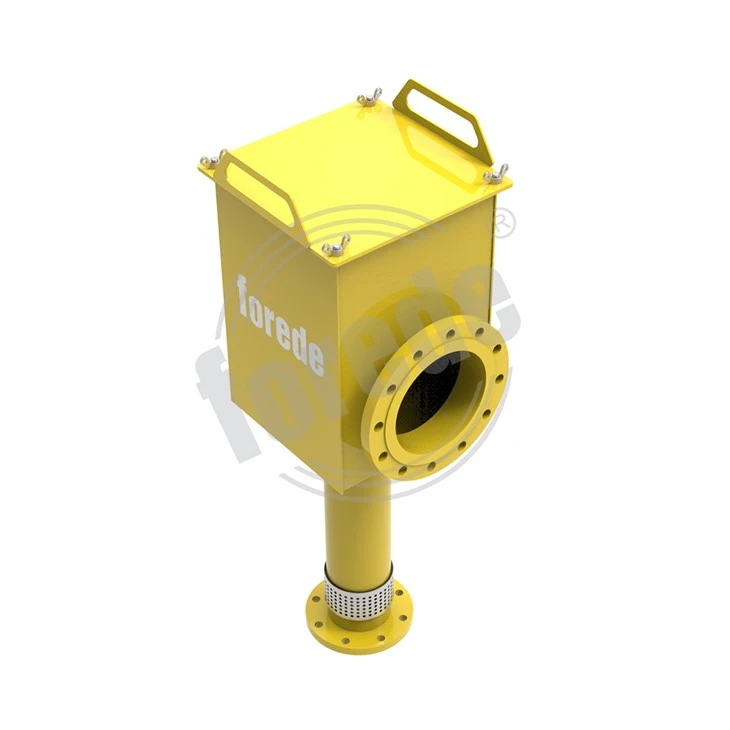

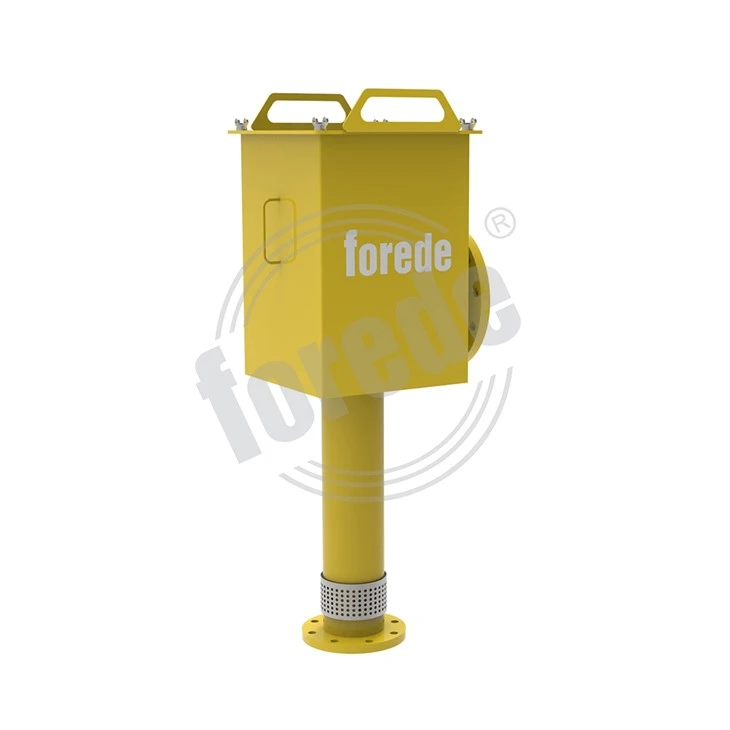

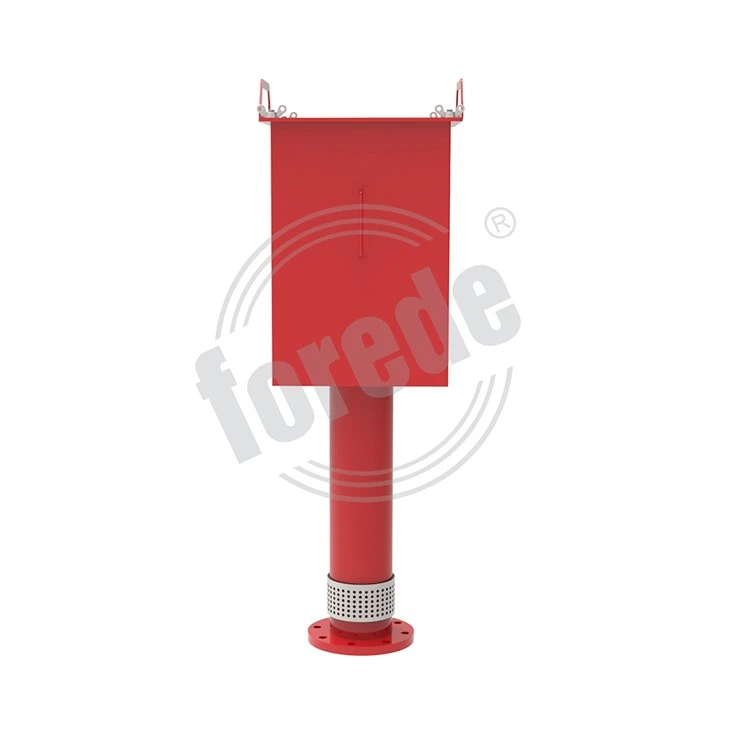

Low Expansion Foam Chamber
The foam chamber is a fire-fighting device installed on the tank wall of the upper ring plate of the oil tank to spray foam when the oil tank is extinguished. The spout is sealed with a thin glass sheet (or diaphragm) from the air in the tank to prevent the oil or gas in the tank from entering the foam chamber or fire-fighting pipeline.
Products Specification
| Material | Body | Carbon steel | ||
| Deflector | Carbon steel | |||
| Screws | 304 Stainless steel | |||
| Model | PCL4 | PCL8 | PCL16 | PCL24 |
| Flow rate | 4LPS | 8LPS | 16LPS | 24LPS |
| Working pressure | 0.3 - 0.6 MPa | |||
| Foam Expansion | >=6 times | |||
FAQ
Q:Is the sample provided for free?
A few small products like sprinkler decorative covers can be provided for free, but the buyer needs to pay for the shipping. Other products need to be confirmed according to the specific situation.
Q:How to mail the samples?
Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.
Q: What is your term and payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
forede Foam Extinguishing System Series
Foam Bladder Tank
Foam Concentrate
Foam Maker
Foam Inductor
Foam Sprinkler
Foam Nozzle
Foam Trolley/Foam Unit
Foam Trailer
forede Main Product
Our Main Products
Contact Us
How To Cooperate With Us?
Our address
No.278-1, Meiting Village, Meilin Sub-District,
Nan'An City, Quanzhou City Fujian Province China
Phone Number
+86 18750638978(Wendy)
sales4@forede.com
Hot Tags: vertical low expansion foam chamber, China, manufacturers, suppliers, wholesale, price, Foam Chamber Fire Fighting, Vertical Foam Chamber, Tank Foam Chamber, Inline Foam Inductor, Low Expansion Foam Chamber
Feature:
Expansion :Low expansion,≥ 5 Times;
Flange End: ANSI / BS4504 / GB/;
Main Material: Carbon Steel;
Installation Type: Vertical Installation;
Working Pressure Range: 0.3-0.7Mpa;
Rated Working Pressure: 0.5Mpa;
25% Liquid Drain Time : ≥ 120 s;
Surface Finishing : Epoxy Fire Red.
