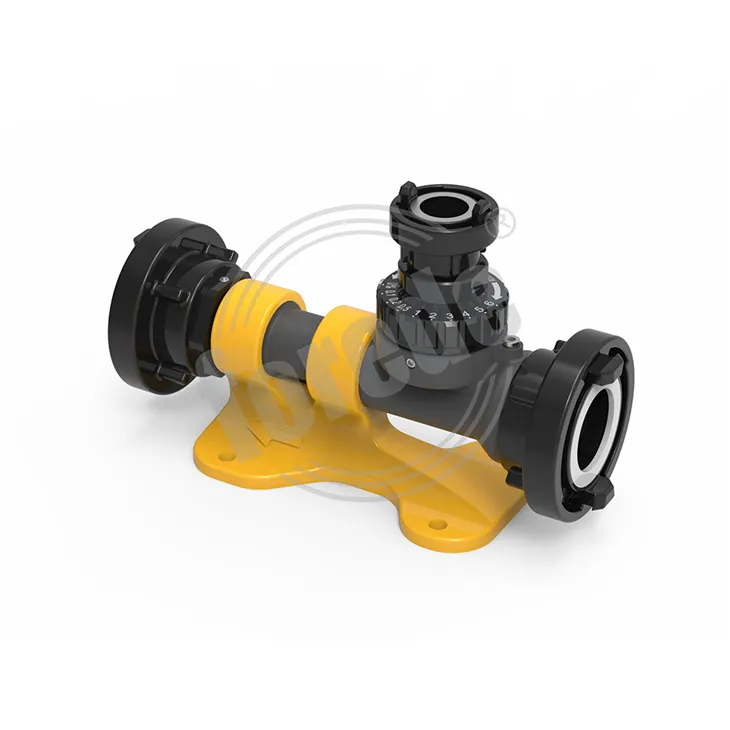

forede® Foam Eductor System

The forede® brand Foam proportioners are an essential piece of firefighting foam system equipment that can play a significant role in preventing disasters and saving lives. These devices mix water with foam concentrate to create a foam solution that can be used for extinguishing different types of fires. This technology has been widely used in the firefighting industry for many years, and it has proven to be highly effective in putting out fires quickly and efficiently.

One of the primary benefits of foam proportioners is their ability to reduce water usage while still achieving effective fire suppression. By mixing small amounts of foam concentrate with water, firefighters can create a thick foam blanket that can cover larger areas with less water than other extinguishing agents. This not only saves water but also reduces the environmental impact of firefighting operations.

Moreover, foam proportioners can be used in a wide range of firefighting situations, from small structure fires to large industrial fires. The foam solution created by these devices is highly versatile and can be used to extinguish fires involving flammable liquids, gases, and solids. It can also be used to create barriers that can prevent fire from spreading and protect surrounding structures and objects.

Black

Yellow

Red

Blue

Products Features

Coupling type: Instanteous,Storz,Gost,Machino,NH

Inlet and Outlet: 2" (DN50)

Foam Inlet:1" (DN25)
Material: Aluminum Alloy
Adjustable Ratios:0.1-0.2-0.5-1-2-3-4-5-6%
Working Pressure: 5 Bar
Max Pressure: 14 Bar

Application: Fire fighting

Technical Parameter

Number	Inlet & Outlet Size	Foam Inlet	Working Pressure	Mixing Ratios
PHF/C-4	2" (DN50)	1" (DN25)	5 Bar	0.1-0.2-0.5-1-2-3-4-5-6%
PHF/C-8	2" (DN50)	1" (DN25)	5 Bar	0.1-0.2-0.5-1-2-3-4-5-6%

FAQ

Q: What is a Foam Proportioner?

A:A Foam Proportioner is a device used to mix foam concentrate and water in the correct ratio to produce foam used in firefighting. It is an essential tool for fire foam system.

Q:How does a Foam Proportioner work?

A:A Foam Proportioner works by drawing in a specific amount of foam concentrate and mixing it with water to produce a foam solution. The foam solution is then applied to the fire, smothering it and preventing it from spreading.

Q:What is the benefit of using a Foam Proportioner?

A:Using a Foam Proportioner allows firefighters to apply foam efficiently and at the correct ratio, helping to extinguish fires quickly and safely. It also helps to conserve foam concentrate, making it more cost-effective.

Q:Can Foam Proportioners be used with different types of foam concentrate?

A:Yes, Foam Proportioners can be used with different types of foam concentrate. However, it is important to ensure that the correct mixing ratio is used for the specific type of foam concentrate being used.

Q: Are Foam Proportioners easy to use?

A:Foam Proportioners are designed to be easy to use, with simple controls and clear instructions. With proper training and practice, firefighters can quickly become proficient in using them.
