Products Description

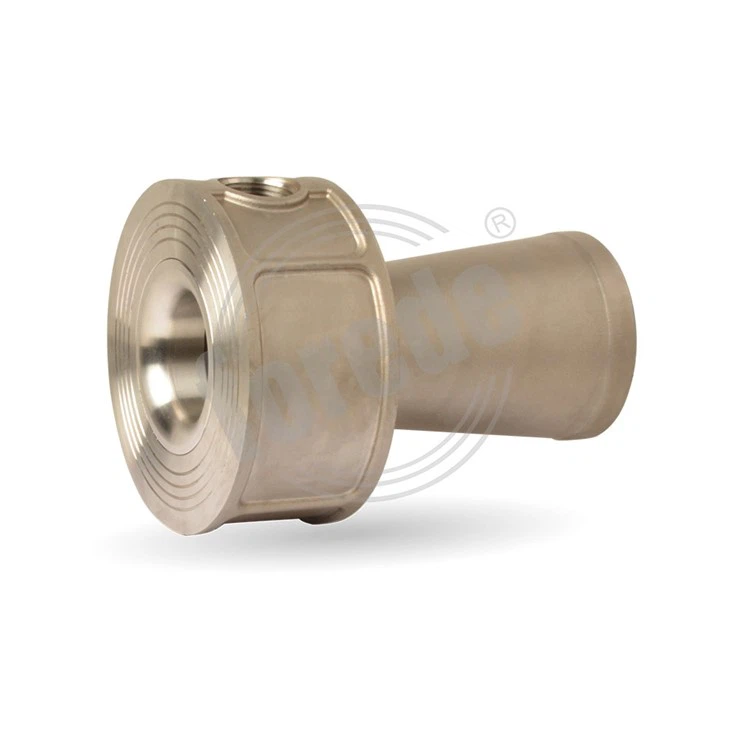

forede ® Ratio Control System
Key features of the forede ® Ratio Control System include a seat ring made of SS304 coated with tin for added durability and longevity. This ensures smooth operation and reliable performance.
With flow rates ranging from 50 to 400 LPM, 150 to 600 LPM, and 300 to 1400 LPM, the forede ® Ratio Control System offers versatility and flexibility to suit a wide range of flow rate requirements.
The system also offers the option of fixed or variable pick-up, allowing for customization and precision in controlling flow rates. With connection points available in 1½" and 2½" flange sizes, installation and integration into existing systems is simple and easy.
Its high-quality construction and customizable features make it a top choice for businesses looking for dependable and accurate flow control systems.
03
Products Feature
Body Material: Stainless Steel ;
Key Word: Ratio Control ;
Seat Ring: SS304 Coated With Tin;
Flow Rate: 50 to 400 LPM, 150 to 600 LPM, 300 to 1400 LPM ;
Fixed or Variable Pick-Up;
Connect Inlet & Outlet: 1½" Flange, 2½" Flange
Technical Parameter
forede ® Ratio Control System
forede ® Ratio Control System is a reliable and efficient solution for controlling flow rates in industrial settings.
|
Model Number |
Working Pressure |
Flow Rate |
Connecting Size |
Foam Solution Ratio |
| FRD-FP01 | 16 bar | 240LPM | 3" | 3% or 6% |
| FRD-FP02 | 16 bar | 360LPM | 4" | 3% or 6% |
| FRD-FP03 | 16 bar | 480LPM | 6" | 3% or 6% |
Frequently Ased Questiones
1. What is the body material of the forede ® Ratio Control System?
2. What is the seat ring material of the forede ® Ratio Control System?
3. What are the available flow rates for the forede ® Ratio Control System?
4. What are the options for connecting inlet and outlet of the forede ® Ratio Control System?
5. Is the foam solution ratio fixed or variable in the forede ® Ratio Control System?
Application Area
High-rise Buildings
Commercial Structures
Large Industrial Facilities
Factory Space
