Products Description
Firefighting Mobile Foam Unit

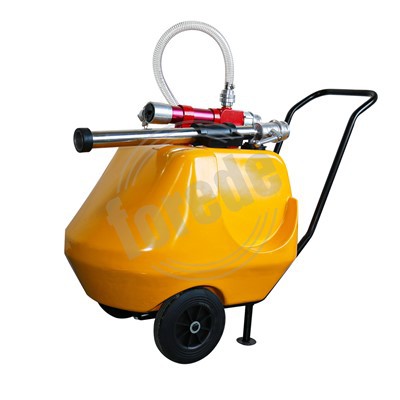

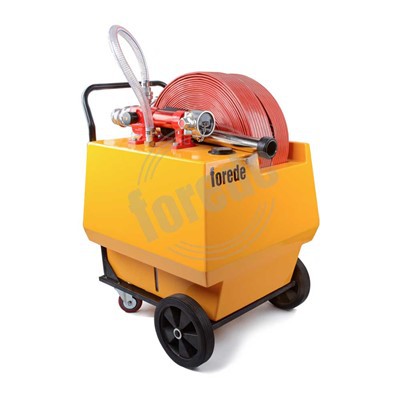

FOREDE PY/A Mobile Foam Unit is designed to provide mobile firefighting foam capability for various hazardous areas where flammable liquids are present. Common applications include tank farms and refineries, loading areas, chemical processing plants, diked areas, warehouse facilities, paint storage areas, and other manufacturing areas where flammable liquids are a hazard. The FOREDE Mobile Foam Unit is a highly maneuverable wheeled cart consisting of a carbon steel tank with two built-in hose storage locations, an eductor with metering valve, and two lengths of fire hose with a choice of foam nozzles.
FOREDE PY/A mobile foam unit Comes with foam making branch & foam inductor, Wheel made out of Carbon Steel body with rubber, foam concentrate storage tank, and two rolls of fire hose, It requires connection to a suitable water supply, filled with 3% foam concentrate. It is easy to operate, move and require minimum manpower.
Products Specification
| Model Number | Capacity | Working Pressure | Inlet& Outlet |
Foam Solution Ratio
|
FLow Rate |
|
PY4 / A100
|
100 Liters
|
0.6-0.8MPa
|
1.5 / 2 / 2.5"
|
0.5%,1%,,3%,6% adjustable
|
240 LPM
|
|
PY4 / A200
|
200 Liters
|
0.6-0.8MPa
|
1.5 / 2 / 2.5"
|
0.5%,1%,,3%,6% adjustable
|
240 LPM
|
|
PY8 / A300
|
300 Liters
|
0.6-0.8MPa
|
1.5 / 2 / 2.5"
|
0.5%,1%,,3%,6% adjustable
|
480 LPM
|
|
PY8 / A400
|
400 Liters
|
0.6-0.8MPa
|
1.5 / 2 / 2.5"
|
0.5%,1%,,3%,6% adjustable
|
480 LPM
|
|
PY8 / A500
|
500 Liters
|
0.6-0.8MPa
|
1.5 / 2 / 2.5"
|
0.5%,1%,,3%,6% adjustable
|
480 LPM
|
FAQ
Q:How many agents the company currently has overseas?
A:Currently we have 2 agents abroad. One in Israel and one in Maldives.
Q:How water pressure important?
A: Water pressure controls how far and how fast water moves as well as how deeply water penetrates burning materials. For firefighting, more flow rate of water available means more extinguishing agent to cool the fire's fuel. Each nozzle has an expected, or rated, gallonage at a rated pressure. For example, a nozzle may deliver 60 LPM at 6 Bar, and 475LPM at 7 Bar.
Q: What is your term and payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:How to make fixed fire water monitor stable?
There're Vertical & Horizontal lock which allow the operator to fix the monitor stablely and swing to any position.
Q.Do you have warranty?
A:Yes, all products have one year warranty.
Q.What's your payment terms?
A:We accept T/T, L/C, Western Union, Paypal,etc.
forede Foam Extinguishing System Series
Foam Bladder Tank
Foam Concentrate
Foam Maker
Foam Inductor
Foam Sprinkler
Foam Nozzle
Foam Trolley/Foam Unit
Foam Trailer
Order Information
Dear Customer,
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
* Contacts: Email: sales4@forede.com I Tel/WhatsApp: 008618750638978 I Wechat: 18750638978
Hot Tags: forede mobile foam unit for foam system, China, manufacturers, suppliers, wholesale, price, Fire Hose, Right Angle Landing Valve, Fire Fighting Hydrant System, Truck Fire Fighting Cannon, Forestry Fire Nozzle, Flanged Ball Check Valve
Features:
Body Material: Carbon Steel;
Eductor: Aluminium Alloy;
Foam Nozzle: SS304 Stainless steel, Aluminum ;
Fire Hose: 15m × 2 rolls;
Coupling : STORZ, NH, John Morris,GOST, Machino,etc
Surface Finishing : Painting
