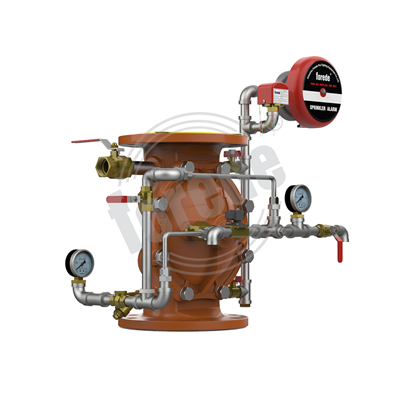

What Is Deluge Valve

Product Introduction:

The deluge alarm valve is a one-way valve that is opened by electric, mechanical or other methods, so that water can automatically flow into the sprinkler system in one direction and simultaneously alarm.

Send Inquiry

Description

Technical Parameters

The functions that the deluge valve group should have

1) There are two operation modes: automatic control and manual control.

2) It can monitor the water supply and outlet pressure.

3) The water supply of the system can be switched on or off.

4) It can receive electric signal to open the deluge valve electrically, and it can receive the signal of the transmission pipe to open the deluge valve hydraulically or pneumatically.

5) It can drive the hydraulic alarm to alarm.

6) It can display the open and close status of the deluge valve.

Material	Body	Ductile iron
	Diaphragm	NBR rubber
	Pipes	Stainless steel 304 pipe,cooper pipe
	Ball valve & strainer & check valve	Brass
	Water motor gong	Stainless steel 304
Working pressure	12 bar
Sealing testing pressure	24 bar
Applicable temperature	4°C to 70°C
Installation	Vertically or horizontally
Flow switch contact capacity	DC24V,0.5A
Solenoid valve Voltage	DC24V
Connection	Flange × Flange
Available Size	DN50 thru DN250 (2" thru 10")

Hot Tags: what is deluge valve, China, manufacturers, suppliers, wholesale, price, Flange Type Dry Alarm Valve, Groove End Deluge Valve, Groove Type Deluge Valves, Deluge Valve For Fire Protection

1) Ductile iron construction valve body,less weight and extra strength.

2) Available for electric operation,hydraulic operation,manual operation.

3) The all moving parts can be serviced without removing the valve from the installed position.

4) Simple design for easy installation and operation.

5) Vertical or horizontal installation.

6) CCCF certificated.
