Automatic Fire Monitor/Cannon

Automatic Fire Monitor/Cannon
Product Introduction:
ZDMS0.8/S-W FOREDE Automatic Fire Monitor has the advantages of wide application range, easy operation, fast response speed and good fire extinguishing effect. Compared with traditional manual fire extinguishing methods, the response speed of the FOREDE Automatic Fire Monitor is faster because it can detect the fire in time and carry out corresponding fire extinguishing operations. At the same time, the FOREDE Automatic Fire Monitor does not require manual operation, reducing the risks to workers and improving the safety factor.
Send Inquiry
Description
Technical Parameters
Products Description

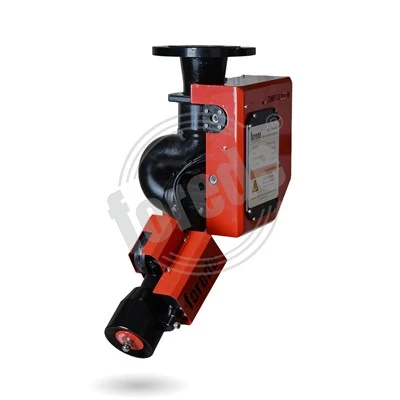

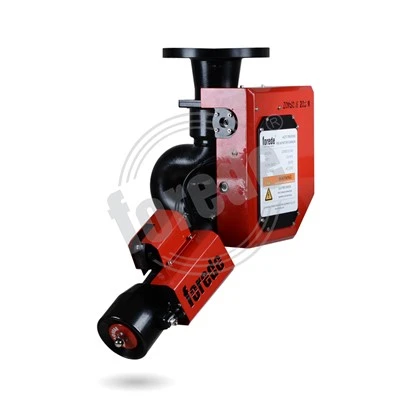

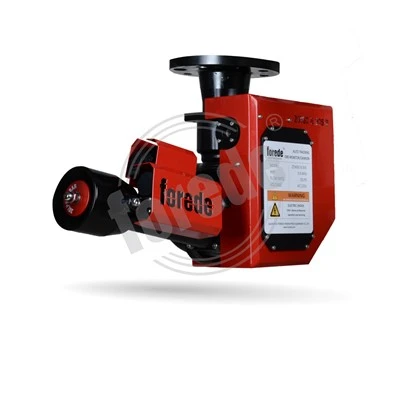

Automatic Fire Monitor/Cannon

The FOREDE Automatic Fire Monitor/Cannon is a modern fire-fighting equipment that can use advanced technology to greatly improve the efficiency of fire extinguishing and effectively prevent the occurrence of fires.



This kind of FOREDE Automatic Fire Monitor/Cannon can realize fast and accurate fire source positioning, and can also be automatically controlled to achieve fire extinguishing. At the fire scene, the fire extinguishing equipment will automatically detect information such as ambient temperature, smoke concentration, and flame, and automatically start the fire extinguishing equipment.



There are many advantages to self-seeking fire extinguishing devices. First, it can automatically search for fire sources and start fire extinguishing equipment immediately after discovering fire sources. Secondly, it can extinguish fires in the early stages of fires, prevent the spread of fires, and reduce losses caused by fires. In addition, it can promptly notify the fire rescue department and help rescue personnel achieve rapid response. Most importantly, this equipment protects people's lives and property.



In short, the FOREDE Automatic Fire Monitor/Cannon is a very important fire-fighting equipment. It adopts advanced technology to improve the efficiency of fire extinguishing, prevent the occurrence of fires, and protect people's lives and property safety.

4

Aluminum Alloy
Material
Auto/Wireless/ Manual
Control Way
SS
Spray Pattern
Water
Medium
Technical Parameter
Model
ZDMS0.6/ 5S
ZDMS0.8/ 10S

Flow Rate

300 LPM

600 LPM

Working Pressure

8 Bar 8 Bar
Max protection radius 30 meters 35 meters
Monitoring radius 50 meters 50 meters

Installation Height

advice 6-15m
tartgeting time ≤30 S

Max Range Of Motion

-90° to +30° Vertically, 360° Rotation

Power supply AC 220V is standard

Waterway Size

2.5'' (65mm)

Monitor Outlet

2.5'' nH male thread

Monitor Inlet

Flange 4" BS4504 is standard ( other sizes & standards are available )

Material

Monitor & Nozzle - Hard coated anodized aluminium alloy

Detector type infrared ray
Communication Mode RS485



FAQ

Q: What's the MOQ?

A: MOQ=1 Set

Q: What's the price?

A: Email to sales1@forede.com or call to 0086 13107856309 ( same whatsApp), or Wechat: 13107856309

Q: What's the production time?

A: Based on quantity, generally 15-20 days.

Q: What's the product brand? OEM available?

A: " forede " brand and OEM available, please specify when ordered.

Q: Where is the " FOREDE " from?

A: It's Chinese Brand original.

Q: How long the warranty time?

A: 12 months from starting installation

Q: Can we buy spare parts in the future for replacement?

A: " forede " is doing a long-term bussiness with customers, will always offer after-sales service.

Q: What's the products certification?

A: ISO and CE
Contact US



How To Contact With Us?

Our address

NO.278-1, MEITING VILLAGE, MEILIN SUB-DISTRICT, NAN'AN CITY, QUANZHOU CITY, FUJIAN PROVINCE, CHINA.

Phone Number

0086-13107856309 (whatsApp)

202311171542371



About US

Work Shop View - Fire Nozzle & Monitor





54B506FAC3F6E87FEF960D1BD841E880

940FFD78F493FE1BC1547D096D24D1DA

B8E1EFFBA9D9853465091DDDFE7B938B

F7E6E813BA30883B64A4E5EFC9E6C2FC

A05E2FA71D8B548DE50A5CE3802D0925

QQ20210715151955
QQ20210715152005

QQ20210715152017




Hot Tags: automatic fire monitor/cannon, China, manufacturers, suppliers, wholesale, price, Remote Control Water Cannon, Standard Spray Sprinkler Head, Explosion Remote Fire Monitor, Fire Monitor, Automatic Scanning Fire Monitor, Automatic Scanning Positioning Fire Monitor

- Hard anodized aluminum alloy construction

- Straight Stream nozzle

- Vertical travel of 120°,from -90° to +30°

- 360° rotation horizontally

- Optional power supply  100-230AC
