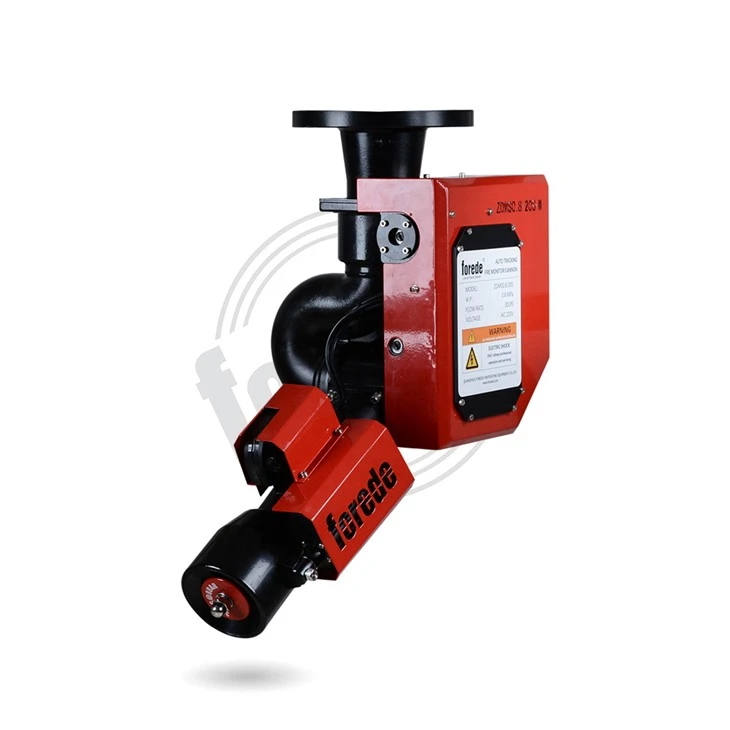

Products Description
- Hard anodized aluminum alloy construction;
- Laser positioning indication, high-definition screen monitoring;
- Straight stream & Fog or Straight stream nozzle;
- Vertical travel of 120°,from -90° to +30°;
- 360° rotation horizontally;
- Electric control jetting pattern: Straight stream,Fog;
- Electric.driver and control unit box are waterproof;
- Optional power supply 220V AC.
.
| Model |
ZDMS0.8 /20S-W |
ZDMS0.8 /30S-W |
|
Working Pressure |
8 bar |
|
|
Flow Rate |
1200 LPM |
1800 LPM |
|
Jetting Radius |
56 m |
62 m |
|
Monitoring Radius |
80 m |
|
|
Max Protection Radius |
50 m |
55 m |
|
Mounting Height |
8~15 m |
|
|
Targeting Time |
≤60 S |
|
|
Swing Horizontally |
360° |
|
|
Elevate Vertically |
-90° to +30° |
|
|
Inlet |
2" BS Flange, others size and standard available |
|
|
Detector Type |
Infrared ray&UV sensor technology |
|
|
Communication Mode |
RS485 |
|
|
Power Consumption |
Monitoring 1W, Detecting 50W |
|
Products Question
Q. Do your offer free sample for your clients?
A: Yes, we offer free sample for many of the products
Q. What's the MOQ of your products?
A: Our MOQ is one (1) piece/set.
Q. What's your payment terms?
A: We accept T/T, L/C, Western Union, Paypal,etc.
Q. How long is the delivery time?
A: Usually around 15 days after payment.
How to contact us?
Our address
Nan'an City, Quanzhou City Fujian PRC-china
Phone Number
Hot Tags: fire system monitoring companies, China, manufacturers, suppliers, wholesale, price, Horizontal Foam Bladder Tank, Self Inducting Water Foam Monitor, Medium Expansion Foam Branch Pipe, Portable Ground Fire Monitor, FM 200 Fire Suppression System, Fire Fighting Foam 3
SS304 stainless steel construction;
Flow Rate: 80 LPS (Automatic Nozzle);
Jetting Pattern: Straight stream,Fog;
350° rotation horizontally;
30° to +90° elevate vertically;
Coupling standard: GOST,STORZ,Instantaneous,NH,etc.
