Product Introduction:
The PS10/20-50AH model of stainless steel water cannon fire monitor is capable of delivering a flow rate of between 1200-3000 LPM, which can be adjusted to suit the requirements of the situation. At a working pressure of 10 Bar, the maximum reach of this monitor is an impressive 70 meters at 3000 LPM. This makes it ideal for use in large-scale industrial environments and other situations where a high-volume of water is required.
Send Inquiry
Description
Technical Parameters




Products Description

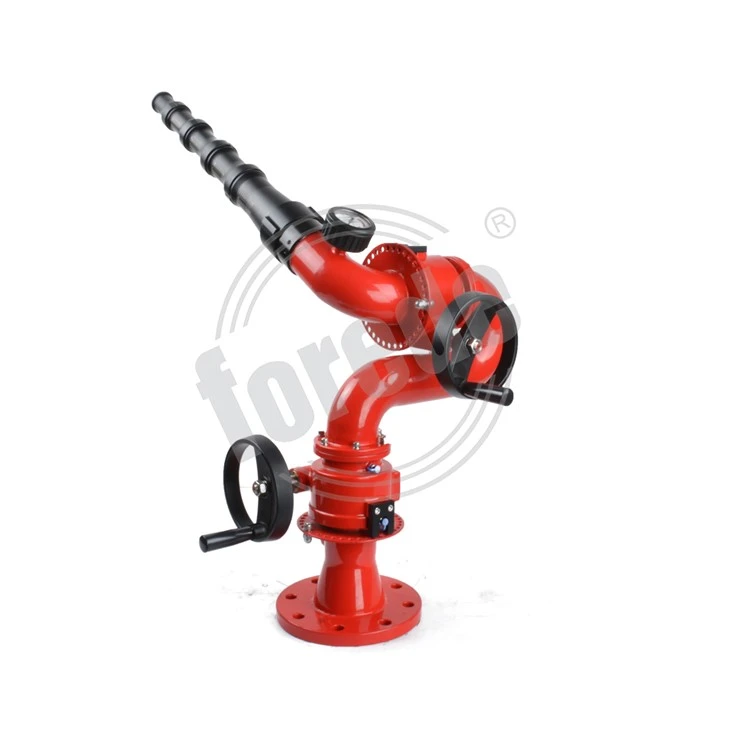

Fixed Manual Fire Monitors-Stainless Steel Water Cannon Fire Monitors

The PS10/20-50AH model of stainless steel water cannon fire monitor is capable of delivering a flow rate of between 1200-3000 LPM, which can be adjusted to suit the requirements of the situation. At a working pressure of 10 Bar, the maximum reach of this monitor is an impressive 70 meters at 3000 LPM. This makes it ideal for use in large-scale industrial environments and other situations where a high-volume of water is required.


The monitor has a range of movement capabilities that allow it to cover a wide area. It has a maximum range of -60° to +90° vertically and 360° rotation. This means that a firefighter can use the monitor to target specific areas of the fire, making it easier to contain and extinguish.



The waterway size of the monitor is 2.5" (65mm), while the outlet is 2.5" (65mm) NH male thread. The inlet is flange 3" BS4504, which is a standard size. However, other sizes and standards are available to meet the needs of different environments.



The monitor is made from SS304 stainless steel, which is durable and resistant to corrosion. The nozzle and hand wheel are made from aluminium alloy, which is lightweight and easy to use. This combination of materials ensures that the monitor is both sturdy and easy to maneuver.

  • 2
    Stainless Steel Water Cannon Fire Monitors
  • 4
    Stainless Steel Water Cannon Fire Monitors
  • 3
    Stainless Steel Water Cannon Fire Monitors

Products Detailed



d1d2216ee873c91a1724bc33af2a0a60
Angle
d1d2216ee873c91a1724bc33af2a0a60
Angle

Technical Parameter

What Are The Types Of Stainless Steel Water Cannon Fire Monitors Heads?



Stainless steel water cannon fire monitors are essential firefighting tools that play a critical role in ensuring fire safety. These monitors can discharge large amounts of water, foam, or other fire suppression agents to extinguish fires and keep people and property safe. Stainless steel is a popular material choice for these monitors due to its durability, resistance to corrosion, and ease of maintenance.



There are several types of stainless steel water cannon fire monitor heads available in the market today. These include:



1. Fixed Monitor Heads: These are stationary fire monitors that are mounted on a fixed structure such as a building or a fire truck. Fixed monitor heads can discharge up to thousands of gallons of water per minute, making them ideal for large-scale fire suppression operations.



2. Portable Monitor Heads: Portable monitor heads are designed for use in areas where fixed monitors are not available or practical. They can be carried to the site of the fire and connected to a water source using hoses. Portable monitor heads are usually smaller than fixed ones, but they are still capable of delivering high volumes of water or foam.



3. Oscillating Monitor Heads: An oscillating monitor head is a type of fire monitor that can move from side to side, covering a wide area. This type of monitor is commonly used in areas where a fixed or portable monitor is unable to cover the entire fire area adequately.



4. Remote-Controlled Monitor Heads: These monitor heads are equipped with remote control systems that enable firefighters to steer them from a safe distance. This type of monitor head is commonly used in high-risk areas such as chemical plants, oil rigs, and other hazardous environments.

Model Number

PS10/20-50AH

Flow Rate

1200-3000 LPM adjustable

Working Pressure

10 Bar

Max. Reach @ 10 bar

70 meters @ 3000 LPM

Max Range Of Monitor

-60° to +90° Vertically, 360° Rotation

Waterway Size

2.5"(65mm)

Monitor Outlet

2.5" (65mm) NH male thread

Monitor Inlet

Flange 3" BS4504 is standard ( other sizes & standards are available )

Material

Monitor - SS304 stainless steel

Nozzle & Hand wheel - Aluminium alloy

Application Area







QQ20240401145245

Rescue Services

22

Residential Buildings



33

Industrial Settings

44

Public Space


Frequently Asked Questions

Q: Can I choose the specifications of the fire monitor?

A: You can choose according to your needs.

Q: How to Use Fire Monitor?

A: 1. Connect the Monitor 2. Position the Monitor 3. Adjust the Flow 4. Aim the Nozzle 5. Monitor the Fire

Q: Can the Monitor Head of the Fire Monitor Be Replaced?

A: Yes, ensure that the fire equipment is fully operational only,the monitor head of a fire monitor can be replaced.

Q: What Are the Flange Standards for Fire Monitors?

A: The most commonly used flange standards for fire monitors include BS4504, ANSI150, GB, etc.

forede® Fire Monitor System Series
图片尺寸 210x210
Title
Title
Title
Title
图片尺寸 210x210
Title
Title
Title
Title







forede® Main Products

How to contact us?
How To Cooperate With Us?

Our address

Nan'an City, Quanzhou City Fujian PRC-china

Phone Number

2





Hot Tags: Stainless Steel Water Cannon Fire Monitors, China, manufacturers, suppliers, wholesale, price, BS Hydrant Valve, BS Angle Landing Valve, Flange Signal Gate Valve, Deluge Valve For Fire Protection, Signal Butterfly Valve, Wet Riser Breeching Inlet



Features:

304 Stainless Steel construction;

Flow Rate: 20-50 LPS (Stacked Tips Adjustable);

Jetting Pattern: Straight stream;

Flange standard: BS4504,ANSI150,GB,etc.
