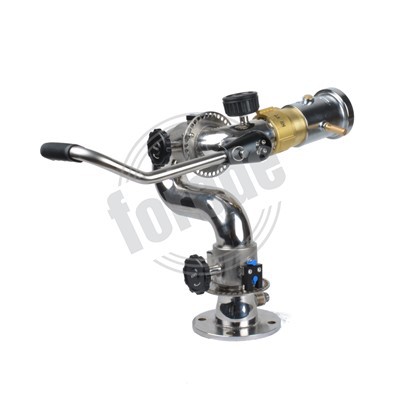

The FOREDE® Brand PS10/20-40W-T as Fire Fighting Monitor, it provides good long jet range and stable quality, the fire monitor nozzle can be adjustable(1200-1800-2400 LPM) or constant nozzle(1200 LPM or 1800 LPM or 2400 LPM).
A lightweight and highly durable flow-efficient monitor due to the Aluminum Alloy with Hard Anodized workmanship. PS10/20-40W-T with few and easy maintenance, suitable for good range of Industries.
FEATURES
- Light aluminum alloy construction
- Elevation travel of 115°, From -45° To +70°
- 360° Rotation Horizontally
- Stainless steel handle tiller control
- Nozzle has a built-in Stream Sharper
- Available for straight stream and Fog pattern
- Long service and easy repair
- Liquid-filled pressure gauge
- Complete with elevation and horizontal locking device
- Complete with water drain valve
- Three patterns for flow rate from 1200 up to 2400 LPM
- Water Jetting Range: Max ≥60 meters
-
Working Pressure: 8 bar (0.8MPa)
| Model | PS10/20W-T | PS10/30W-T | PS10/40W-T | PS10/20-40W-T |
| Flow Rate | 1200LPM | 1800LPM | 2400LPM | 1200-1800-2400LPM Selctable |
| Working Pressure | 8bar | 8bar | 8bar | 8bar |
| Water Jetting Range | 45meters | 55meters | 60meters | 60meters |
| Max. Fog Angle | 120° | |||
|
Max. Range of Motion |
-45°+70° Vertically, 360° | |||
| Waterway Size | 2.5''(65mm) | |||
| Monitor Outlet | 2.5''(65mm)NH male thread | |||
| Monitor Inlet | Flange 4'' BS4504 is standrad (other sizes& standrad are available) | |||
| Material |
Monitor& Nozzle - Hard coated anodized aluminium alloy
Tiller- SS304 Stainless Steel |
|||
Order Information
FAQ
Q:How water pressure important?
A: Water pressure controls how far and how fast water moves as well as how deeply water penetrates burning materials. For firefighting, more flow rate of water available means more extinguishing agent to cool the fire's fuel. Each nozzle has an expected, or rated, gallonage at a rated pressure. For example, a nozzle may deliver 60 LPM at 6 Bar, and 475LPM at 7 Bar.
Q: What is your term and payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:How to make fixed fire water monitor stable?
There're Vertical & Horizontal lock which allow the operator to fix the monitor stablely and swing to any position.
Hot Tags: tiller control fire water cannon, China, manufacturers, suppliers, wholesale, price, Fire Hydrant Water Monitor, Water Cannon, Industrial Fire Water Cannon, Water Foam Monitor, Fire Fighting Water Monitors, Fire Monitor Water Cannon
Features:
- Aluminium alloy construction,hard coated anodized;
- Flow Rate:Constant or Selectable 20 - 30 - 40 LPS;
- Jetting Pattern: Straight stream,Fog;
- 360° rotation horizontally;
-45° to +70° elevate vertically;
- Flange standard: BS4504,ANSI150,GB,etc.
