Products Description

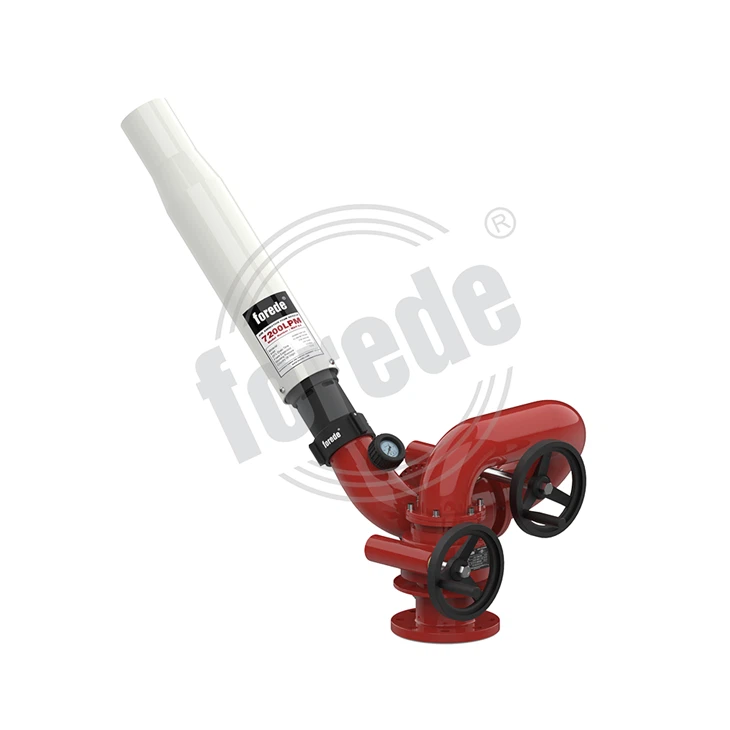

Fixed Manual Fire Monitors- Fire Marine Monitor
This Fire Marine Monitor is an advanced and reliable fixed manual water monitor, which is one of the essential equipment for fire trucks and boats. It can provide you with a large amount of efficient fire-fighting water in critical moments, allowing you to deal with fires and dangerous situations with confidence.
The flow rate of Fire Marine Monitor reaches 6000LPM or 7200LPM, which can transmit water to a distant location in a short time. Its maximum spray distance can reach 90 meters or even 95 meters at 10Bar water pressure, which is enough to cover a large area of the fire scene.
The high-pressure pump and valve used in this device have extremely strong durability and stability, which can not only be used for a long time but also require almost no maintenance. The operation is simple and intuitive, and you only need to control the rotation and spray direction of the water monitor through the manual control switch.
Products Detailed
Technical Parameter
What Is The Relationship Between The Water Way Size And Flow Rate Of A Fixed Manual Fire Marine Monitor ?
The waterway size and flow rate of a Fixed Manual Fire Marine Monitor are directly related. The size of the waterway determines the maximum flow rate that can be achieved by the monitor. Generally, larger waterways allow for higher flow rates. This is because a larger waterway can accommodate more water volume, allowing greater pressure and flow to be maintained.
Therefore, it is essential to select the appropriate waterway size for the desired flow rate when choosing a Fixed Manual Fire Marine Monitor. It should be noted that the flow rate may also be affected by other factors such as the elevation of the monitor and the water pressure available.
|
Model |
WFU3.AF100 |
WFU3.AF120 |
|
Flow Rate |
6000LPM |
7200LPM |
|
Working Pressure |
0.8 MPa |
0.8 MPa |
|
Max Working Pressure |
1.6 MPa |
1.6 MPa |
|
Throw Range(water) |
≥ 90 m |
≥ 95 m |
|
Throw Range(foam) |
≥ 85 m |
≥ 90 m |
|
Horizontal Angle |
0°~330° (angle customized) |
|
|
Elevation Angle |
-45°~+75° (angle customized) |
|
|
Waterway Size |
4'' (DN100mm) |
|
|
Outlet |
3.5'' NH |
|
|
Inlet |
4''/6'' BS4504 PN16 Flange, others customized |
|
Application Area
Rescue Services
Residential Buildings
Industrial Settings
Public Space
Frequently Asked Questions
Q: Can I choose the specifications of the fire monitor?
Q: How to Use Fire Monitor?
Q: Can the Monitor Head of the Fire Monitor Be Replaced?
Q: What Are the Flange Standards for Fire Monitors?
