Products Description

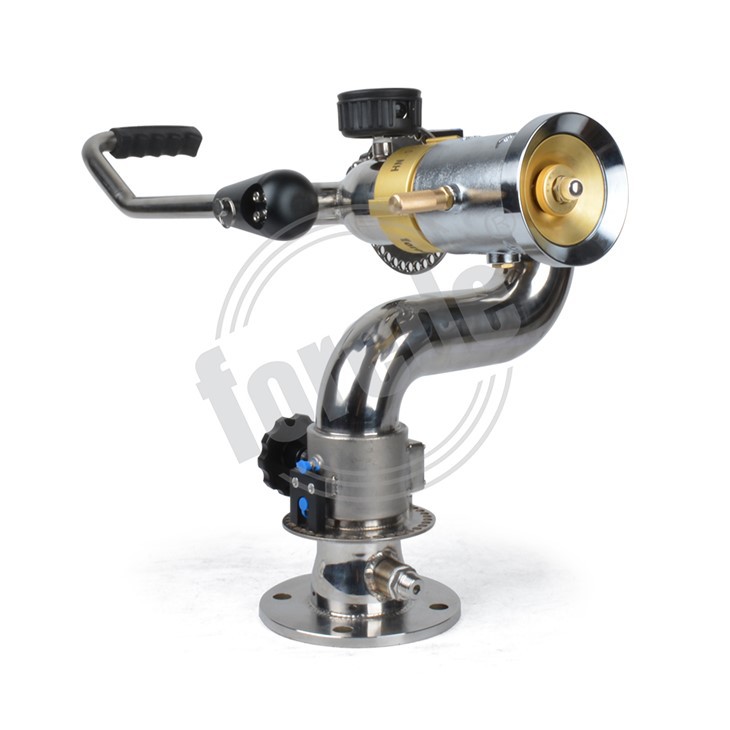

Fixed Manual Fire Monitors-geared Water Foam Monitor
Our PL10/24-T model has a flow rate of 1440 LPM and can jet foam up to 42 meters. The PL10/32-T boasts a flow rate of 1920 LPM and can shoot foam up to 48 meters. For even more powerful coverage, the PL10/40-T and PL10/48-T models have flow rates of 2400 LPM and 2880 LPM and can shoot foam up to 55 and 60 meters, respectively.
Each of our Fire Protection Water Cannons is capable of working at a pressure of 10 bar, ensuring maximum performance when you need it most. They also come equipped with outlets measuring 2.5 inches NH for added convenience.
With foam expansion rates of at least 6 times, our cannons are guaranteed to deliver the protection you need in any fire emergency situation. Plus, with water jetting ranges of up to 70 meters, you can rest assured that our cannons will reach even the most inaccessible areas.
Technical Parameter
What Is The Relationship Between The Pressure And Flow Rate Of Fire Protection Water Cannons?
The pressure and flow rate of Fire Protection Water Cannons are directly related, as they both play a vital role in the efficiency of the cannon. As water is ejected from the cannon, the pressure of the water determines the initial velocity of the water stream, while the flow rate determines the volume of water that is expelled. Together, these factors determine the overall effectiveness of the cannon in extinguishing fires.
Higher pressure means that the water will travel faster and with greater force, which can be advantageous when dealing with larger or more stubborn fires. Similarly, a higher flow rate means that more water is being expelled, which can be crucial when fighting particularly intense fires that require a significant amount of water in a short amount of time.
However, it is important to note that the relationship between pressure and flow rate is not always linear. In some cases, increasing pressure may actually decrease the flow rate, and vice versa. This is why it is important to carefully balance these variables when designing or operating Fire Protection Water Cannons.
|
Model |
TFS1.SF020 |
TFS1.SF030 |
TFS1.SF040 |
TFS1.SS040 |
|
Flow Rate |
1200LPM |
1800LPM |
2400LPM |
1200-1800-2400LPM |
|
Working Pressure |
0.8 MPa |
0.8 MPa |
0.8 MPa |
0.8 MPa |
|
Max Working Pressure |
1.6 MPa |
1.6 MPa |
1.6 MPa |
1.6 MPa |
|
Throw Range(water) |
≥ 50 m |
≥ 60 m |
≥ 65 m |
≥ 50-65 m |
|
Throw Range(foam) |
≥ 45 m |
≥ 55 m |
≥ 60 m |
≥ 45-60 m |
|
Horizontal Angle |
0°~330° (angle customized) |
|||
|
Elevation Angle |
-45°~+75° (angle customized) |
|||
|
Waterway Size |
2.5'' (DN65mm) |
|||
|
Outlet |
2.5'' NH |
|||
|
Inlet |
3''/4'' BS4504 PN16 Flange, others customized |
|||
Application Area
Rescue Services
Residential Buildings
Industrial Settings
Public Space
Frequently Asked Questions
Q: Can I choose the specifications of the fire monitor?
Q: How to Use Fire Monitor?
Q: Can the Monitor Head of the Fire Monitor Be Replaced?
Q: What Are the Flange Standards for Fire Monitors?
