Products Description

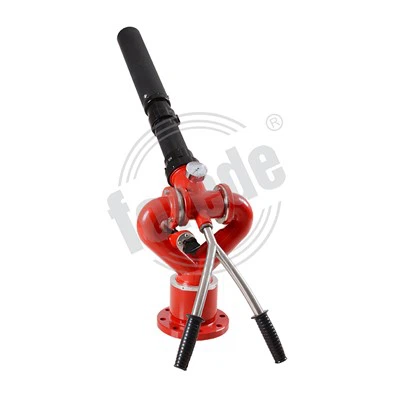

Manual Fire Monitor Handwheel Control
Forede WFS2.AA080 Series fire monitor is made of stainless steel, while the nozzle is made of aluminium alloy. Fire Water Monitor Manufacturers is a high volume flow rate manual control fixed fire water monitor. With a handle, operator can change the direction of this fire water monitor by vertically elevate or horizontal rotate.
Products Specification
| Material | Body | SS304 Stainless steel | ||
| Nozzle | Hard Anodized Aluminum alloy | |||
| Handwheel | Aluminum alloy | |||
| Working pressure | 8 Bar | |||
| Max. working pressure | 16 Bar | |||
| Jetting Range | 85 meters @ 8 bar | |||
| Flow Range | 0 - 80 LPS, Automatic | |||
| Range of the monitor | 360°horizontal rotation,-45°/+75°vertical elevate | |||
| Water way | 3"(80mm) | |||
| Inlet | Flange 4" (DN100) | |||
| Outlet | 2.5" NH | |||
FAQ:
Q:Can I have a sample order?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: How do you deliver the goods and how long does it take to arrive?
A:We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Railway also optional. In fact, the delivery method depends on the quantity.
Q:Is it OK to OEM ?
A:A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Recommend Product
Hot Tags: manual fire monitor handwheel control, China, manufacturers, suppliers, wholesale, price, Automatic Fire Fighting Nozzle, Fire Truck Fire Monitor, Fixed Water Monitor, Manual Water Cannon, Multi Purpose Fire Nozzles, Standard Response Standard Spray Sprinklers
FEATURES
- Light aluminum alloy construction
- Elevation travel of 115°, From -45° To +70°
- 360° Rotation Horizontally
- Stainless steel handle tiller control
- Nozzle has a built-in Stream Sharper
- Available for straight stream and Fog pattern
- Long service and easy repair
- Liquid-filled pressure gaugemplete with elevation and horizontal locking device
- Complete with water drain valve
- Three patterns for flow rate from 1200 up to 2400 LPM
- Water Jetting Range: Max ≥60 meters
- Working Pressure: 8 bar (0.8MPa)
