Products Description
Overview

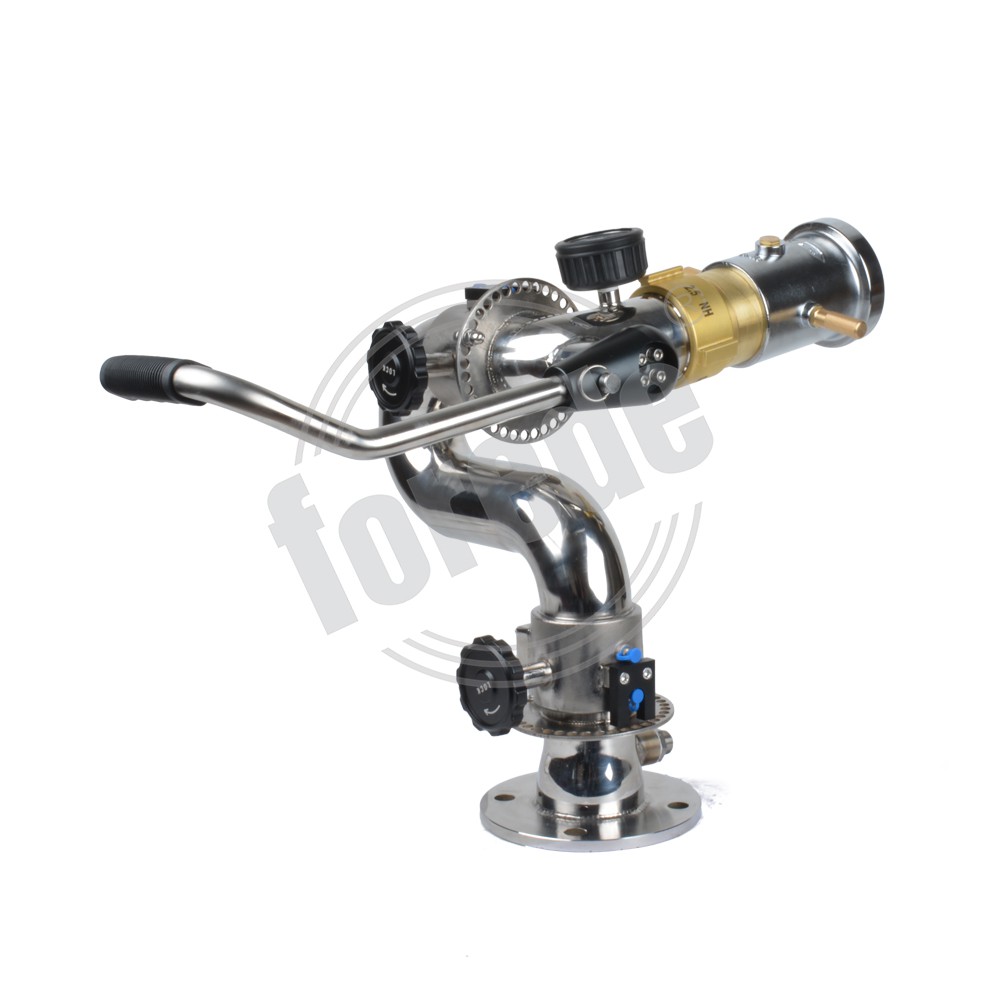

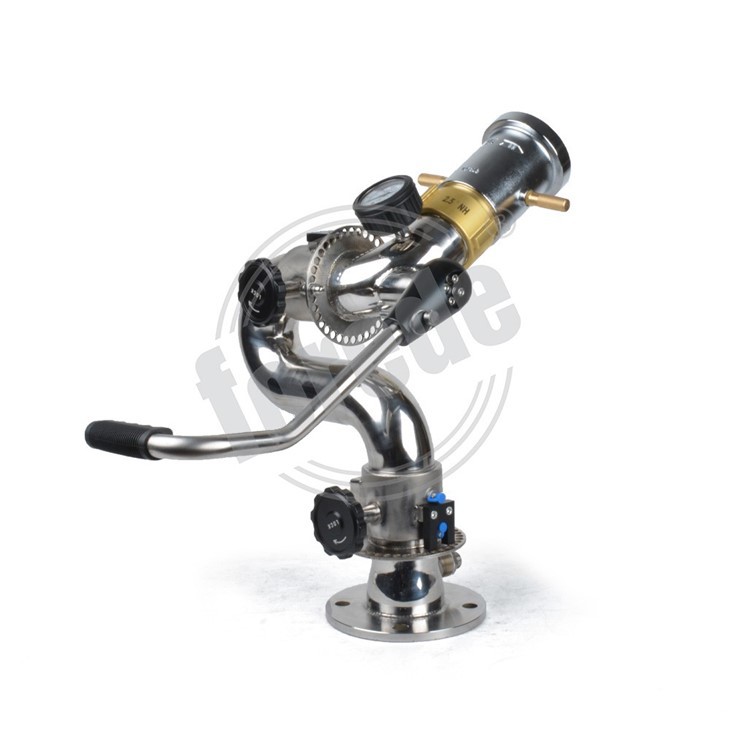

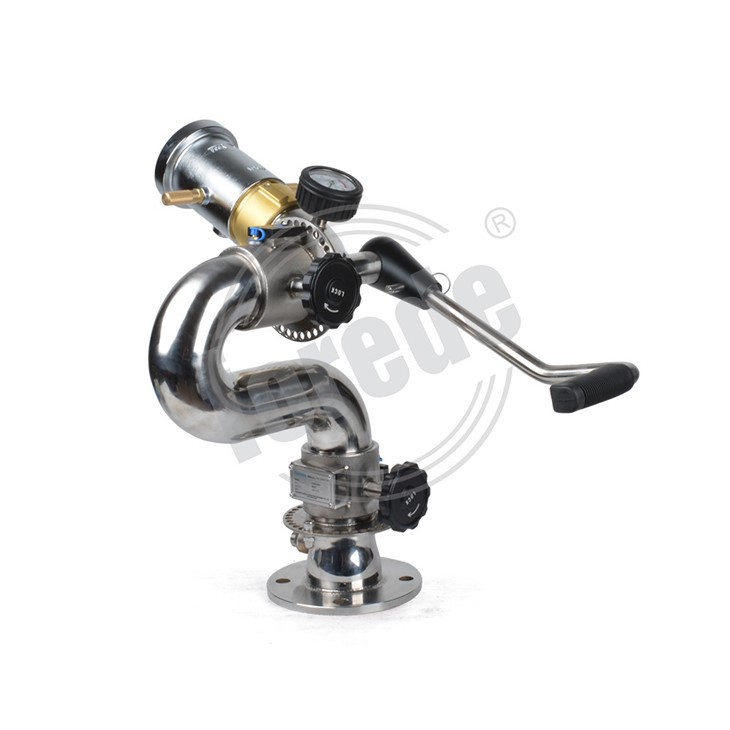

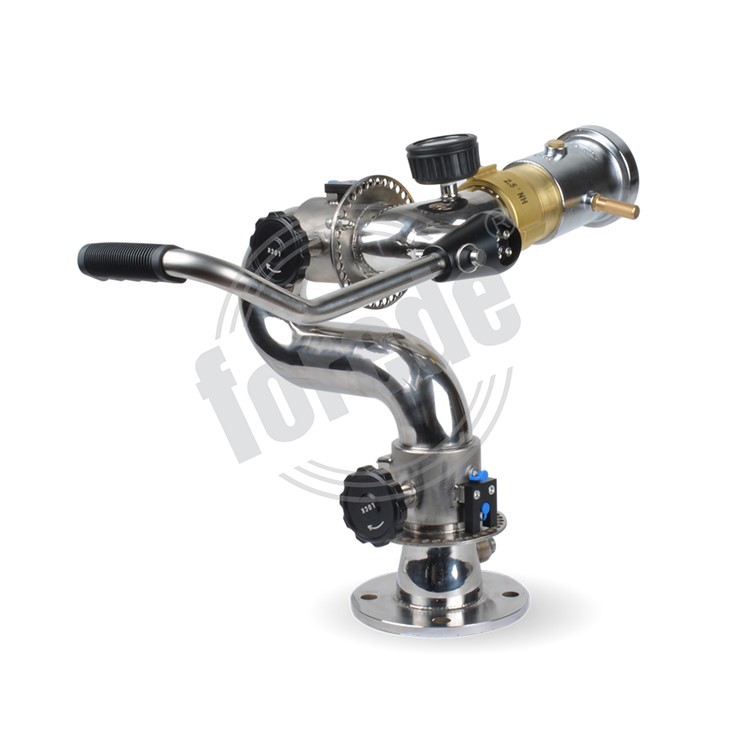

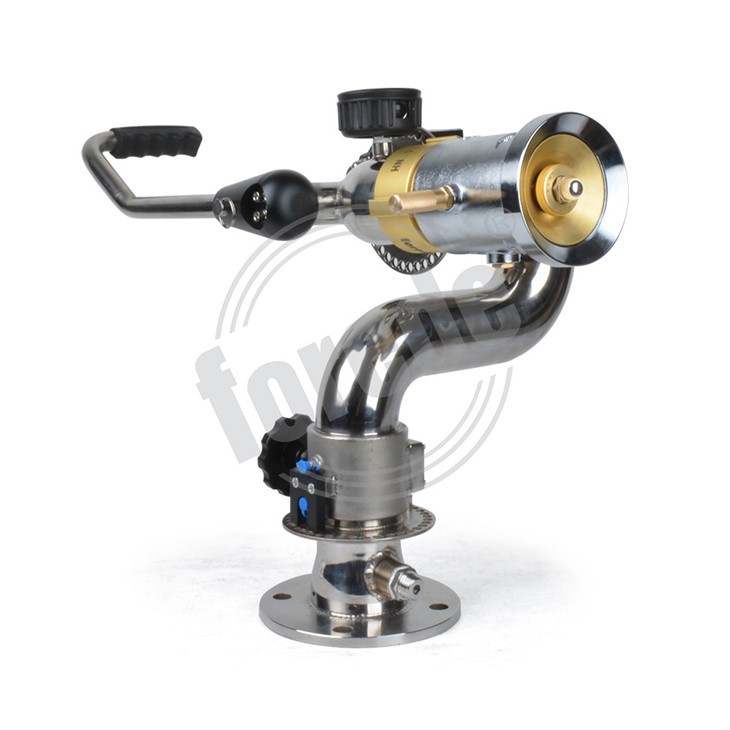

forede® TFS1.SS040 marine stainless steel water cannon with full 2.5" waterway provides flows of up to 20-30-40 LPS and can be used with a choice of forede monitor nozzles to suit a wide range of specific applications. With full 360° rotation capabilities and adjustable elevation of 90° above and 60° below the horizontal, TFS1.SS040 fixed station monitor is infinitely maneuverable via the wheels. Vertical and Horizontal quick-action locks allow the operator to fix the monitor swiftly to any position.
Commonly used in high-risk industrial areas such as:
Oil and gas facilities
Petrochemical plants
Tank farms
Power plants
Warehouses
Marine terminals
Aircraft hangars
Fire trucks and fire protection systems
Features
Product Name: Marine stainless steel water cannon
Flow Rate: 1200-1800-2400 LPM
Jetting Pattern: Straight stream, Fog
Max. Reach: 65 meters
Products Parameters
forede® marine stainless steel water cannon with different size and standard for option:
|
Model Number |
TFS1.SF020 | TFS1.SF020 | TFS1.SF030 | TFS1.SS040 | ||||||||||||
|
Flow Rate |
1200LPM | 1800LPM | 2400LPM | 1200-1800-2400LPM | ||||||||||||
|
Working Pressure |
8 Bar |
8 Bar | 8 Bar | 8 Bar | ||||||||||||
|
Max. Reach |
≥ 50 m | ≥ 60 m | ≥ 65 m | ≥ 50-65 m | ||||||||||||
|
Max Range Of Motion |
-45° to +75° Vertically, 330° Rotation, other degree available |
|||||||||||||||
|
Waterway Size |
2.5'' (DN65mm) | |||||||||||||||
|
Monitor Outlet |
2.5'' NH | |||||||||||||||
|
Monitor Inlet |
3''/4'' BS4504 PN16 Flange, others customized | |||||||||||||||
|
Material |
Monitor - SS304 Nozzle - SS304+Aluminium alloy |
|||||||||||||||
FAQ
Q: What material is this marine water cannon made of?
Main body is made of high grade 316 stainless steel, excellent salt water and corrosion resistance.
Q: Is it specially designed for marine use?
Yes, professional marine grade design, suitable for ships, offshore platforms and coastal facilities.
Q: What are the operation types available?
Mainly manual type, also electric remote control type for option.
Q: What connection type does it adopt?
Standard flange connection, common size DN80, DN100.
Q: Equipped with drain function?
Built-in automatic drain device, prevent frost crack and water residue.
