Products Description
Overview

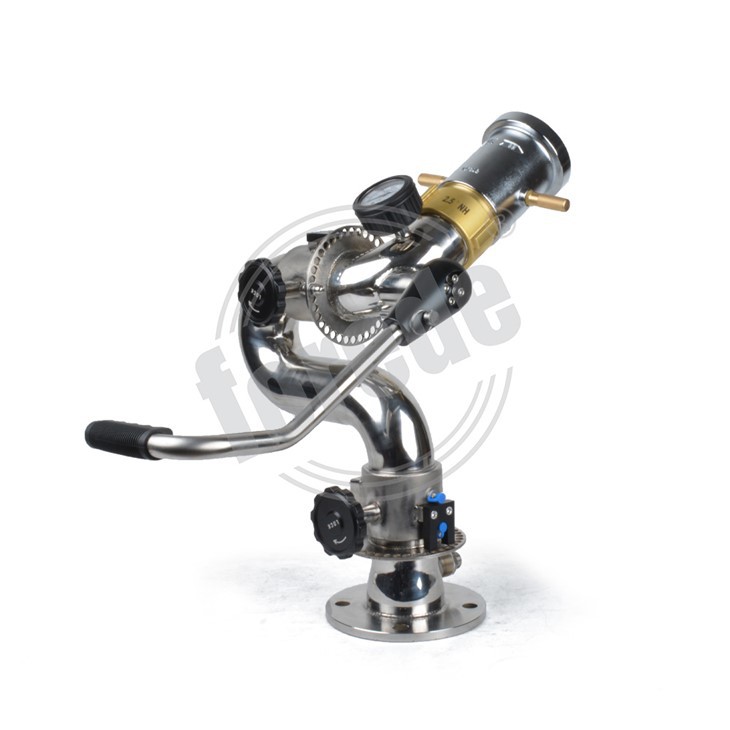

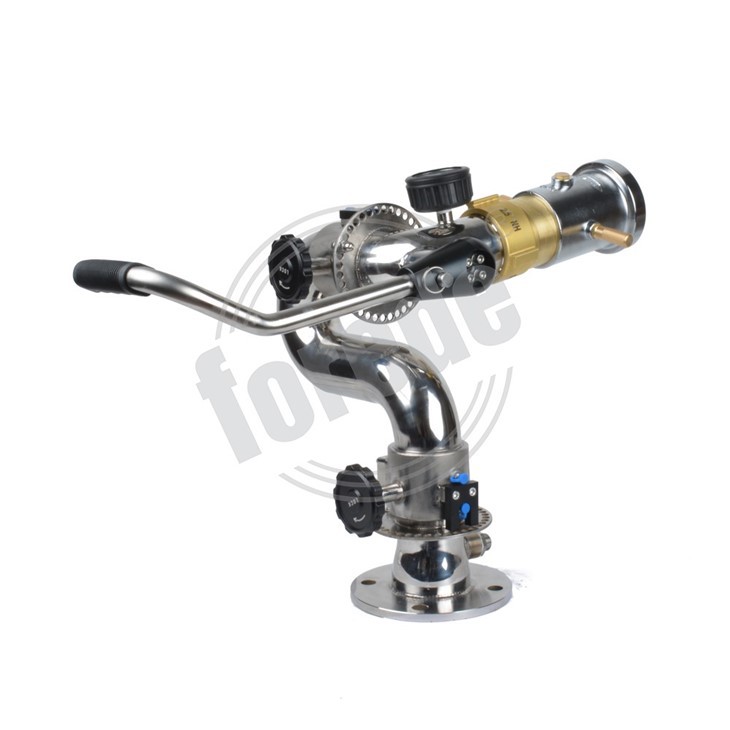

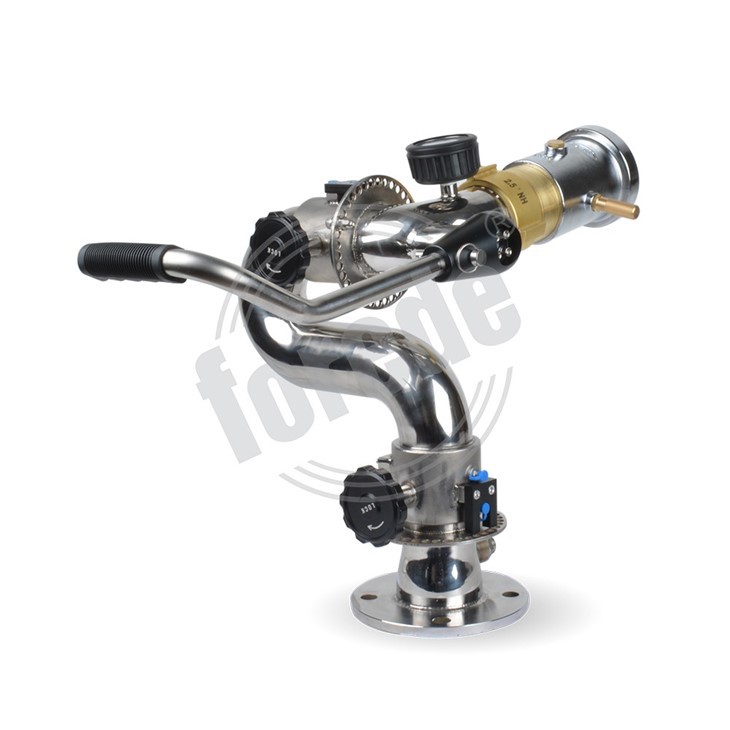

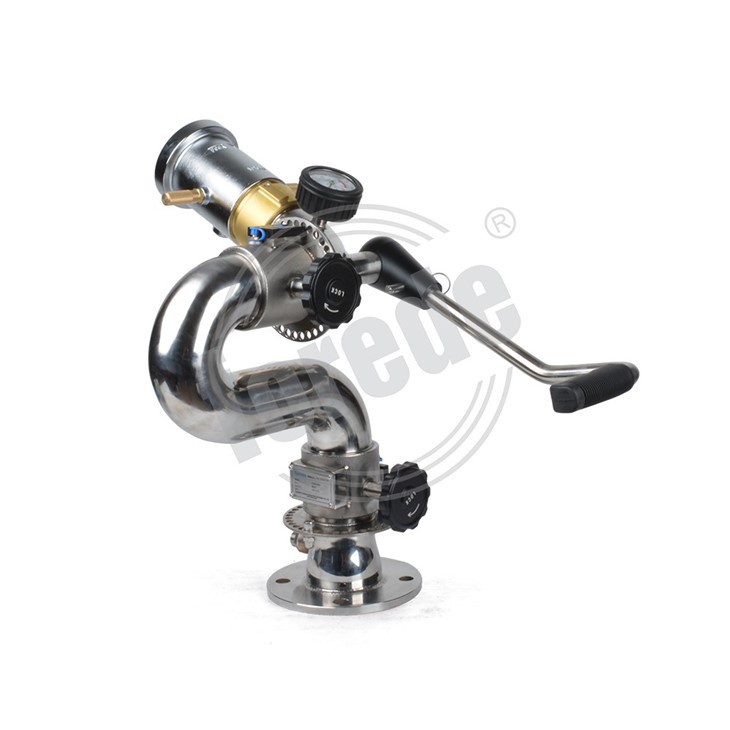

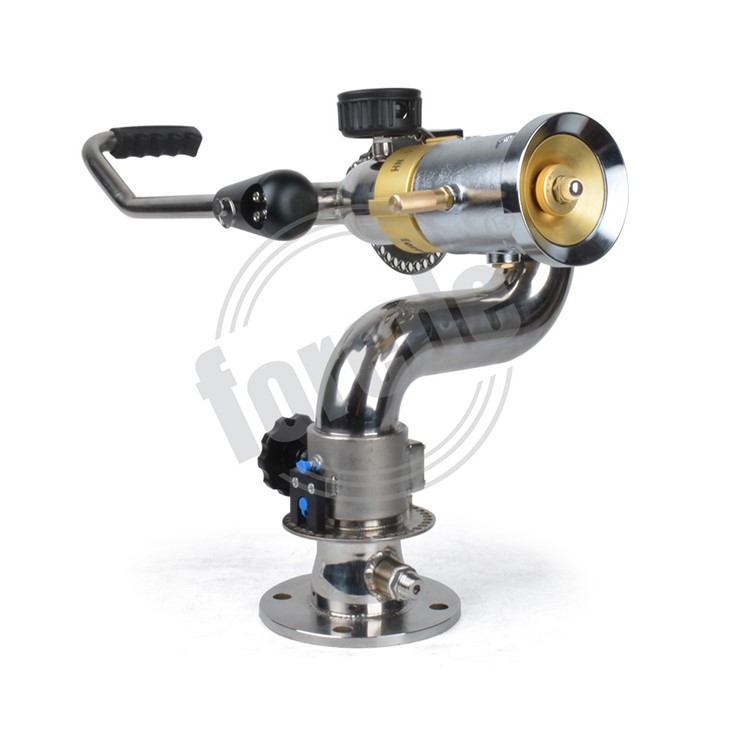

forede® TFS1.SS010 Stainless Steel 316 Manual Fire Monitor with full 2.5" waterway provides flows of up to 10 LPS and can be used with a choice of forede monitor nozzles to suit a wide range of specific applications. With full 360° rotation capabilities and adjustable elevation of 90° above and 60° below the horizontal, TFS1.SS010 fixed station monitor is infinitely maneuverable via the wheels. Vertical and Horizontal quick-action locks allow the operator to fix the monitor swiftly to any position.
Available in a choice of either Lever-Operated or Geared models the WFS1.SS040 fixed station monitor is easily operated under pressure and maximizes performance through an efficient flow-engineered design. It is available with either 3" or 4" ANSI 150lb Flanged inlets for use on fixed pipework.
Features
Product Name: Stainless Steel 316 Manual Fire Monitor
Flow Rate: 600 LPM
Jetting Pattern: Straight stream, Fog
Max. Reach: 35 meters
Products Parameters
forede® Stainless Steel 316 Manual Fire Monitor with different size and standard for option:
|
Model Number |
TFS1.SF020 | TFS1.SF020 | TFS1.SF030 | TFS1.SS040 | ||||||||||||
|
Flow Rate |
1200LPM | 1800LPM | 2400LPM | 1200-1800-2400LPM | ||||||||||||
|
Working Pressure |
8 Bar |
8 Bar | 8 Bar | 8 Bar | ||||||||||||
|
Max. Reach |
≥ 50 m | ≥ 60 m | ≥ 65 m | ≥ 50-65 m | ||||||||||||
|
Max Range Of Motion |
-45° to +75° Vertically, 330° Rotation, other degree available |
|||||||||||||||
|
Waterway Size |
2.5'' (DN65mm) | |||||||||||||||
|
Monitor Outlet |
2.5'' NH | |||||||||||||||
|
Monitor Inlet |
3''/4'' BS4504 PN16 Flange, others customized | |||||||||||||||
|
Material |
Monitor - SS304 Nozzle - SS304+Aluminium alloy |
|||||||||||||||
FAQ
Q: What is this fire monitor made of?
Full body adopts 316 stainless steel, anti-rust, anti-seawater corrosion, suitable for offshore, marine, chemical and coastal projects.
Q: Is it manual type?
Yes, purely manual operation by hand wheel, stable performance, no electric power needed.
Q: Common working pressure?
Standard working pressure: 1.0MPa, max test pressure: 1.6MPa.
Q: Adjustable spray mode?
Support straight jet & fog spray two modes, easy switch.
Q: Rotation angle range?
Horizontal 360° rotation, vertical pitching adjustable.
