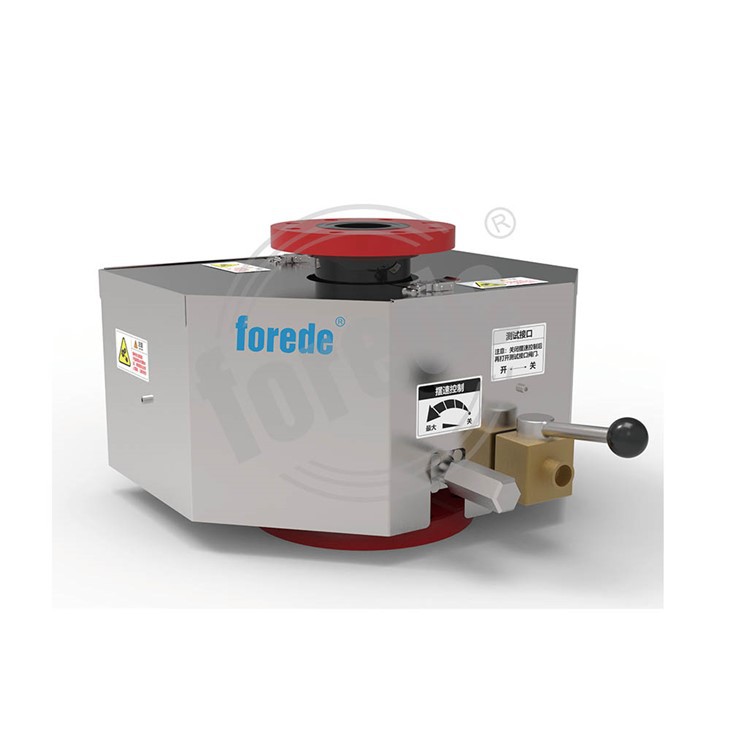

OSC100-SX Water-Powered Oscillating Device

OSC100-SX Water-Powered Oscillating Device
Product Introduction:
The FOREDE® Brand OSC100-SX Water-Powered Oscillating Device provides unparalleled performance with simple, yet rugged design features in a compact construction. The device is designed to provide an oscillating water or foam stream over a pre-set area of protection. The device can be supplied with FOREDE® monitor series, which are available with flow rate from 150 up to 1250 GPM (600 to 4800 LPM) at 50-145 psi (3.5-10 bar) inlet nominal working pressure to the device connection.
Send Inquiry
Description
Technical Parameters

DETAILS DESCRIPTION

1.Compact construction– 370 mm overall height with mounting base; 630 mm length; 445 mm width.

Simple set-up/adjustment device.

2.Made in hard anodized aluminum alloy and stainless steel 304 for superior corrosion resistance and wear.

3.Oscillating speed control lever used for easy and quick manual control oscillation.

4.Available equipped with FOREDE monitor series. Water monitor or foam monitor (self-educting or non self-educting); Handwheel Control or lever control optional based on requirements.



The specification please see following:

product-751-330





FAQ



Q:How long does it take to produce the product?

A: Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.



Q:Whether the product supports OEM customization

A:Yes. Please inform us formally before our production and confirm the design and other requirements firstly .



Q: What is the minimum order quantity of the product?

A:For conventional products, Low MOQ.



Q:Can I have a sample order?

A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.





Hot Tags: osc100-sx water-powered oscillating device, China, manufacturers, suppliers, wholesale, price, Fire Fighting Water Monitors, Foam Monitor System, Multi Purpose Fire Nozzles, Water Monitor Fire Fighting, Fire Water Monitor Fire Fighting, Elevated Fire Water Monitor

Features:
- Aluminium alloy construction,stainless steel cover;
- Easily transforms a manual monitor to a oscillating monitor;
- Totally water-powered,without any electricity power;
- Oscillating angle adjustable;
- 4 inch inlet and outlet flange;
- Flange standard: BS4504,ANSI150,GB,etc.
