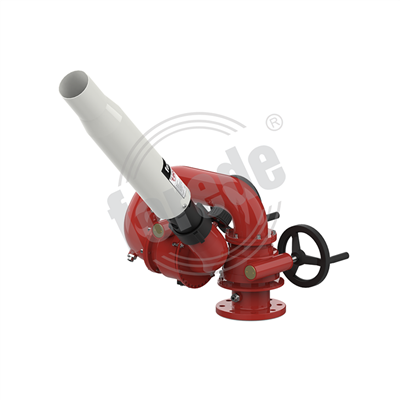

SS304 Fire Manual Monitor

1. **Installation and Inspection**
- Ensure the fire monitor is securely installed on a stable base or vehicle mount.
- Inspect the waterway and connections for any leaks or obstructions.
- Confirm the nozzle is clean and free of debris to ensure optimal performance.

2. **Connecting the Water Supply**
- Attach the water hose securely to the inlet valve.
- Gradually open the valve to allow water to flow into the monitor.
- Check for any irregularities or pressure drops during initial water flow.

3. **Adjusting Flow Rate and Pressure**
- Select the appropriate model based on the required flow rate for your firefighting needs.
- Make sure the working pressure does not exceed 1.6 MPa to maintain safety.
- Use the built-in controls to adjust the flow rate-models like WFS1.SS040 allow for adjustable flow between 1200 LPM and 2400 LPM.

4. **Aiming the Monitor**
- Use the horizontal angle adjustment (0°~330°) to direct the stream towards the fire.
- Adjust the elevation angle from -45° up to +75° to control the height and distance of the water or foam stream.
- Customize angles as necessary to effectively cover the fire area while maximizing reach.

5. **Operating the Nozzle**
- Activate the nozzle and steadily spray water or foam foam solution as needed.
- Monitor the throw range, which can be up to 65 m for water or 60 m for foam, ensuring targeted application.
- Maintain consistent pressure to optimize firefighting effectiveness.

6. **Shutting Down**
- Gradually close the water supply valve after the operation finishes.
- Release any remaining pressure from the system safely.
- Inspect and clean the monitor post-use to ensure longevity and readiness for next deployment.

---

### Advantages of Using SS304 Fire Manual Monitor

- **Durability:** Constructed with high-quality SS304 stainless steel, resistant to corrosion and wear.
- **Versatility:** Suitable for water and foam applications, adaptable flow rates and angles fit numerous firefighting environments.
- **Effective Reach:** Impressive throw ranges contribute to quick and efficient fire suppression while keeping operators safe.
- **Ease of Use:** Smooth and precise adjustment mechanisms enable quick response in emergency situations.
