Products Description
Tiller Control Fire Hydrant Water Monitor
Forede fixed fire water monitor with tiller handle has constant nozzle, either 1200LPM or 1800LPM. The constant nozzle of fixed fire water monitor with tiller handle has a long mouth, the flow can jet far and concentratedly so that the monitor can put fire out quickly and powerfully. The inlet standard and size is various, also can customized. The motion range of vertical can from -45°to +75°,and the horizontal can reach 360. Fixed fire water monitor with two lock for vertical and horizontal stablization.
Technical Parameter
| Model Number | PS8/20-C | PS8/30-C |
| Flow Rate | 1200LPM | 1800LPM |
| Working Pressure | 8 bar | 8 bar |
| Max. Reach @ 8 bar | 50 meters | 60 meters |
|
Max Range Of Motion
|
-45° to +75° Vertically, 360° Rotation
|
|
|
Waterway Size
|
2.5"(65mm)
|
|
|
Monitor Outlet
|
2.5" (65mm) NH male thread
|
|
|
Monitor Inlet
|
Flange 3" BS4504 is standard ( other sizes & standards are available )
|
|
|
Material
|
Monitor & Nozzle - Hard coated anodized aluminium alloy
Tiller - SS304 Stainless steel
|
|

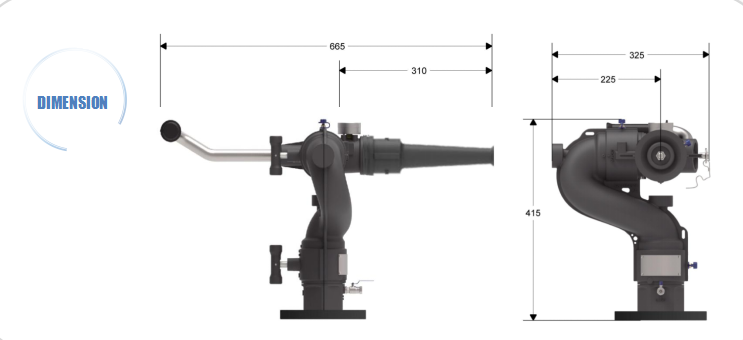

Dimension
FAQ
Q: When will make delivery ?
A: Delivery Time
-Sample Order: 1-3 days after receipt of the full payment.-
Stock Order: 3-7days after receipt of the full payment
-OEM Order: 12-20days after receipt of the deposit.
3.After-sales Service
5 year warranty for all kinds of products;
lf you find any defective accessories first time, we will give you the new parts for free to replace in thenext order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
Q: What's the MOQ of your products?
A:Our MOQ is one (1) piece/set.
Q:What about the lead time?
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q:How long does it take to produce the product?
A: Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Order Information
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Contact Us
Email:
sales4@forede.com
Phone
+86 18750638978 (Wendy)
Address:
NO.278-1, MEITING VILLAGE, MEILIN SUB-DISTRICT
NAN'AN CITY, QUANZHOU CITY
FUJIAN PROVINCE
CHINA
Recommend Product
Hot Tags: tiller control fire hydrant water monitor, China, manufacturers, suppliers, wholesale, price, Angle Thread Landing Valve, Air Foam Chamber, Fire Alarm Valve, Manual Foam Monitor, Fire Truck Water Cannon, Wireless Fire Monitor
1) Aluminium alloy construction,hard coated anodized;
2) Flow Rate:Constant or Selectable 20 - 30 - 40 LPS;
3) Jetting Pattern: Straight stream;
4) 360° rotation horizontally; -45° to +75° elevate vertically;
5) Flange standard: BS4504,ANSI150,GB,etc.
