Products Description
Overview
forede® XFS2.AP080 electric aspirating foam monitor operates by receiving a premixed foam solution (water + foam concentrate) from a foam proportioning system. As the solution passes through the aspirating nozzle, ambient air is drawn in through air-intake openings and mixed with the foam solution, producing expanded foam.
Electric motors control the horizontal rotation (pan) and vertical movement (tilt) of the monitor, allowing operators to accurately target fire sources from a safe distance. The discharged foam forms a stable blanket that suppresses flames, cools surfaces, and prevents re-ignition.
Products Specifications
|
Model Number
|
XFS2.AP024 | XFS2.AP032 | XFS2.AP040 |
|
Flow Rate
|
1440LPM | 1920LPM | 2400LPM |
|
Working Pressure
|
8 bar | 8 bar | 8 bar |
|
Water Max. Reach @ 8 bar
|
45 meters | 55 meters | 60 meters |
|
Foam Max. Reach @ 8 bar
|
40 meters | 50 meters | 55 meters |
|
Max Range Of Motion
|
-90° to +90° Vertically, 360° Rotation,other degree available
|
||
|
Turing Speed
|
24°/Second rotation,10°/Second vertical
|
||
|
Power Supply
|
DC 24V is standard
|
||
|
Power Consumption
|
24V @ 7.5A
|
||
|
Waterway Size
|
2.5" (65mm)
|
||
|
Monitor Outlet
|
2.5" (65mm) NH
|
||
|
Monitor Inlet
|
Flange 2.5" ANSI 150# is standard,other size and standard available
|
||
|
Material
|
Monitor & Nozzle- Hard coated anodized aluminium alloy
|
||
|

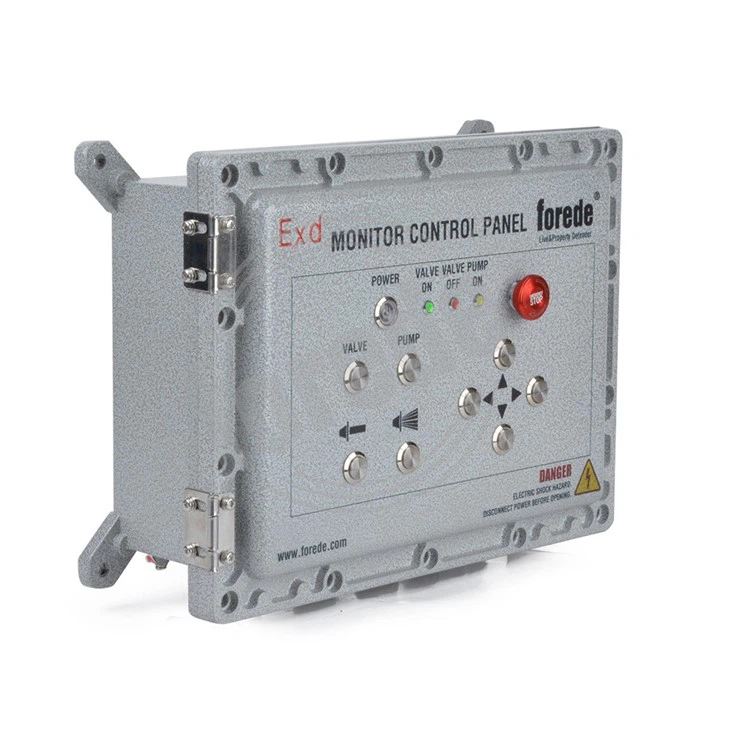

Control System
|
ICS-EX-01 or VMCS-01
|
||
FAQ
Q: What are the main advantages of electric control?
Remote and precise operation
Fast and flexible response
Reduced manpower requirement
Safe operation in hazardous or high-temperature areas
Easy integration with fire alarm or control systems
Q: What types of foam can be used?
Electric aspirating foam monitors are compatible with:
AFFF
AR-AFFF
Protein foam
Fluoroprotein foam
Synthetic foam
Foam type selection depends on fire risk and system design.
Q: Where are electric aspirating foam monitors commonly used?
Typical application scenarios include:
Oil refineries and petrochemical plants
Tank farms and loading terminals
Aircraft hangars
LNG/LPG facilities
Chemical storage areas
Power plants and industrial warehouses
Q: What materials are typically used?
Common materials include:
Cast aluminum alloy
Stainless steel (304 / 316)
Carbon steel with anti-corrosion coating
Material selection depends on environmental conditions and corrosion risk.
