Technical Parameter
| Model |
PLKD8/32-Y
|
PLKD8/48-Y
|
PLKD10/64-Y
|
| Flow Rate |
1920 LPM
|
2880 LPM | 3840 LPM |
|
Water Max. Reach
|
60 meters
|
75 meters
|
75 meters
|
|
Foam Max. Reach
|
48 meters | 70 meters | 65 meters |
| Working Pressure | 8 Bar | 10 Bar | |
|
Max Range Of Monitor
|
-90° to +90° Vertically, 340° Rotation,other degree available
|
||
|
Power Supply
|
DC 24V is standard
|
||
|
Power Consumption
|
≤200W | ||
|
Waterway Size
|
3" (80mm)
|
||
|
Monitor Outlet
|
2.5" (65mm)NH | ||
|
Monitor Inlet
|
Flange 4" ANSI 150# is standard,other size and standard available
|
||
|
Material
|
Monitor - SS304 Stainless Steel
Nozzle - Hard coated anodized aluminium alloy
|
||
|
Control System
|
ICS-01 or VMCS-01
|
||
A REMOTE CONTROL FIRE WATER FOAM MONITOR is an advanced firefighting tool that is necessary for extinguishing large-scale fires effectively. It is a high-pressure water nozzle mounted on an automated, remotely-controlled system. The monitor can deliver water and foam at very high rates in a concentrated stream that can reach a fire from long distances. The device allows operators to fight fires from a safe distance to avoid putting themselves in danger.
The REMOTE CONTROL FIRE WATER FOAM MONITOR is a valuable asset to firefighting teams because it allows them to extinguish fires at a faster rate and with greater control than traditional firefighting tools. These monitors are used in a variety of settings, such as industrial facilities, ports, and petrochemical plants. They can also be deployed in emergency situations like forest fires, oil spills, and natural disasters where water systems are not available.
01
Enhanced Safety
The remote-controlled feature of the fire water foam monitor allows the firefighters to operate the system from a safe distance. It eliminates the need for them to enter the area where the fire is raging, thus reducing the risk of injuries and accidents.
02
Efficient Performance
The monitor is equipped with advanced technology, ensuring that it delivers optimal performance. It is designed to provide a steady stream of water or foam, which can be directed towards the fire, extinguishing it quickly and effectively.
03
Versatility
The fire water foam monitor can be used for a range of applications, including industrial fires, oil spills, and natural disasters. It is a versatile tool that can handle various types of fire hazards, making it an essential asset to any firefighting team.
04
Flexibility
The monitor can be easily moved and positioned in different angles, making it highly adaptable to various settings. It can be mounted on vehicles, boats, or stationary structures, providing flexibility in how it can be used effectively.

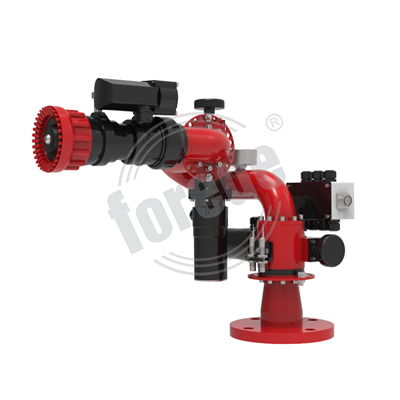

forede® Fire Monitor System Series
