Product Introduction:

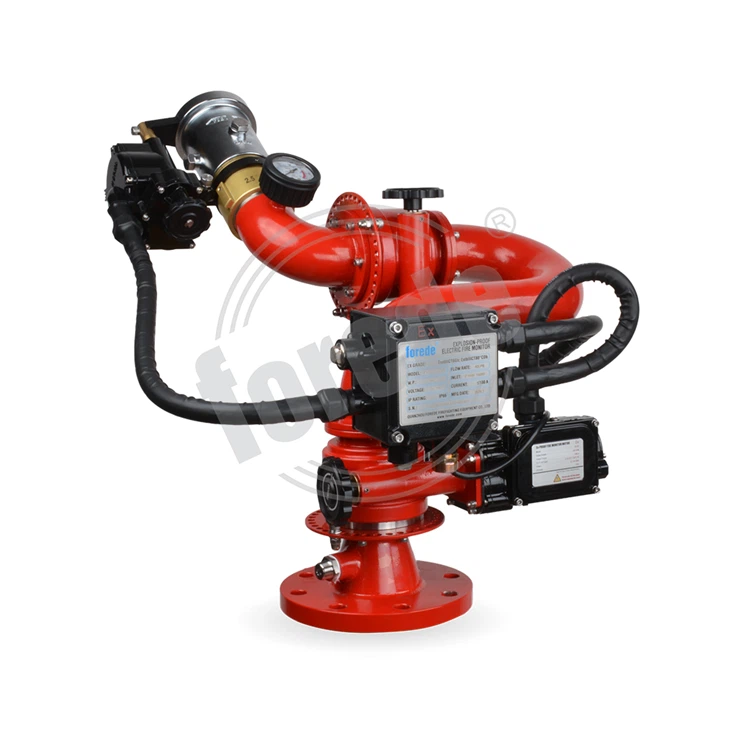

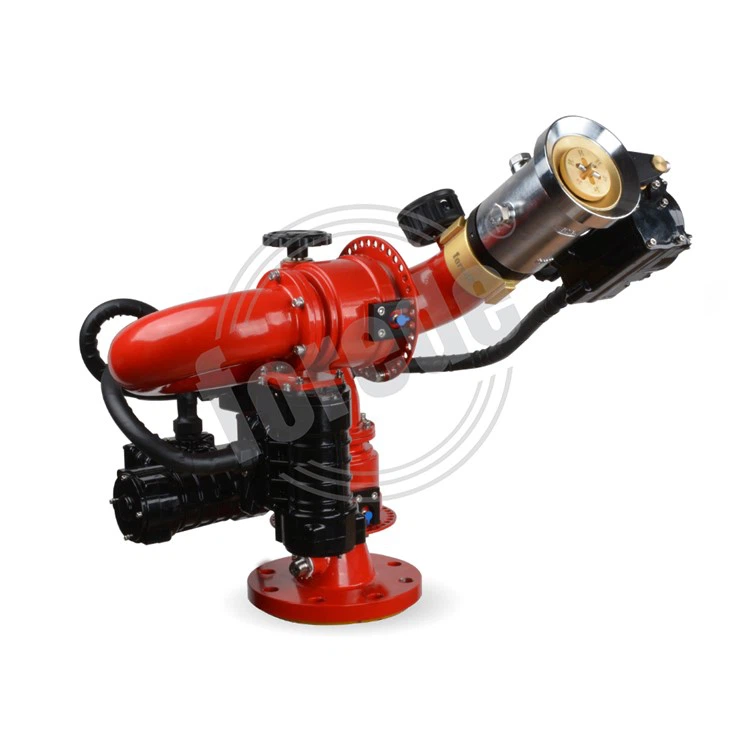

Fire fighting monitor is a device used to extinguish fires from a safe distance. It is typically mounted on a high platform or a specialized vehicle and operates using pressurized water or fire extinguisher agents. With its ability to spray large volumes of water or foam, it provides firefighters with a critical tool for effectively controlling fires. Firefighting monitors are an important part of firefighting equipment and play a crucial role in saving lives and protecting property.
Send Inquiry
Description
Technical Parameters
  Technical Parameter
Flow Rate
1200LPM Constant Flow 1800LPM Constant Flow
Working Pressure
8 Bar
Max. Reach
50 meters
60 meters
Max. Fog Angle
120°
Max Range Of Monitor
-90° to +90° Vertically, 340° Rotation,other degree available
Power Supply
DC 24V is standard
Power Consumption
24V @ 7.5A
Waterway Size
2 1/2" (65mm)
Monitor Outlet
2 1/2" (65mm) NH male thread
Monitor Inlet
Flange 2.5" ANSI 150# is standard,other size and standard available
Material
Monitor - SS304
Control System
ICS-EX-01 or VMCS-01
